2nd Gen Chevrolet Tracker High Clearance Front Bumper Kit
1999-2005
Chevrolet 1999-2005 CO9129Product ID: 1586
Create an account to put this in your wishlist.
Go to wishlistCreate an account to put this in your wishlist.
2nd Gen Chevrolet Tracker High Clearance Front Bumper Kit
1999-2005
Chevrolet 1999-2005 CO9129Product ID: 1586
Ships within 3-10 business days with 2 day shipping
Ships within 3-10 business days with 2 day shipping
Choose
your variation
4.6
( 215 Google reviews)
This is a high clearance DIY weld-together winch bumper kit for the 1999-2005 Chevrolet Tracker. It features a bolt-on design, protected winch mount, LED pod light mounts and one of the best approach angles of any bumper on the market. This bumper allows you to forget about approach angle and substantially improves the offroad capability of your Chevrolet Tracker. It offers excellent protection from rocks, trees and animal strikes and has been kept to a weight of 74lbs (steel version) through careful design work.

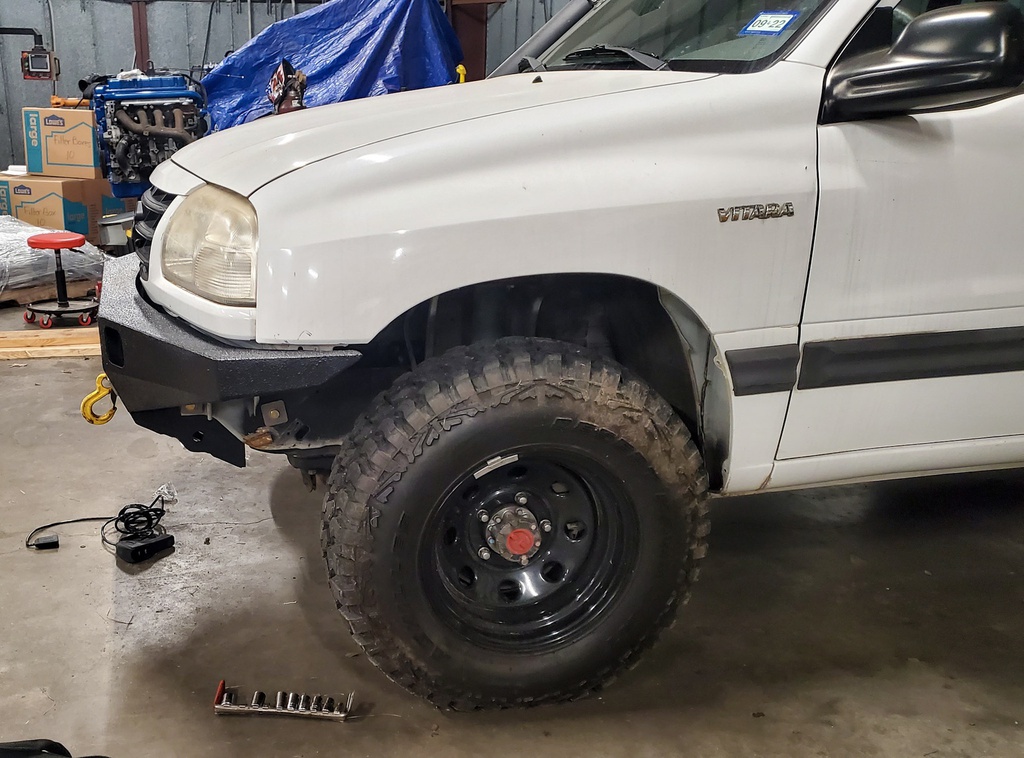

The profile of this bumper has been designed with maximum ground clearance and approach angles put first. The bumper sits as high and tight to the front of the Tracker as possible, while the angled lower faces will smoothly slide over obstacles and ensure you do not get hung up on the trail. The side wings of this bumper wrap around to the front wheel wells and tie directly into the main frame mounting plates for true offroad protection. These side wings will take a serious hit without flexing or deflecting into the vehicle body. We know that many Tracker owners want to run oversized tires along with long arm suspension kits that extend the wheelbase of the vehicle. This moves the front tires further forwards and often creates interference issues with the stock front bumper. We have thought ahead and specifically designed these bumper side wings to clear 33" tires with a long arm suspension kit.

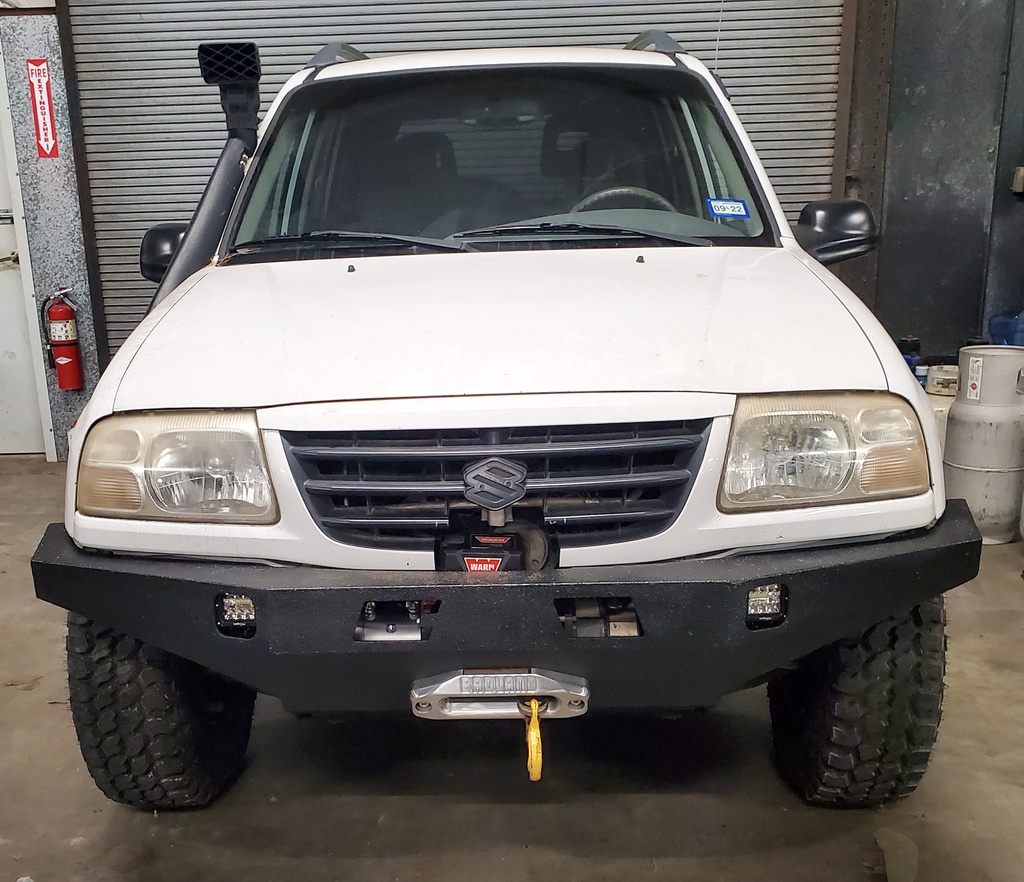

We finished this bumper off with integrated light buckets for surface mount LED pod lights (custom light cut outs available by request), an integrated winch mount to accept all standard 8-12k lb winches, and heavy duty 9/16" recovery points that are placed directly in line with the Tracker frame to eliminate any leveraging effects. These recovery points are formed by laser cut steel plates that pass through the bumper shell and bolt directly to the Tracker frame as part of the bumper's main mounting brackets. The recovery points then get welded to the in and outside of the bumper shell. These factors all combine to form recovery points that minimize stress on your Tracker's frame and are essentially indestructible! What could make this bumper even better? The low profile design has resulted in very reasonable weights of 74lbs for the steel bumper and 36lbs for the aluminum version. Considering that this bumper replaces your factory bumper cover and steel inner-bumper bar, the resulting weight increase to your Tracker is minimal. This minimizes added stress on your vehicle, maintains precious payload capacity, and allows you to keep your factory suspension if desired.
DIY Weld-together kit - This bumper arrives as precision CNC-laser cut pieces that you then weld together (detailed assembly instructions included)
Low profile design is engineered to provide maximum ground clearance and complement the factory body lines - this bumper protrudes less than 2" from the center of the grill!
Heavy duty 3/16" plate steel construction for maximum offroad strength and durability
Optional 1/4" 5052 aluminum for a lightweight yet very durable overlanding setup (38lb weight savings)
Bolts directly to frame using 4 heavy duty 1/2" mounting points
Protected winch mount fits all 8000-10,000lb winches with removable solenoids (Also fits some 12,000lb models)
Reinforced 9/16" thick clevis mounts allow the use of 3/4" D-Rings and pull directly off of the frame for confident recoveries of heavily loaded vehicles
Two Integrated LED pod mounts – slotted mounting tabs give tons of adjustment to fit just about any 3x3 surface mount pod light
Integrated license plate mount

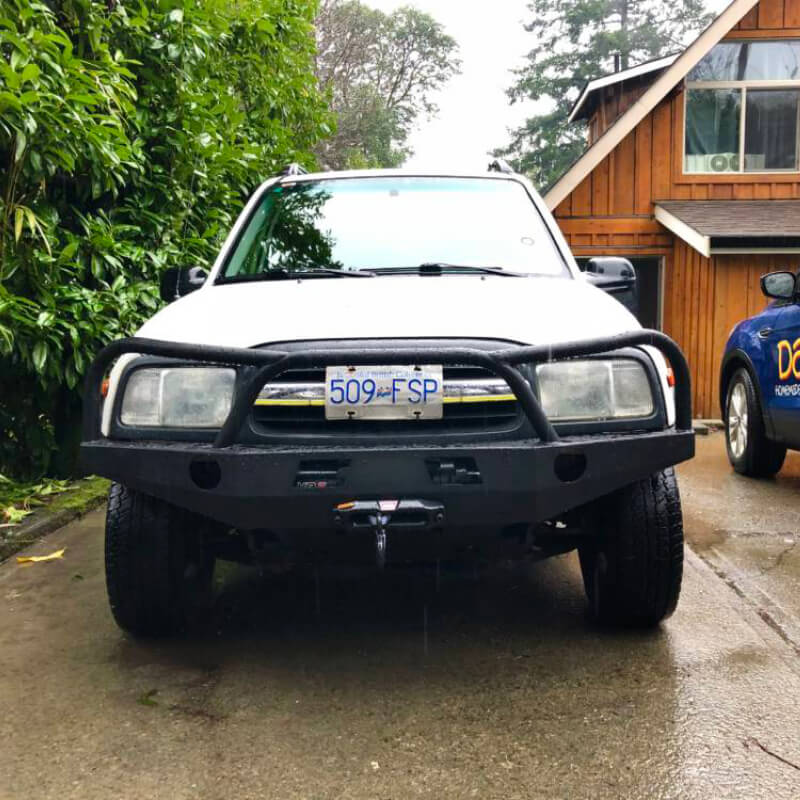

Optional heavy duty grill and headlight tubing for added protection
2nd Gen Chevrolet Tracker High Clearance Front Bumper Kit
1999-2005 1999-2005
AUD$ 986.45Product ID: 1586
2nd Gen Chevrolet Tracker Low Profile Rear Bumper Kit
AUD$ 983.42
Product overview
This is a high clearance DIY weld-together winch bumper kit for the 1999-2005 Chevrolet Tracker. It features a bolt-on design, protected winch mount, LED pod light mounts and one of the best approach angles of any bumper on the market. This bumper allows you to forget about approach angle and substantially improves the offroad capability of your Chevrolet Tracker. It offers excellent protection from rocks, trees and animal strikes and has been kept to a weight of 74lbs (steel version) through careful design work.
The profile of this bumper has been designed with maximum ground clearance and approach angles put first. The bumper sits as high and tight to the front of the Tracker as possible, while the angled lower faces will smoothly slide over obstacles and ensure you do not get hung up on the trail. The side wings of this bumper wrap around to the front wheel wells and tie directly into the main frame mounting plates for true offroad protection. These side wings will take a serious hit without flexing or deflecting into the vehicle body. We know that many Tracker owners want to run oversized tires along with long arm suspension kits that extend the wheelbase of the vehicle. This moves the front tires further forwards and often creates interference issues with the stock front bumper. We have thought ahead and specifically designed these bumper side wings to clear 33" tires with a long arm suspension kit.
We finished this bumper off with integrated light buckets for surface mount LED pod lights (custom light cut outs available by request), an integrated winch mount to accept all standard 8-12k lb winches, and heavy duty 9/16" recovery points that are placed directly in line with the Tracker frame to eliminate any leveraging effects. These recovery points are formed by laser cut steel plates that pass through the bumper shell and bolt directly to the Tracker frame as part of the bumper's main mounting brackets. The recovery points then get welded to the in and outside of the bumper shell. These factors all combine to form recovery points that minimize stress on your Tracker's frame and are essentially indestructible! What could make this bumper even better? The low profile design has resulted in very reasonable weights of 74lbs for the steel bumper and 36lbs for the aluminum version. Considering that this bumper replaces your factory bumper cover and steel inner-bumper bar, the resulting weight increase to your Tracker is minimal. This minimizes added stress on your vehicle, maintains precious payload capacity, and allows you to keep your factory suspension if desired.
DIY Weld-together kit - This bumper arrives as precision CNC-laser cut pieces that you then weld together (detailed assembly instructions included)
Low profile design is engineered to provide maximum ground clearance and complement the factory body lines - this bumper protrudes less than 2" from the center of the grill!
Heavy duty 3/16" plate steel construction for maximum offroad strength and durability
Optional 1/4" 5052 aluminum for a lightweight yet very durable overlanding setup (38lb weight savings)
Bolts directly to frame using 4 heavy duty 1/2" mounting points
Protected winch mount fits all 8000-10,000lb winches with removable solenoids (Also fits some 12,000lb models)
Reinforced 9/16" thick clevis mounts allow the use of 3/4" D-Rings and pull directly off of the frame for confident recoveries of heavily loaded vehicles
Two Integrated LED pod mounts – slotted mounting tabs give tons of adjustment to fit just about any 3x3 surface mount pod light
Integrated license plate mount
Optional heavy duty grill and headlight tubing for added protection
Key specifications
This is a high clearance DIY weld-together winch bumper kit for the 1999-2005 Chevrolet Tracker. It features a bolt-on design, protected winch mount, LED pod light mounts and one of the best approach angles of any bumper on the market. This bumper allows you to forget about approach angle and substantially improves the offroad capability of your Chevrolet Tracker. It offers excellent protection from rocks, trees and animal strikes and has been kept to a weight of 74lbs (steel version) through careful design work.
The profile of this bumper has been designed with maximum ground clearance and approach angles put first. The bumper sits as high and tight to the front of the Tracker as possible, while the angled lower faces will smoothly slide over obstacles and ensure you do not get hung up on the trail. The side wings of this bumper wrap around to the front wheel wells and tie directly into the main frame mounting plates for true offroad protection. These side wings will take a serious hit without flexing or deflecting into the vehicle body. We know that many Tracker owners want to run oversized tires along with long arm suspension kits that extend the wheelbase of the vehicle. This moves the front tires further forwards and often creates interference issues with the stock front bumper. We have thought ahead and specifically designed these bumper side wings to clear 33" tires with a long arm suspension kit.
We finished this bumper off with integrated light buckets for surface mount LED pod lights (custom light cut outs available by request), an integrated winch mount to accept all standard 8-12k lb winches, and heavy duty 9/16" recovery points that are placed directly in line with the Tracker frame to eliminate any leveraging effects. These recovery points are formed by laser cut steel plates that pass through the bumper shell and bolt directly to the Tracker frame as part of the bumper's main mounting brackets. The recovery points then get welded to the in and outside of the bumper shell. These factors all combine to form recovery points that minimize stress on your Tracker's frame and are essentially indestructible! What could make this bumper even better? The low profile design has resulted in very reasonable weights of 74lbs for the steel bumper and 36lbs for the aluminum version. Considering that this bumper replaces your factory bumper cover and steel inner-bumper bar, the resulting weight increase to your Tracker is minimal. This minimizes added stress on your vehicle, maintains precious payload capacity, and allows you to keep your factory suspension if desired.
DIY Weld-together kit - This bumper arrives as precision CNC-laser cut pieces that you then weld together (detailed assembly instructions included)
Low profile design is engineered to provide maximum ground clearance and complement the factory body lines - this bumper protrudes less than 2" from the center of the grill!
Heavy duty 3/16" plate steel construction for maximum offroad strength and durability
Optional 1/4" 5052 aluminum for a lightweight yet very durable overlanding setup (38lb weight savings)
Bolts directly to frame using 4 heavy duty 1/2" mounting points
Protected winch mount fits all 8000-10,000lb winches with removable solenoids (Also fits some 12,000lb models)
Reinforced 9/16" thick clevis mounts allow the use of 3/4" D-Rings and pull directly off of the frame for confident recoveries of heavily loaded vehicles
Two Integrated LED pod mounts – slotted mounting tabs give tons of adjustment to fit just about any 3x3 surface mount pod light
Integrated license plate mount
Optional heavy duty grill and headlight tubing for added protection
