2nd Gen Suzuki Vitara Low Profile Rear Bumper Kit

Suzuki Vitara/Grand Vitara

1999-2005

Suzuki Suzuki Vitara/Grand Vitara CO23392

ID product: 1594

AUD$ 899.61

Choose
your variation

  • Body Lift Adjustment (NOT suspension lift)
      Choose an option
    • 1" Body Lift

      The 1" body lift option is only for if you have a 1" body lift installed on your vehicle. If you have any type of suspension lift (coilovers, new shocks and coils, spacer lifts, leveling kits, etc) you will want to select the "no body lift" option.

      Price: + AUD$ 38.64

    • 1.5" Body Lift

      The 1.5" body lift option is only for if you have a 1.5" body lift installed on your vehicle. If you have any type of suspension lift (coilovers, new shocks and coils, spacer lifts, leveling kits, etc) you will want to select the "no body lift" option.

      Price: + AUD$ 54.34

    • 2" Body Lift

      The 2" body lift option is only for if you have a 2" body lift installed on your vehicle. If you have any type of suspension lift (coilovers, new shocks and coils, spacer lifts, leveling kits, etc) you will want to select the "no body lift" option.

      Price: + AUD$ 78.49

    • 3" Body Lift

      The 3" body lift option is only for if you have a 3" body lift installed on your vehicle. If you have any type of suspension lift (coilovers, new shocks and coils, spacer lifts, leveling kits, etc) you will want to select the "no body lift" option.

      Price: + AUD$ 102.64

  • Cree LED Lights
      Choose an option
    • Two 24W Cree LED Pod Lights

      Includes two 24W 2300 Lumen CREE LED Lights with a spot/flood combo beam pattern and great adjustability. Simply splice them into your existing factory fog light wiring for an easy install that keeps your factory fog light switch

      Price: + AUD$ 106.26

    • Two 40W Cree LED Pod Lights

      Includes two 40W 3800 Lumen CREE LED Lights with a spot beam pattern and great adjustability. Simply splice them into your existing factory fog light wiring for an easy install that keeps your factory fog light switch

      Price: + AUD$ 143.69

    • Two 24W Cree LED Pod Lights with Full Wiring Harness and Switch

      Includes two 24W 2300 Lumen CREE LED Lights with a spot/flood combo beam pattern and great adjustability. Includes full wiring harness with switch, relay and industry-standard DT connectors

      Price: + AUD$ 150.94

    • Two 40W Cree LED Pod Lights with Full Wiring Harness and Switch

      Includes two 40W 3800 Lumen CREE LED Lights with a spot beam pattern and great adjustability. Includes full wiring harness with switch, relay and industry-standard DT connectors

      Price: + AUD$ 190.79

  • Material
      Choose an option
    • Steel

      Our steel bumpers are constructed out of 3/16” thick P&O hot rolled steel, NOT cheaper mild steel. Compared to aluminum, steel provides high strength and durability and is easier to weld. It also comes in at a pricepoint much lower than aluminum

      Price: + AUD$ 0.00

    • Aluminum

      Our aluminum bumpers are constructed out of ¼” thick 5052 aluminum. Aluminum provides great corrosion resistance and substantial weight savings over steel. While it is still very strong and durable, it will sustain dents and scratches easier than steel if you like to play hard in the rocks

      Price: + AUD$ 1,159.20

  • Swing Out Carrier
      Choose an option
    • Single Swing Out Carrier

      This option gives you a single swing arm with space to mount a full size spare tire and tabs suitable for mounting a hilift jack and other recovery gear. This swing arm spans roughly 2/3 of the width of the rear hatch/ tailgate. This option does not include our dual gas can holder.

      Price: + AUD$ 784.88

  • Recessed Hitch Receiver
      Choose an option
    • No

      "If you select this option, your bumper will not come with any hitch receiver. Most of our bumpers are designed with flat bottoms to maintain compatibility with the factory hitch receiver but some models may lose significant ground clearance (please confirm with us for your specific vehicle model) "

      Price: + AUD$ 0.00

    • Yes

      This option refers to a weld-in 2” hitch receiver. This hitch receiver is recessed into the bumper shell for a clean look and maximum ground clearance. The hitch pin is accessed from above or from behind. Since the welding process is out of our hands, these hitch receivers are not rated for on-road towing. They are only intended for hitch mounted accessories such as bicycle racks and for off-road use as a recovery point.

      Price: + AUD$ 78.49

  • 3/4" Recovery Shackle (Pair)
      Choose an option
    • No

      Omits the pair of 3/4" recovery shackles. Your bumper will still come with built in attachment points for the recovery shackles of your choice.

      Price: + AUD$ 0.00

    • Yes

      Adds a pair of 3/4" Recovery shackles. These shackles have a 7/8" diameter pin, black powder coat finish, and rubber isolators to eliminate noise and protect your other recovery equipment

      Price: + AUD$ 47.09

AUD$ 899.61 AUD$ 899.61 899.61 AUD

CAD$ 745.02

Add to Cart
"2nd Gen Suzuki Vitara Low Profile Rear Bumper Kit" has been added to your cart.
description

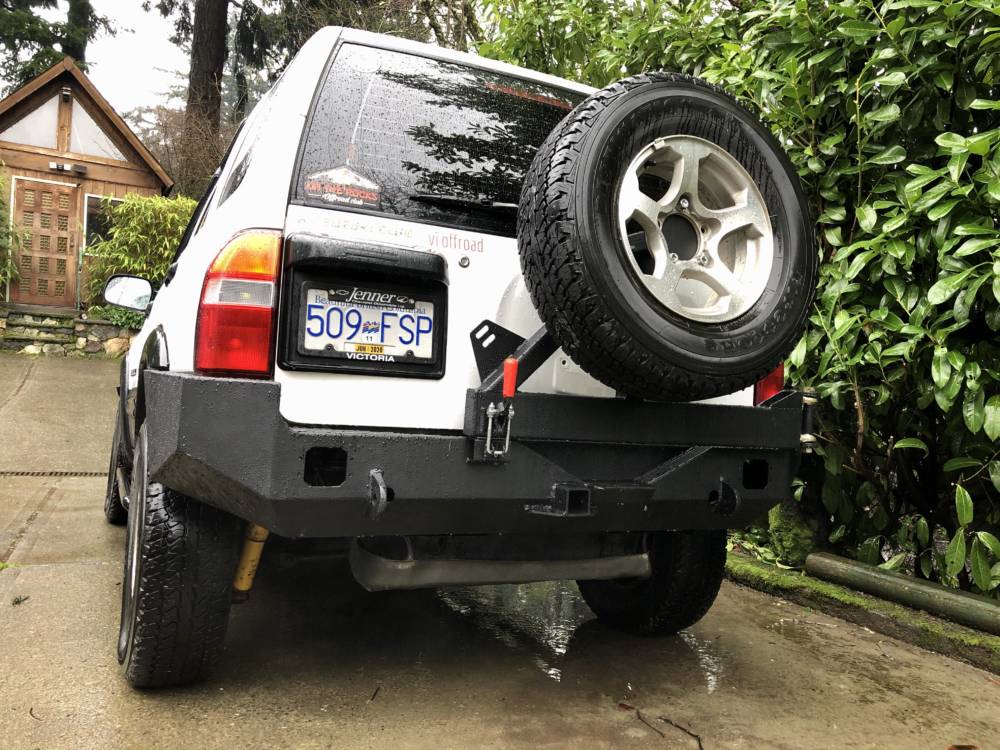

This is a high clearance DIY weld-together rear bumper kit for the 1999-2005 Suzuki Grand Vitara and Suzuki Vitara. This bumper starts by mounting directly to the frame of your Vitara using a total of 8 mounting points. While this is certainly overkill, it ensures that impact and pulling forces are evenly distributed over a large section of your Vitara's frame. This translates into excellent protection from trail obstacles, trees and distracted drivers. While this bumper kit is available with our single and dual swing out options, we still wanted to maintain full usability of the door-mounted factory tire carrier. For this reason, the bumper is notched out in this location, giving you the ability to mount a tire up to 32" on the factory carrier (a tire larger than this is not recommended anyways due to limitations of the factory rear door and door hinges!). To take it one step further, we also incorporated a convenient stepping platform into the notch to provide easy access to your roof mounted accessories.


The profile of this bumper has been designed with maximum ground clearance and departure angles put first. The bumper sits as high and tight to the rear of the Suzuki Vitara as possible, while the angled lower faces will smoothly slide over obstacles and ensure you do not get hung up on the trail. The side wings of this bumper wrap around to the rear wheel wells and tie directly into the main frame mounting plates for true offroad protection. These side wings will take a serious hit without flexing or deflecting into the vehicle body. We know that many Suzuki Vitara owners want to run oversized tires along with long arm suspension kits that extend the wheelbase of the vehicle. This moves the rear tires further rearwards and often creates interference issues with the stock bumper. We have thought ahead and specifically designed these bumper side wings to clear 33" tires with a long arm suspension kit.

We finished this bumper off with integrated light buckets for flush mount LED pod lights (custom light cut outs available by request), an integrated hitch receiver, and heavy duty 9/16" recovery points that are placed directly in line with the Suzuki Vitara frame to eliminate any leveraging effects. These recovery points are formed by laser cut steel plates that pass through the bumper shell and bolt directly to the Suzuki Vitara frame as part of the bumper's main mounting brackets. The recovery points then get welded to the in and outside of the bumper shell. These factors all combine to form recovery points that minimize stress on your Vitara's frame and are essentially indestructible! What could make this bumper even better? The low profile design has resulted in very reasonable weights of 81lbs for the steel bumper and 40lbs for the aluminum version. Considering that this bumper replaces your factory hitch receiver, plastic bumper cover, and steel inner-bumper bar, the resulting weight increase to your Suzuki Vitara is minimal.

The swing out carriers come in either a single or dual sided configuration and are built to accept a tire up to 37" in diameter. Both carriers include mounting brackets for a hilift jack and other recovery items. The dual swing out includes the hilift mount as well as a lockable jerry can holder designed to fit two 20L NATO style jerry cans. These carriers feature heavy duty chromoly heim joint hinges, locking 2000lb toggle latches, T-handle spring pins, and a replaceable UHMW catch pad that provides secure, rattle free operation. The heim joints in conjunction with the toggle latch provide tons of adjustability, allowing for easy assembly and guaranteed alignment of the carrier latch. The single swing out add-on weighs 34lbs and the dual swing out add-on with gas can holder weighs 77lbs.

  • DIY Weld-together kit - This bumper arrives as precision CNC-laser cut pieces that you then weld together (detailed assembly instructions included)

  • Slim profile is engineered to provide maximum ground clearance and complement the factory body lines

  • Heavy duty 3/16" plate steel construction for maximum offroad strength and durability

  • Optional 1/4" 5052 aluminum construction for a lightweight yet very durable overlanding setup (41lb weight savings)

  • Optional 2" hitch receiver is integrated and inset into the bumper shell  for a clean look and further clearance gains (While the hitch is very well reinforced, we cannot rate it for on-road towing due to the DIY welding nature of this kit)

  • Mounts directly to frame using 8 factory mounting points to evenly distribute impact and pulling forces

  • Reinforced 9/16" thick clevis mounts allow the use of 3/4" D-Rings and pull directly off of the frame for confident recoveries of heavily loaded vehicles

  • All kits ship as clean, bare metal that is ready to weld out of the box - the Nitrogen laser cutting technology means no cutting edge oxidation and thus easier and stronger welds

  • Optional Single and Dual Swing out carriers with spare tire mount, hilift jack mount and locking dual NATO can holder (dual swing out only)

Read more
additionnal information
Body Lift Adjustment (NOT suspension lift)
None | 1" Body Lift | 1.5" Body Lift | 2" Body Lift | 3" Body Lift
Cree LED Lights
None | Two 24W Cree LED Pod Lights | Two 40W Cree LED Pod Lights | Two 24W Cree LED Pod Lights with Full Wiring Harness and Switch | Two 40W Cree LED Pod Lights with Full Wiring Harness and Switch
Material
Aluminum (+960) | Steel
Swing Out Carrier
None | Single Swing Out Carrier
Recessed Hitch Receiver
No | Yes(+65)
3/4" Recovery Shackle (Pair)
No | Yes
bumper weight

Steel base bumper weight: 81lbs

Aluminum base bumper weight: 40 lbs
