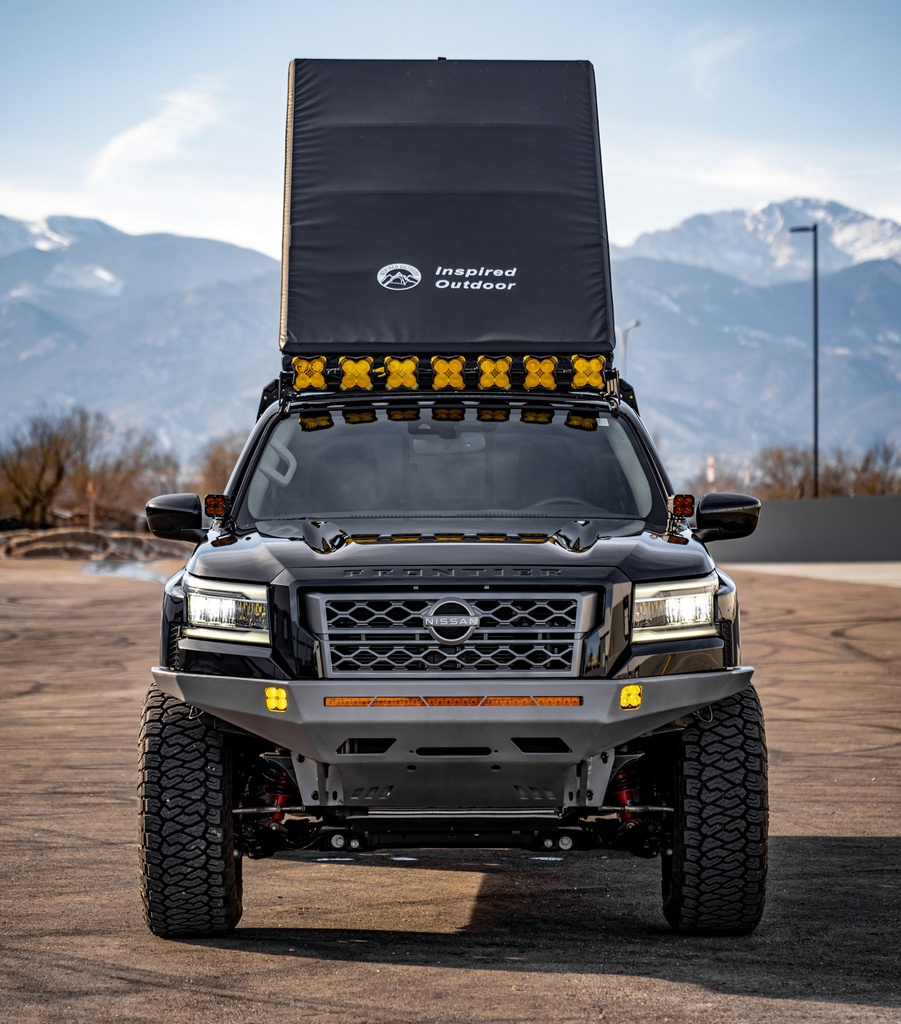

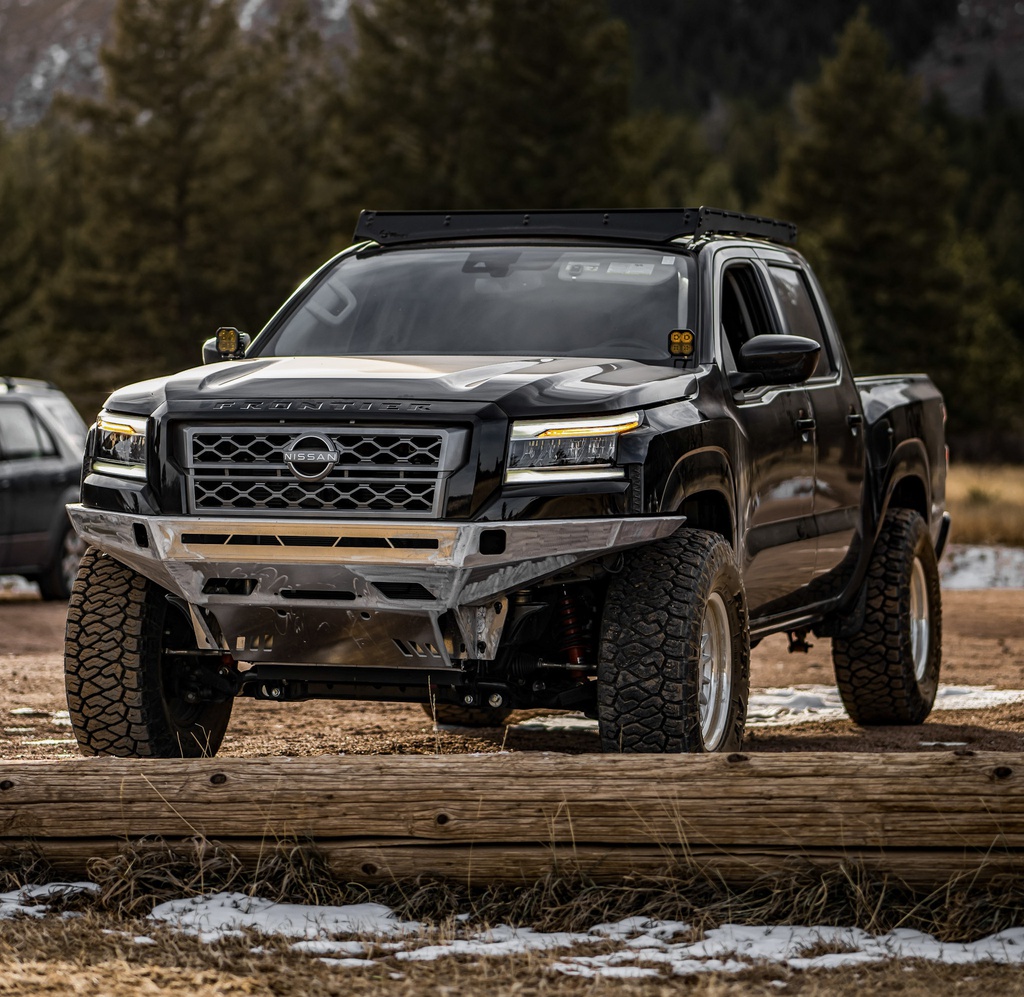

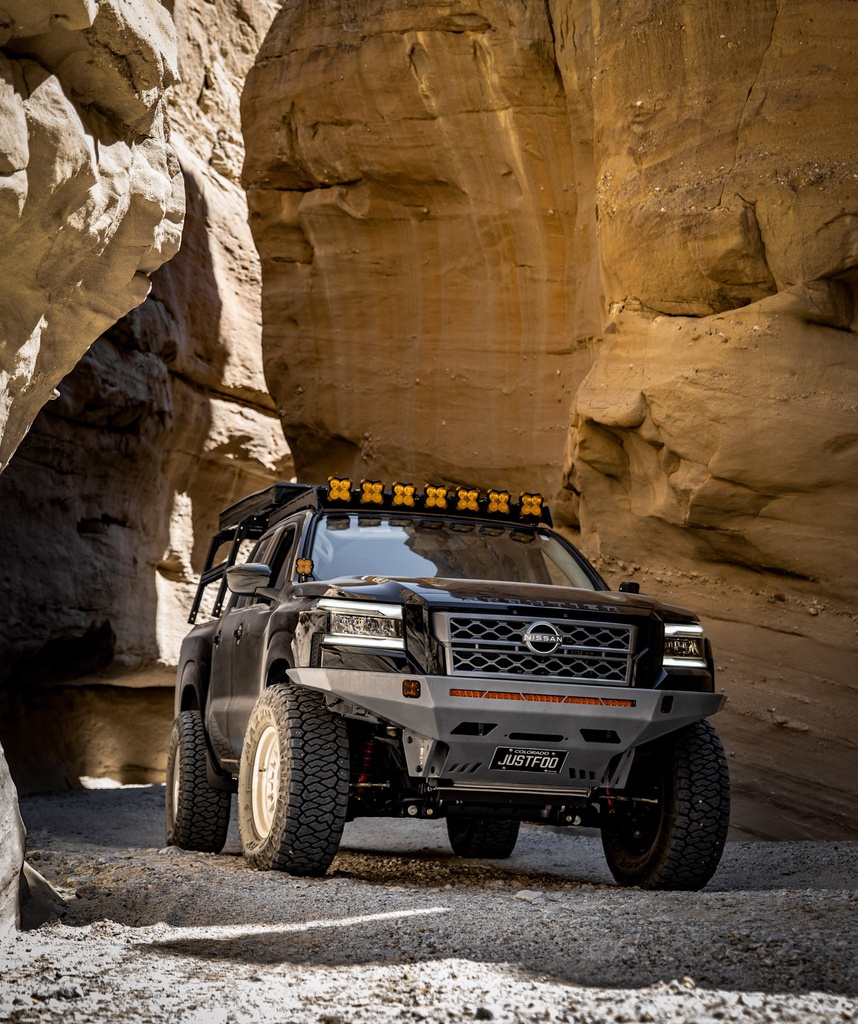

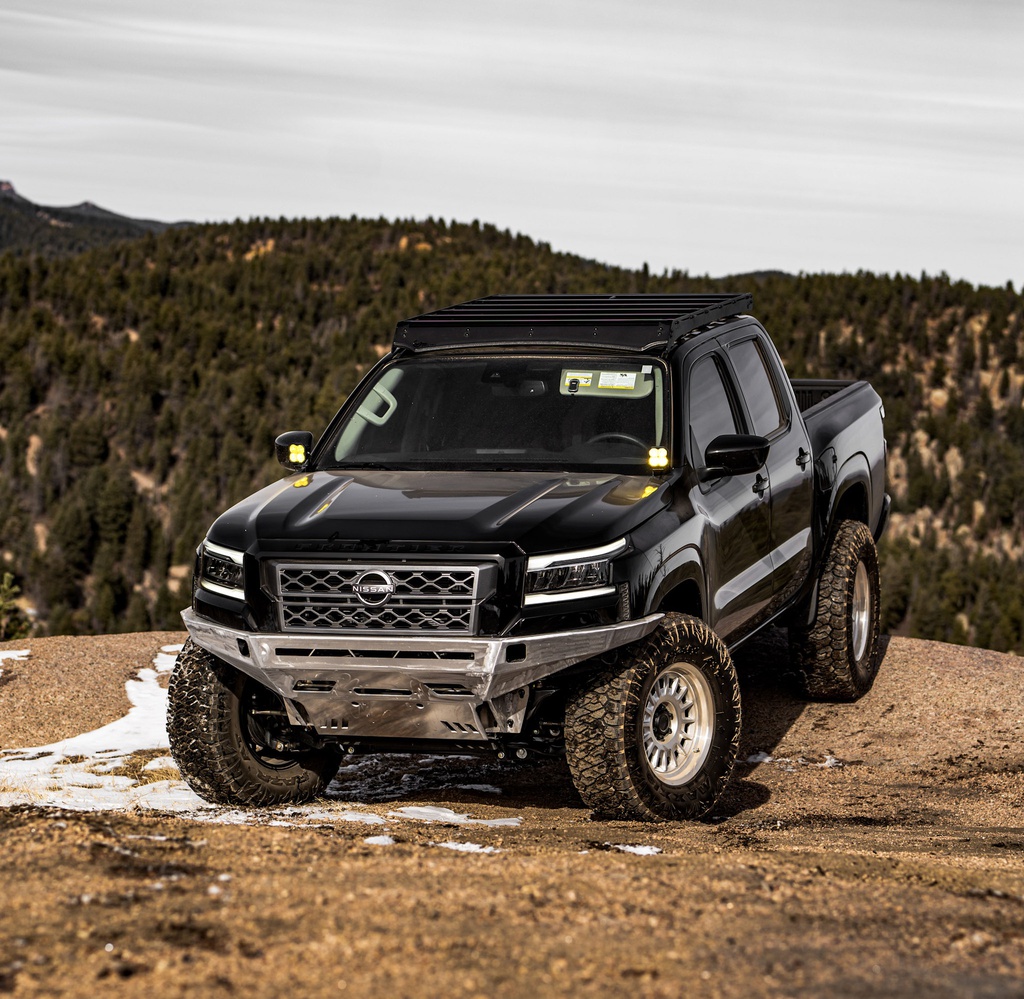

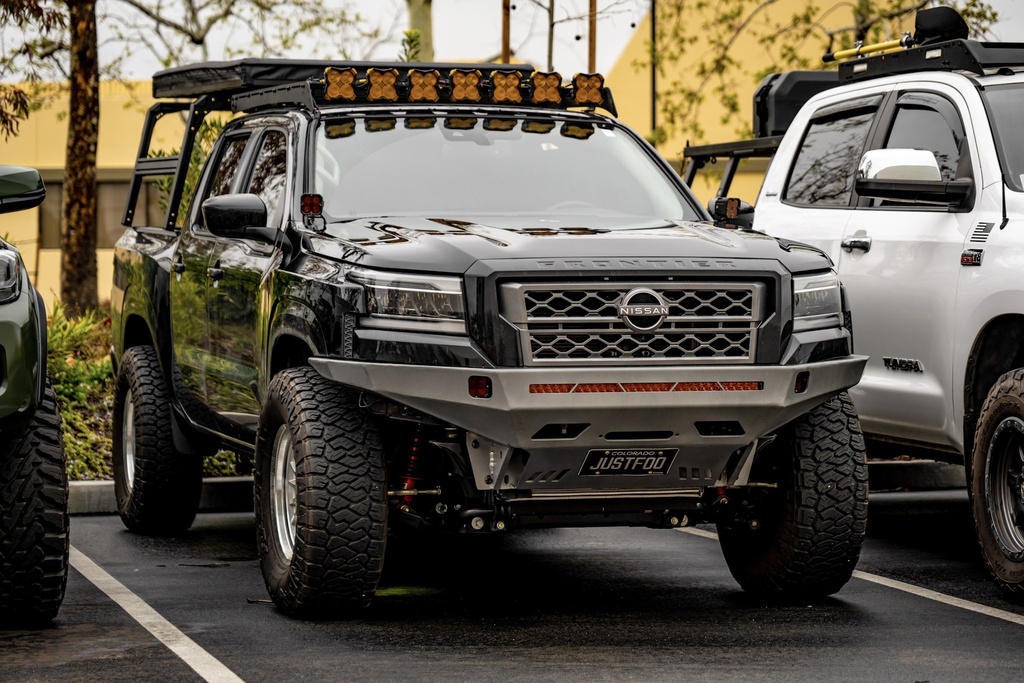

3rd Gen (2022+) Frontier High Clearance Front Bumper Kit

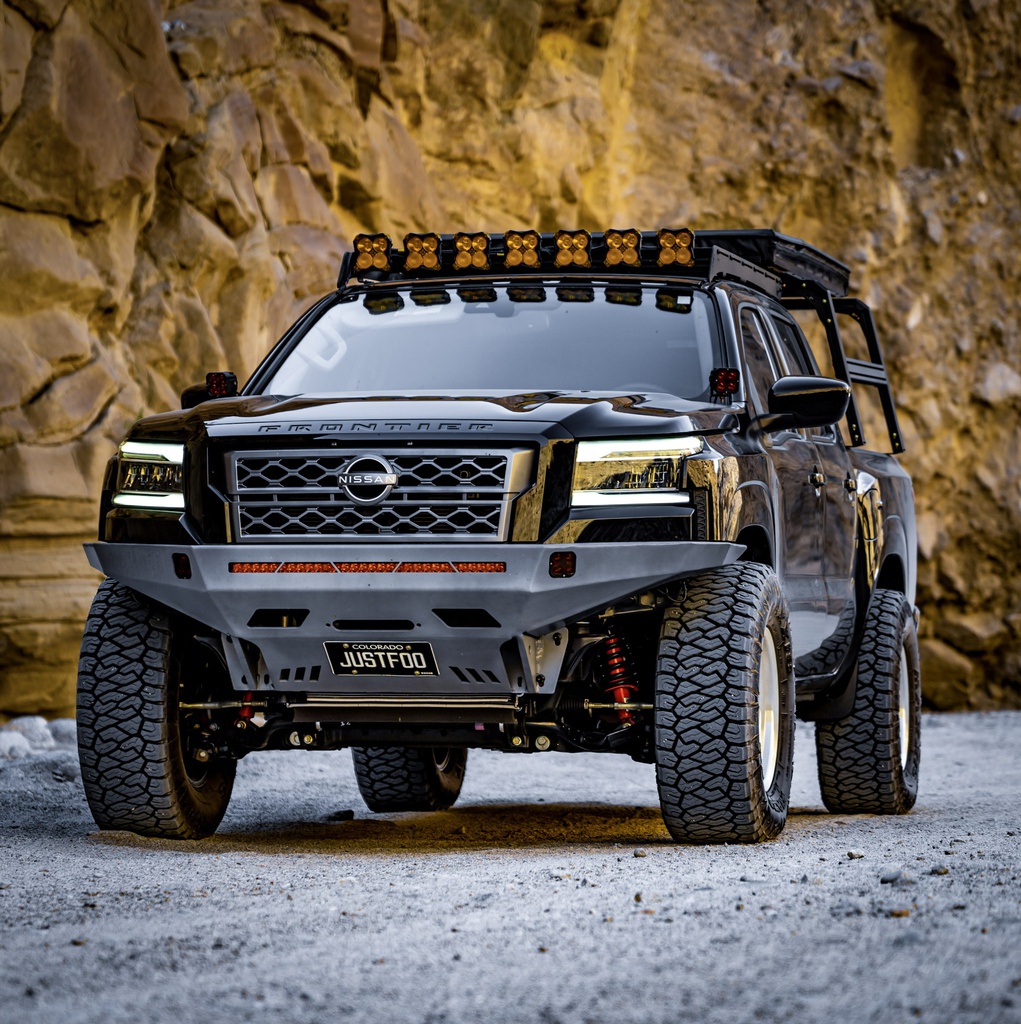

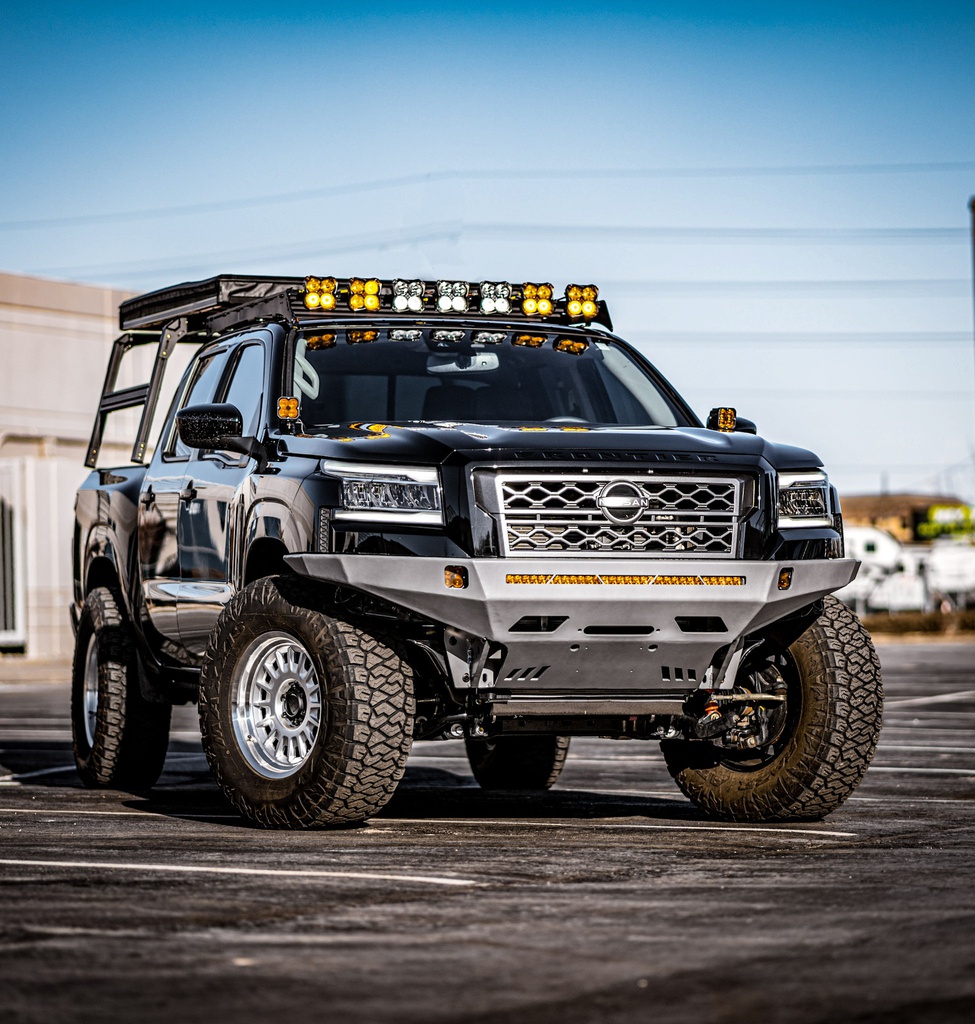

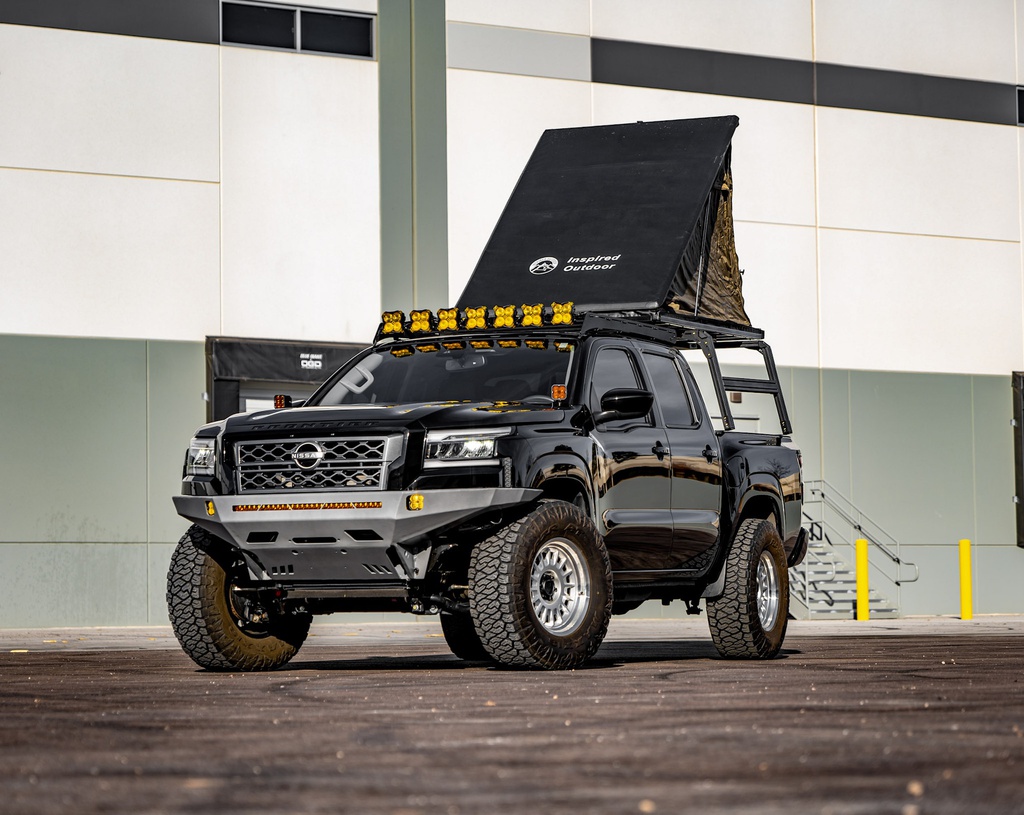

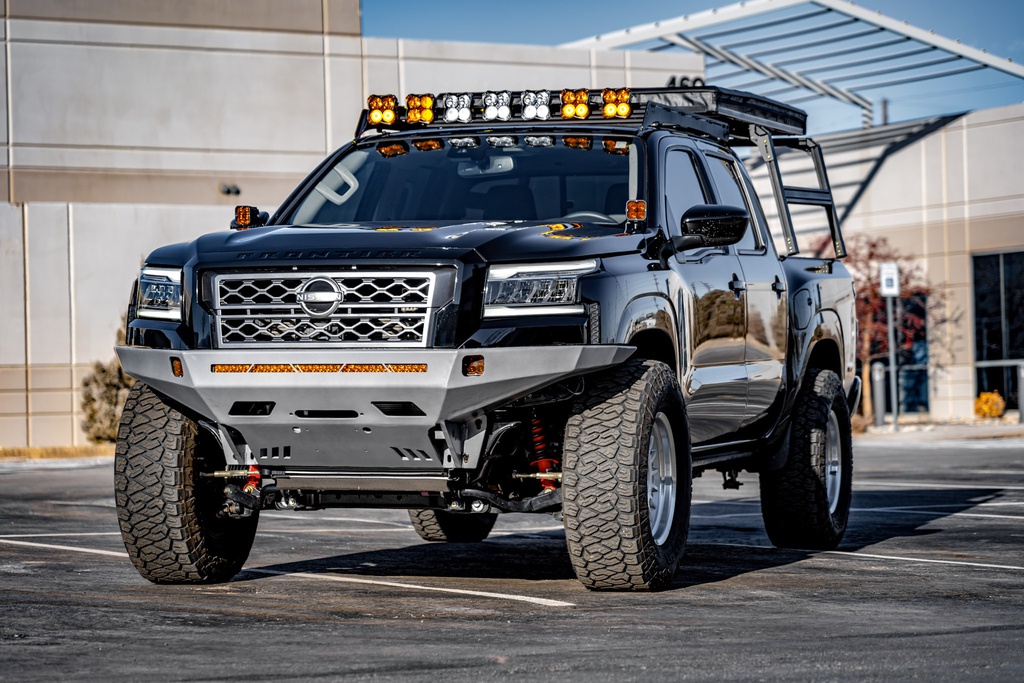

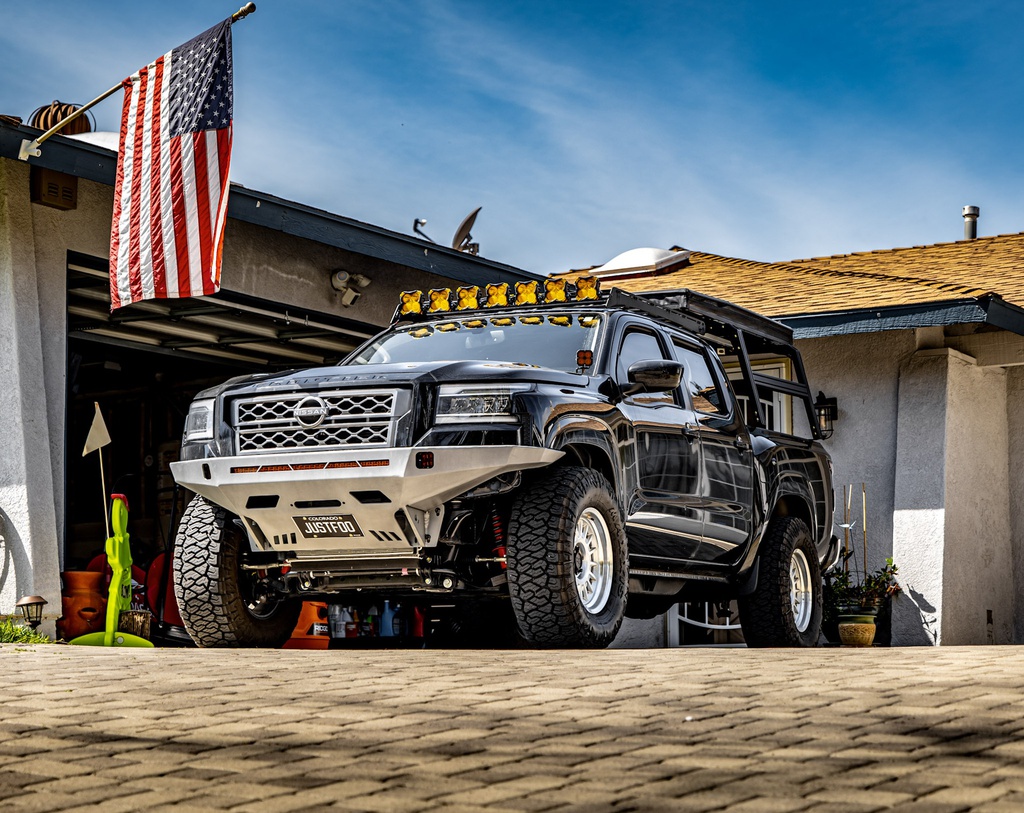

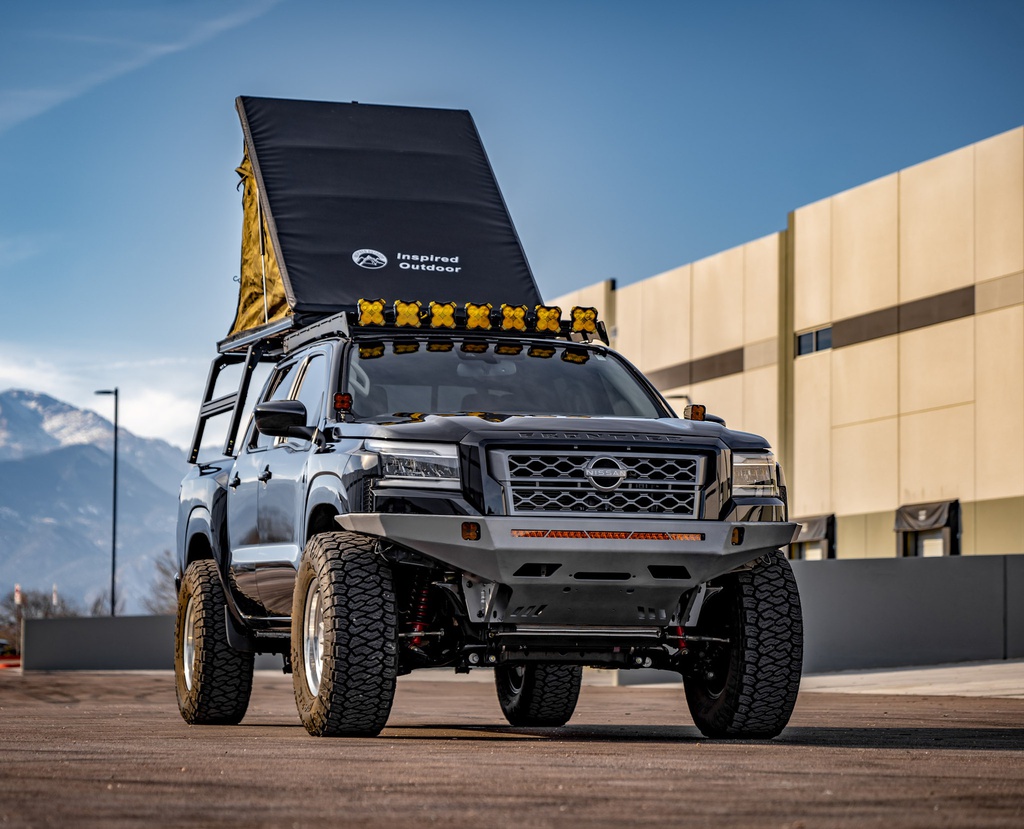

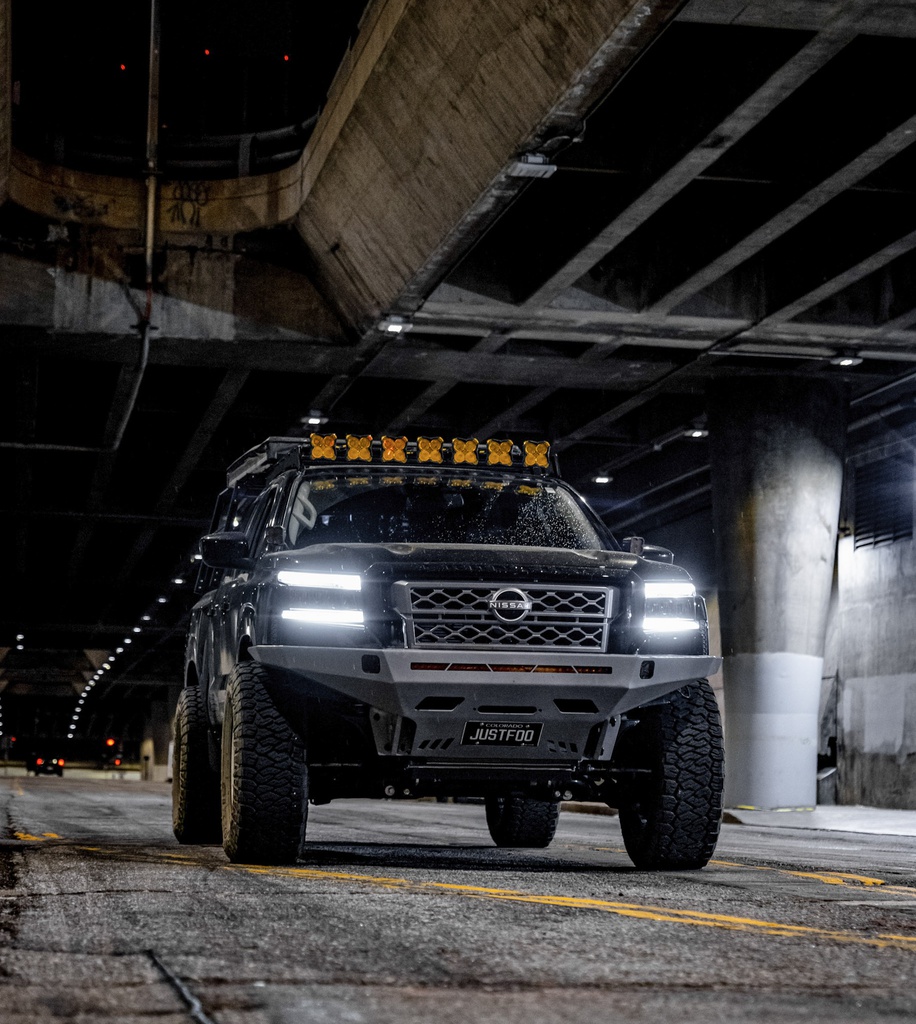

This is a high clearance DIY weld-together winch bumper kit for the 3rd generation (2022+) Nissan Frontier. It features a bolt-on design, protected winch mount, and the best approach angle of any bumper on the market. We've taken the time to provide relocations for all factory sensors systems. The adaptive cruise control, forward camera, and all parking aids are fully maintained with this bumper. The high clearance design makes your Frontier look more aggressive by showing off your front suspension and tires. In addition, this bumper frees up a ton of space in your front wheel wells and allows you to easily run 35" tires without any bumper interference. This bumper allows you to forget about approach angle and substantially improves the offroad capability of your Frontier. It offers excellent protection from rocks, trees and animal strikes and has been kept to a weight of 109lbs (or 54lbs in aluminum) through careful design work.

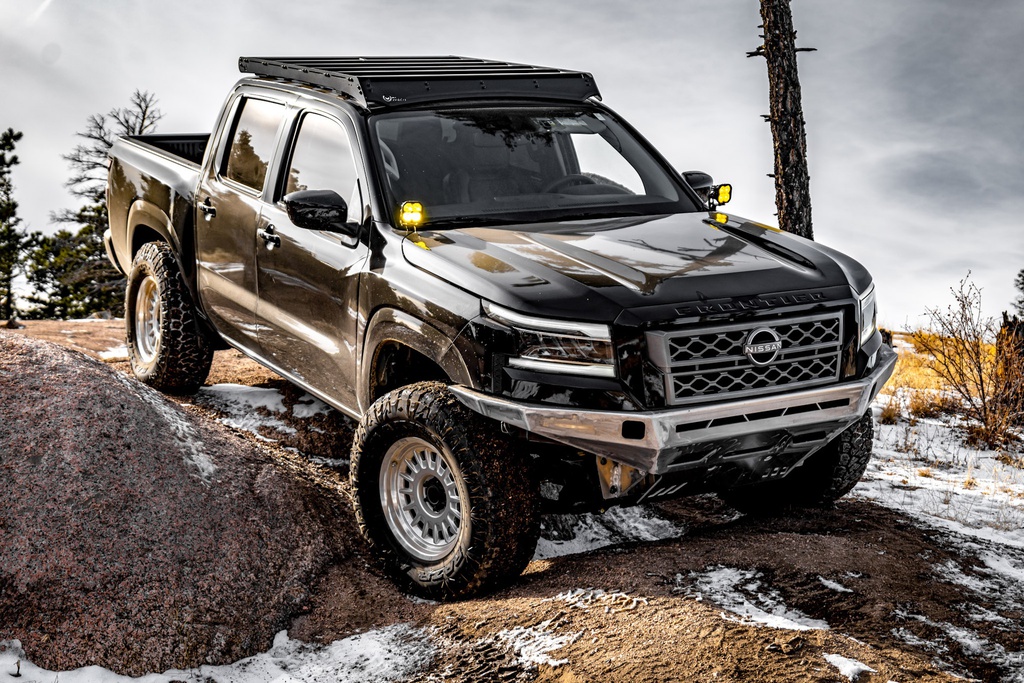

The profile of this bumper has been designed with maximum ground clearance and approach angles put first. The bumper sits as high and tight to the front of the 3rd generation (2022+) Nissan Frontier as possible, while the angled lower faces will smoothly slide over obstacles and ensure you do not get hung up on the trail. The side wings of this bumper wrap around to the front wheel wells and tie directly into the main frame mounting plates for true offroad protection. These side wings will take a serious hit without flexing or deflecting into the vehicle body. We know that most Nissan Frontier owners want to run oversized tires and more aggressive wheel offsets. This can create interference issues with the stock front bumper. We have thought ahead and specifically designed these bumper side wings to easily clear 35" tires. This bumper uses a total of 8 factory mounting points to solidly mount it to the frame. This distributes impact and winching forces evenly across your frame and makes for the stiffest mounting interface of any bumper on the market. This bumper is also available with an optional lower skid plate that provides a smooth surface to slide across trail obstacles and protects your vulnerable engine bay parts. This skid plate is fully CNC-bent into shape and only requires two very small 1" long welds to complete it.

The main section of this bumper is also CNC-bent out of a single piece of  3/16" P&O Steel. This greatly reduces the amount of welding and grinding required by you and makes for a cleaner finished product. If you are paying to have the bumper assembled by a welding shop, this significantly lowers the cost.

We finished this bumper off with a 30" single row light bar mount, two integrated light buckets for surface mount LED pod lights (custom light cut outs available by request), an integrated winch mount to accept all standard 8-12k lb winches with removable solenoids, and heavy duty 9/16" recovery points that are placed directly in line with the Nissan Frontier frame to eliminate any leveraging effects. These recovery points are formed by laser cut steel plates that pass through the bumper shell and tie directly into the Nissan Frontier frame as part of the bumper's main mounting brackets. The recovery points then get welded to the in and outside of the bumper shell. These factors all combine to form recovery points that minimize stress on your Nissan Frontier frame and provide reliable recoveries of heavily loaded vehicles in the worst of offroad situations. The low profile design has resulted in very reasonable weights of 109lbs for the steel bumper and 54lbs for the aluminum version. Considering that this bumper replaces your factory bumper and associated components, the resulting weight increase to your Nissan Frontier is surprisingly minimal. In fact, if you look at the last picture on this page, you can see the amount of factory plastic and other nonsense that gets removed. We weighed all of these components and found they added up to a total of 69lbs! This means that our steel bumper only increases your Frontier's weight by 40lbs and our aluminum bumper version actually results in a weight loss of 15lbs!  This reduces added stress on your vehicle, maintains precious payload capacity, and allows you to keep your factory suspension if desired.

Don't want to lose your factory parking sensor or adaptive cruise systems? No problem. This bumper kit comes standard with a bracket to relocate your adaptive cruise system to behind the vehicle's grill. Very detailed step by step instructions for this relocation are included. Bu request, this bumper can also be ordered with CNC-cut ports for each of the 4 factory parking sensors as well as internal routing ports for the factory wiring harness to pass through without any modification or extensions required (Please email us or put a comment in your order notes section to receive this option). Simply pop the sensors into this replacement bumper, route the factory harness through the internal ports, and plug it back into the vehicle. The factory wiring harness is easily removed from the stock bumper and transferred to the Coastal Offroad bumper. This allow you to wire in our LED driving lights and your factory parking sensors right into the Coastal Offroad bumper using the factory wiring harness. When removing the Coastal Offroad bumper from the vehicle, all wiring is then conveniently disconnected all at once via the factory plugs located behind the vehicle grill.

• DIY Weld-together kit - This bumper arrives as precision CNC-laser cut and bent pieces that you then weld together (detailed assembly instructions included)

• CNC-bent plates greatly reduces amount of welding and grinding required by you and makes for a cleaner finished product

• Maintains full usage of factory forward-facing camera

• Adaptive Cruise Control Relocation Bracket Included-  required for vehicles equipped with Adaptive cruise control system. This CNC cut bracket moves the ACC sensor to behind the Frontier's grill and is adjustable to tune the sensitivity of the system. Instructions included. (WARNING - sensor should be re-calibrated by a certified Nissan technician after installation. Coastal Offroad is not responsible for any death or injury caused by malfunction of this system).

• Available with Factory Parking Sensor Cut outs - (Please email us or put a comment in your order notes section to receive this option)

• Low profile design is engineered to provide maximum ground clearance and complement the factory body lines - this bumper protrudes less than 3" from the center of the grill!

• Maintains part of the factory plastic bumper for reduced weight and cleaner lines. Trimming of factory plastic bumper is required but we provide a very detailed and beginner-friendly guide on making this cut trouble-free.

• Heavy duty 3/16" plate steel construction for maximum offroad strength and durability

• Optional 1/4" 5052 aluminum for a lightweight yet very durable overlanding setup (55lb weight savings)

• Bolts directly to frame using a total of 8  factory mounting points - no drilling required

• Protected winch mount fits all standard 8000-12,000lb winches with removable solenoids

• Integrated 9/16" thick clevis mounts allow the use of 3/4" D-Rings and pull directly off of the frame for confident recoveries of heavily loaded vehicles

• Two Integrated LED pod mounts – slotted mounting tabs give tons of adjustment to fit a wide variety of surface mount pod lights

• Integrated 30" Light bar mount - fits all standard 30" single row light bars and includes adjustable mounts

• Integrated license plate mount

• Optional heavy duty grill and headlight tubing for added protection

• The bumper center section can be ordered on its own by special request if you would like to make your own hybrid tubing side wings (Please email us for details)
