4th Gen Dodge Ram 1500 High Clearance Rear Bumper Kit
Dodge Ram 1500 and 1500 Classic
Dodge
Dodge Dodge Ram 1500 and 1500 Classic CO58275ID product: 1640
Choose
your variation

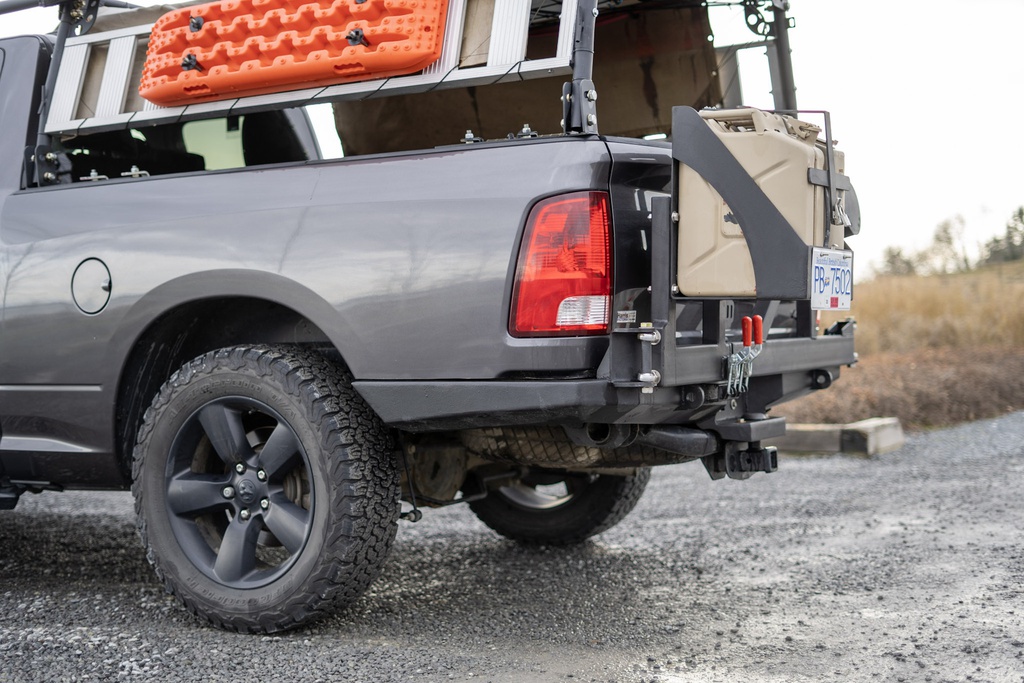

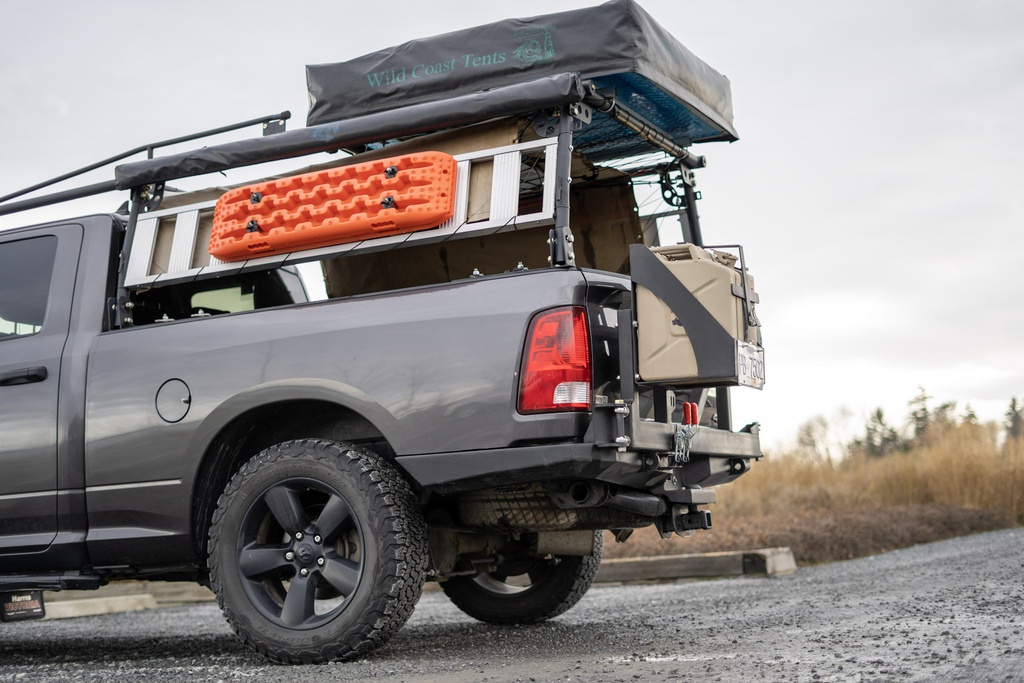

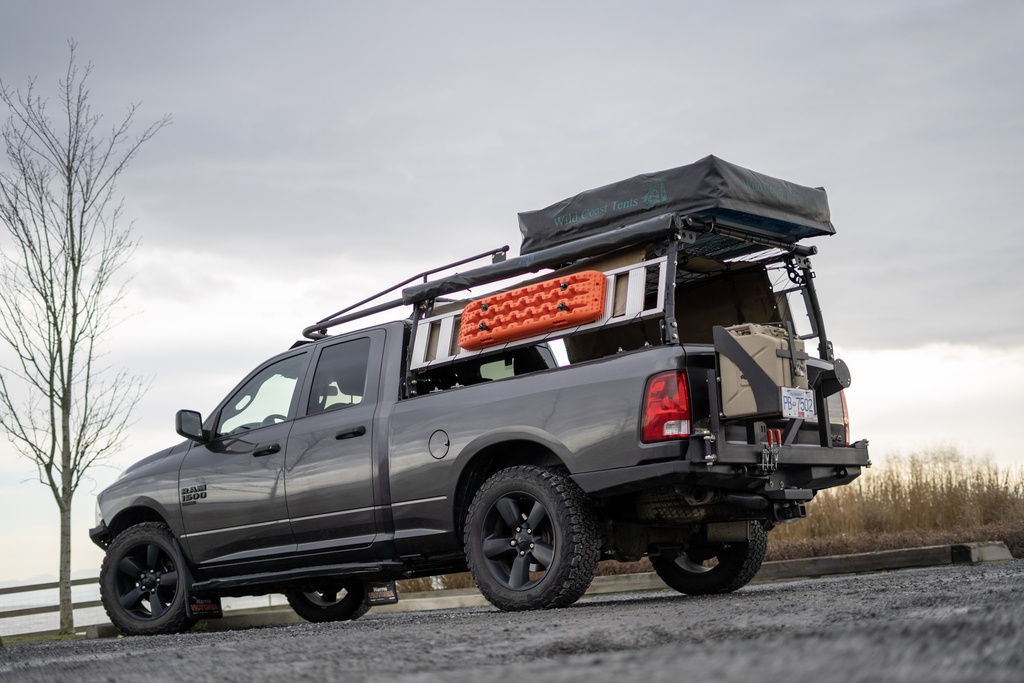

This is a high clearance DIY weld-together plate bumper kit for the 4th gen (2009-2018) Dodge Ram 1500. This bumper is very unique in that it incorporates the factory hitch receiver, full wrap-around protection and the best departure angle on the market. It does all of this while still maintaining the factory trailer plug and spare tire location! By cutting the factory bedsides up to the bottom of the tail lights, this bumper replaces the most vulnerable part of the truck's bed with low profile plate side wings that can take a beating.

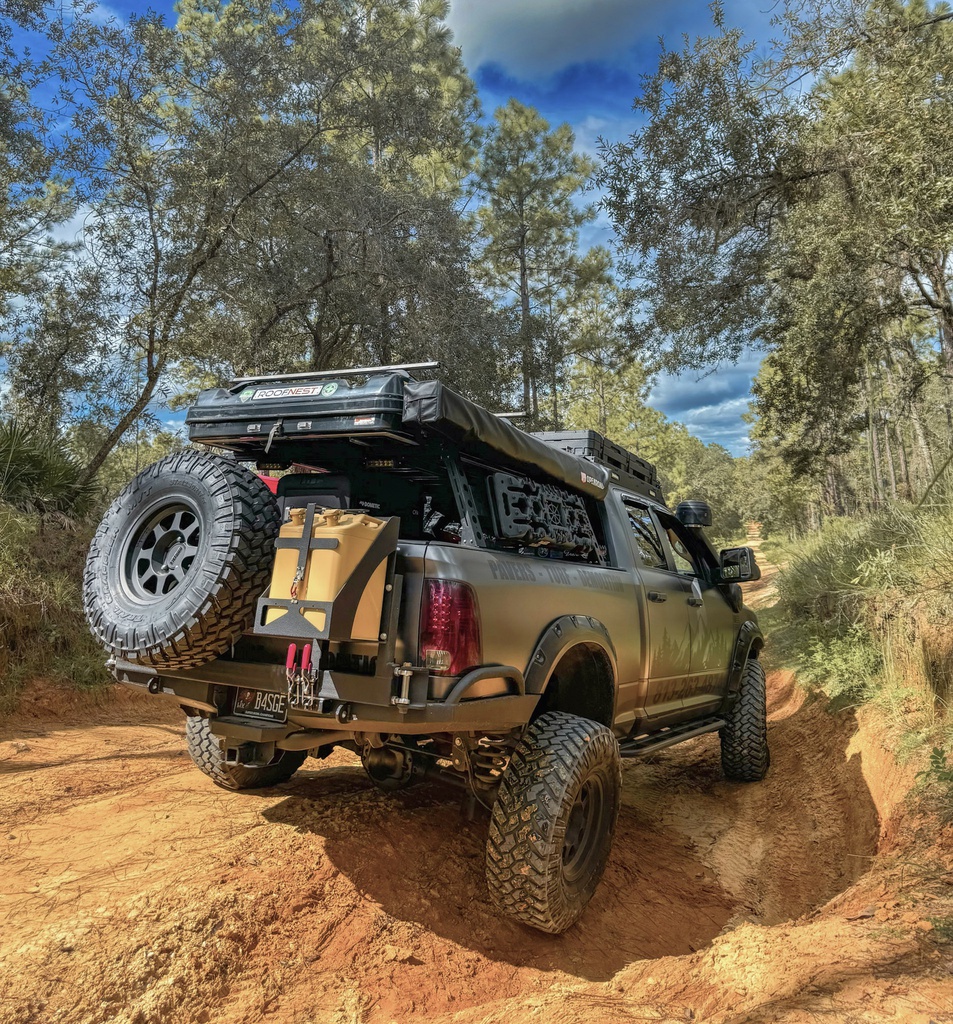

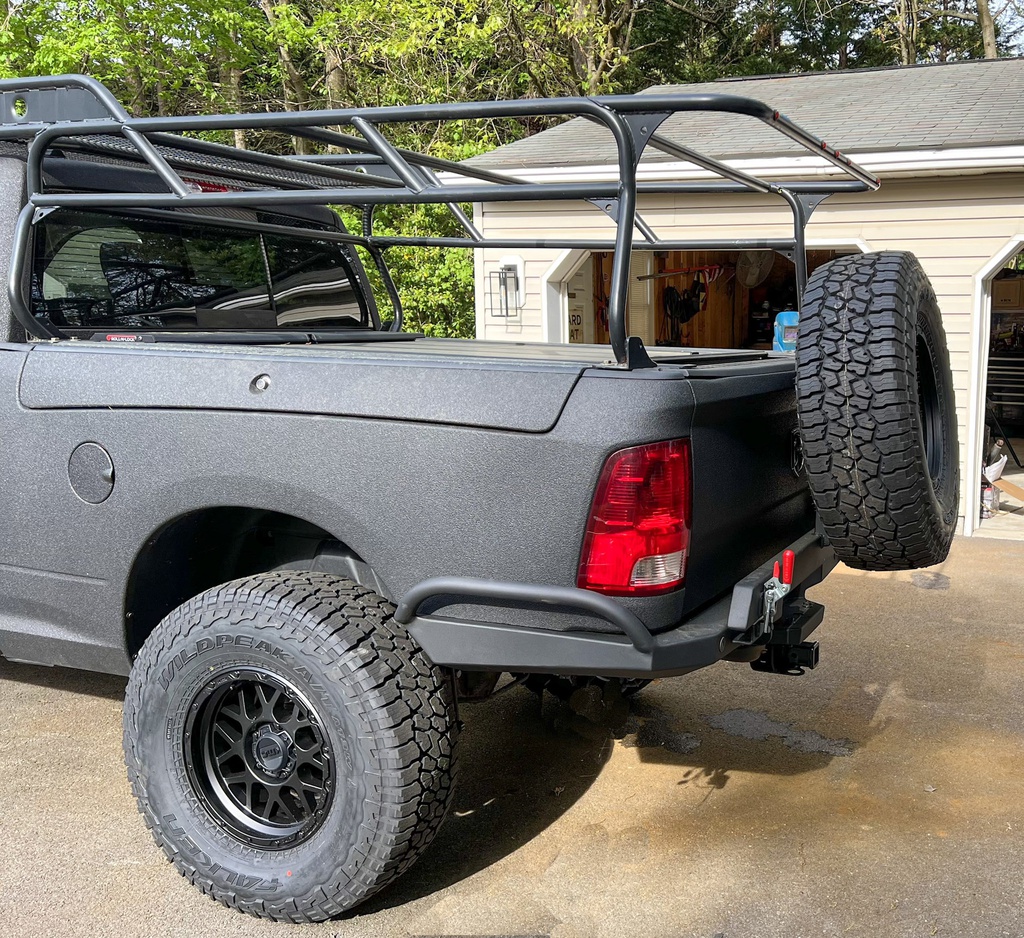

When we set out to design this bumper, we wanted to create something that packed as much functionality as possible while still looking great and complementing the lines of the 4th gen (2009-2018) Dodge Ram 1500. The low profile wrap-around design and optional side hoops mean that this bumper will take your Ram's offroad performance to new levels. The sloping rear profile and optional recessed hitch receiver further increase clearance and provide a smooth surface to slide over obstacles. These features make a very noticeable difference during deep ditch crossing and steep obstacle climbs where other aftermarket bumpers with bulky rear profiles will hang up and impede progress on the trail. Simply put, this bumper allows you to forget about departure angle and substantially improves the offroad capability of your Ram!
To maintain the full towing capacity of the vehicle, we designed this bumper to be fully compatible with the factory hitch receiver. Alternatively, if you prefer to ditch the factory hitch receiver, this bumper is also available with an integrated hitch receiver that provides even more ground clearance gains.
To finish things off nicely, this bumper comes pre-cut with holes for the factory trailer wiring plug, license plate, and spare tire lowering mechanism. Simply pop them out of your factory bumper and add them to your new Coastal Offroad bumper without any wiring extensions or modifications required.

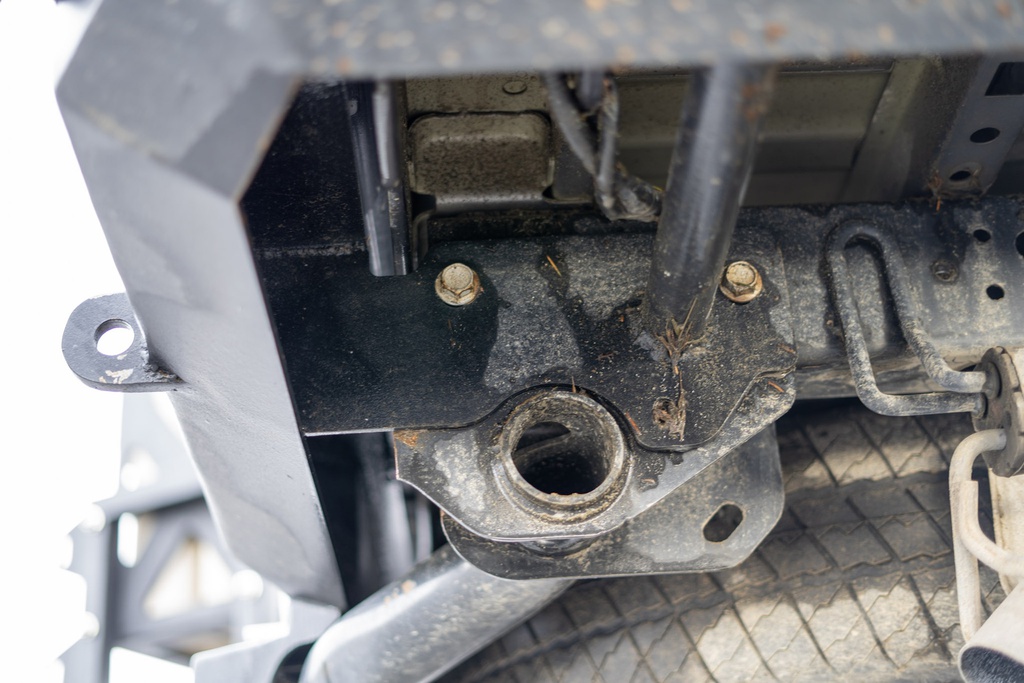

And of course, this feature-packed bumper is built from heavy duty 3/16" steel or 1/4" aluminum that provides excellent protection from rocks, trees and inattentive motorists while careful design work and the low profile design have resulted in weights of 93lbs and 46lbs for the steel and aluminum versions respectively. The bumper mounts to the vehicle with up to 9 factory mounting points. While this is certainly overkill, it ensures that impact and pulling forces are evenly distributed into your Ram's frame.

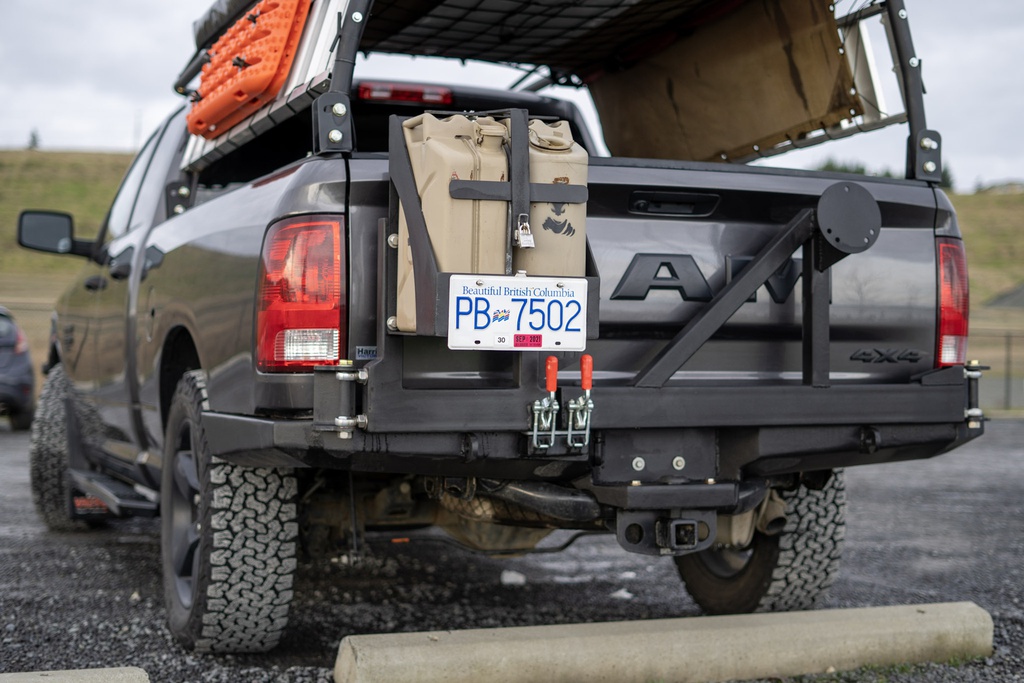

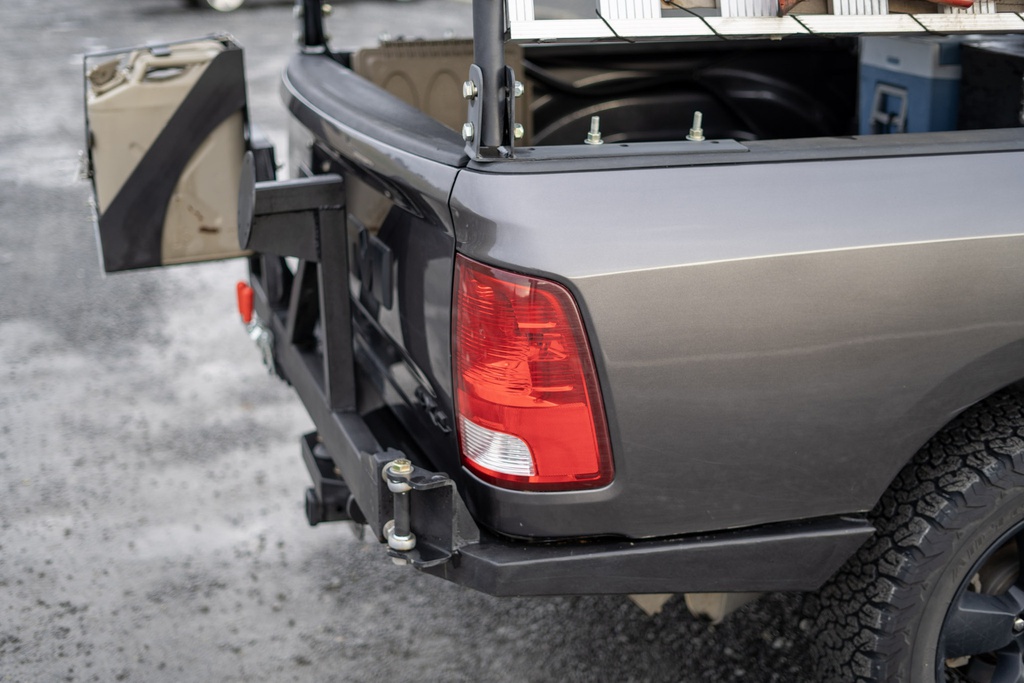

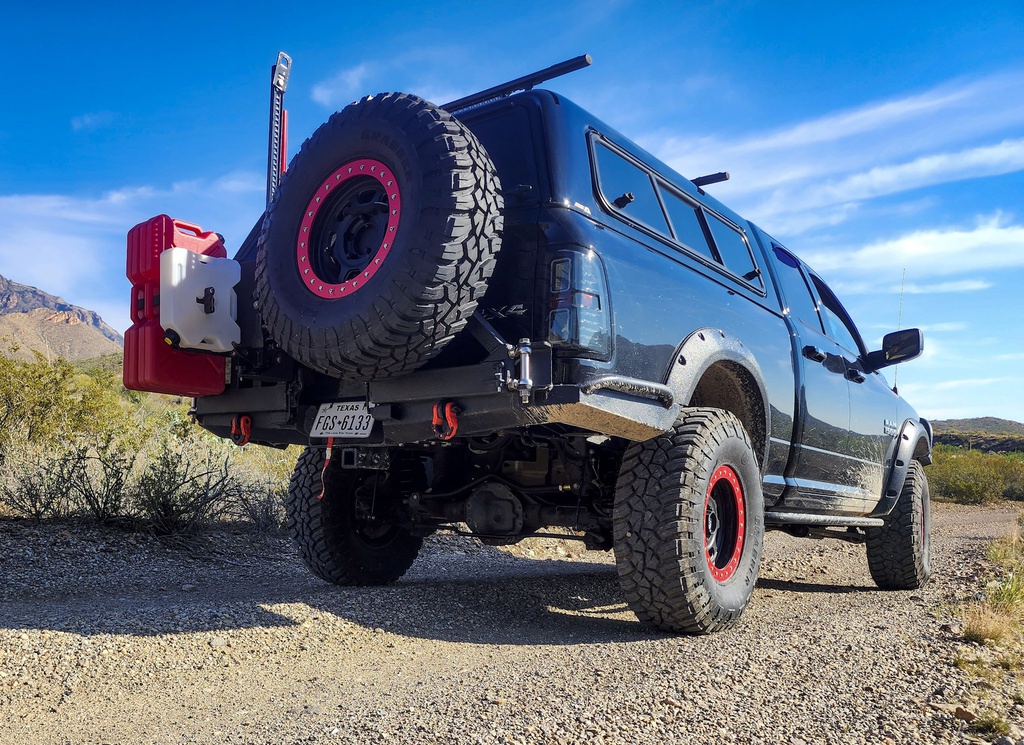

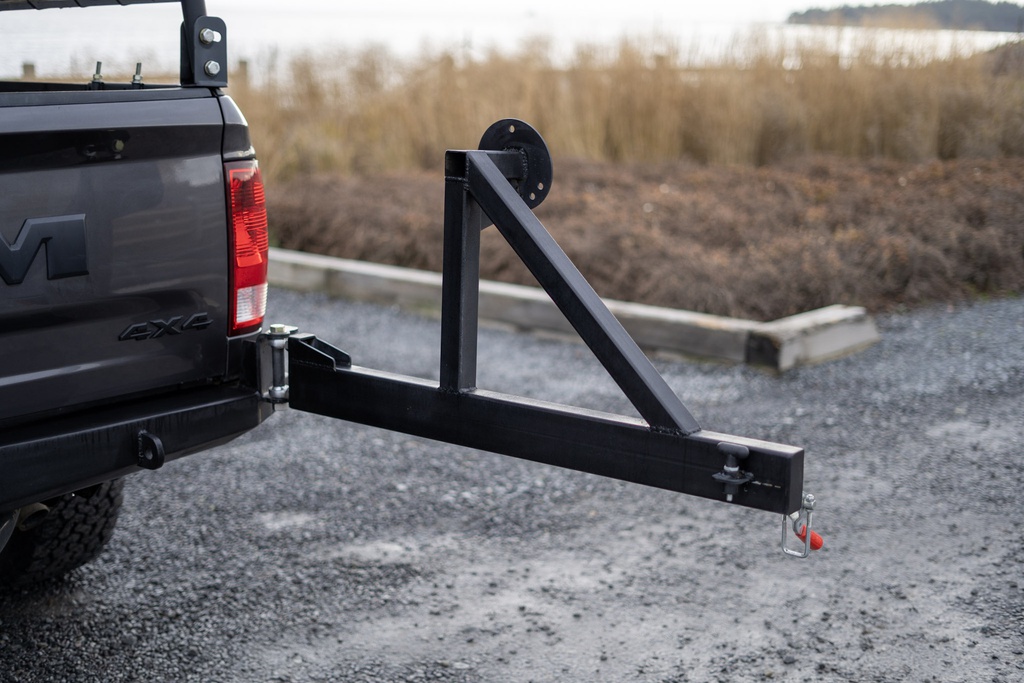

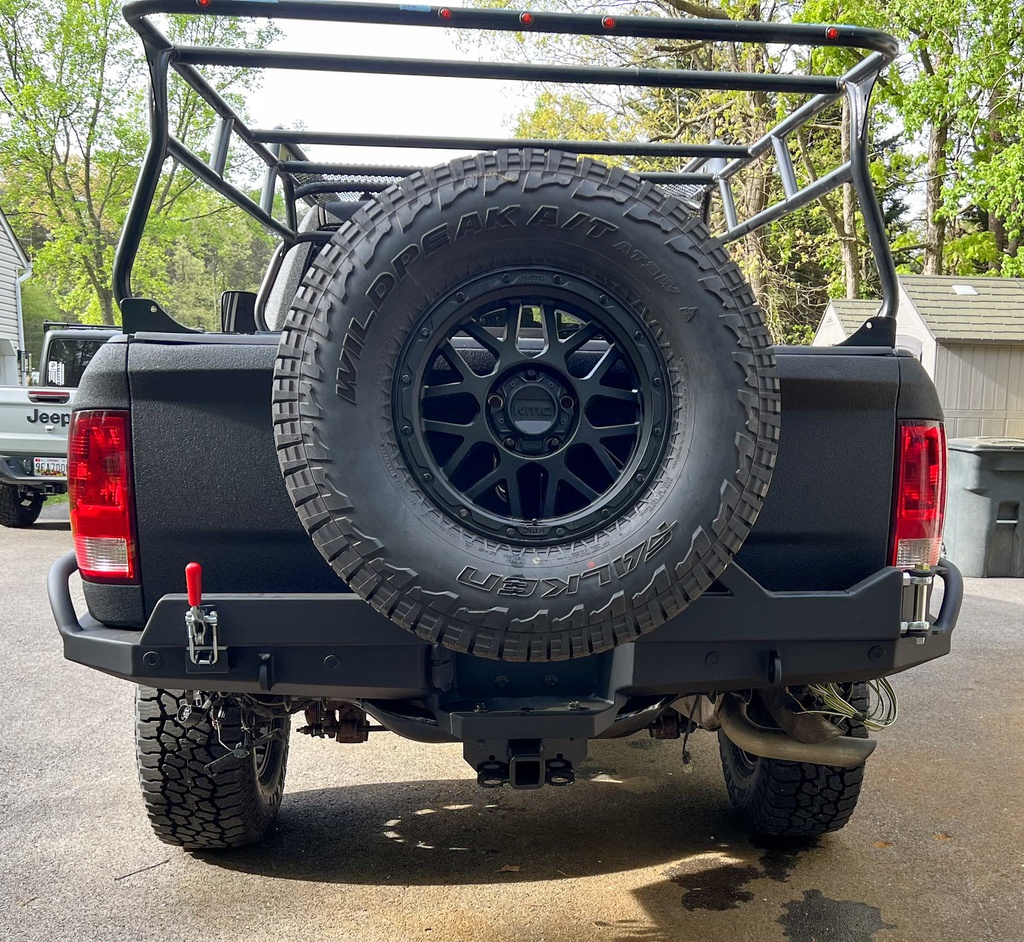

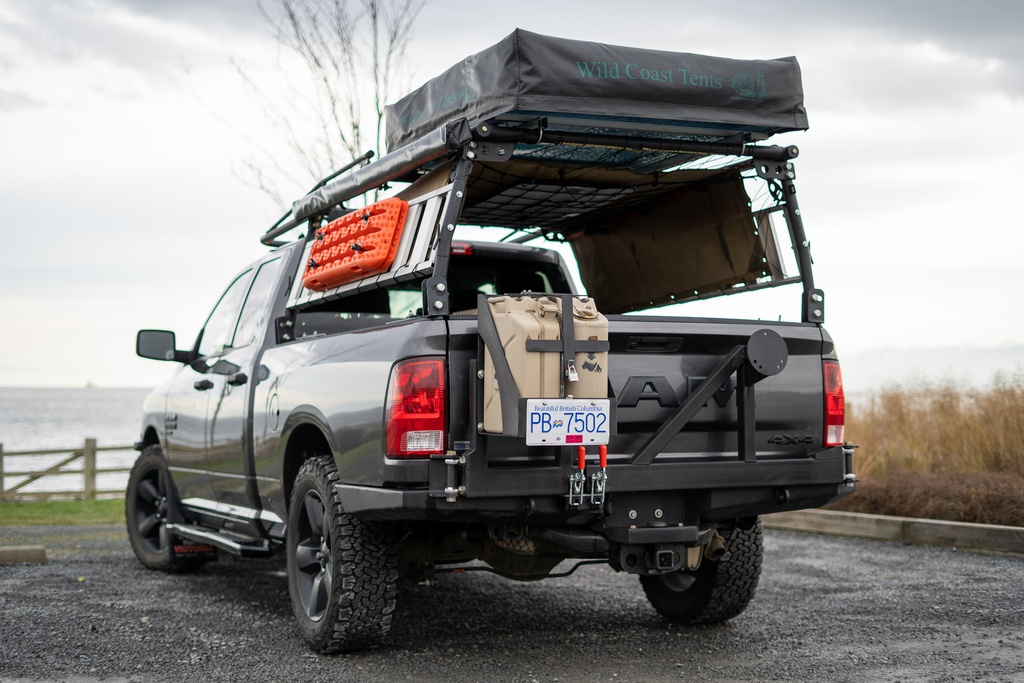

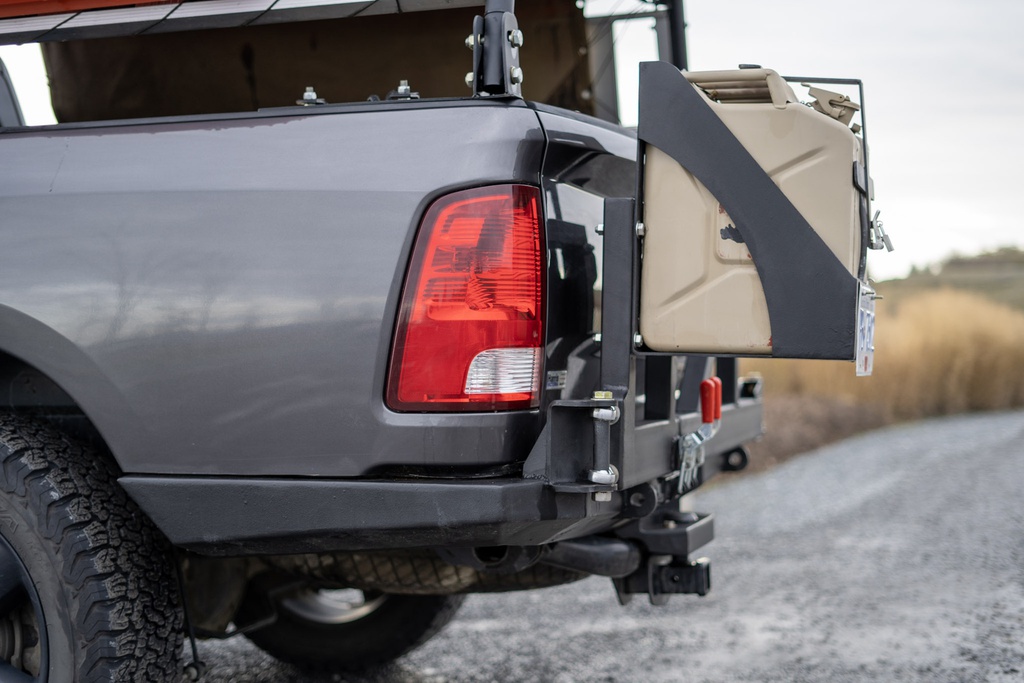

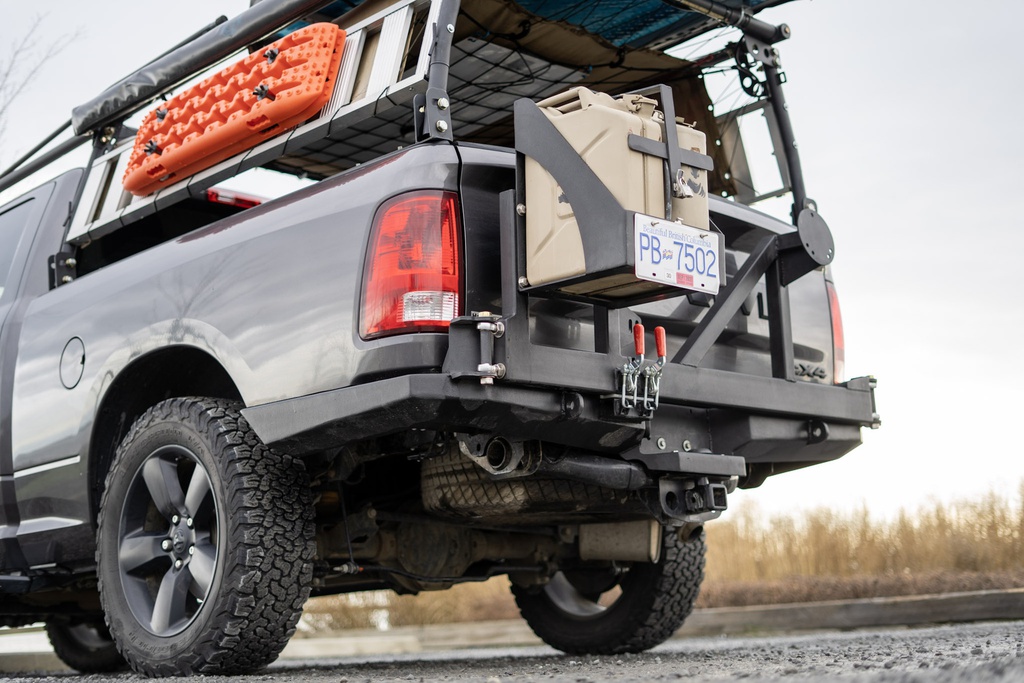

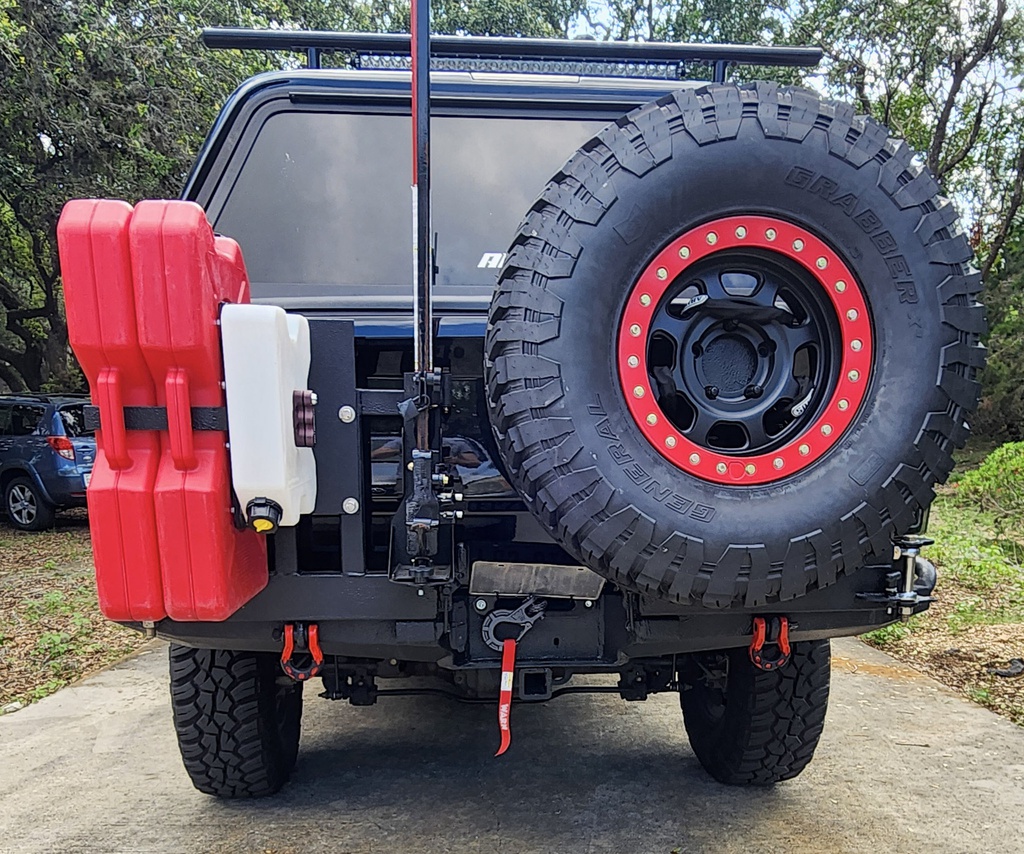

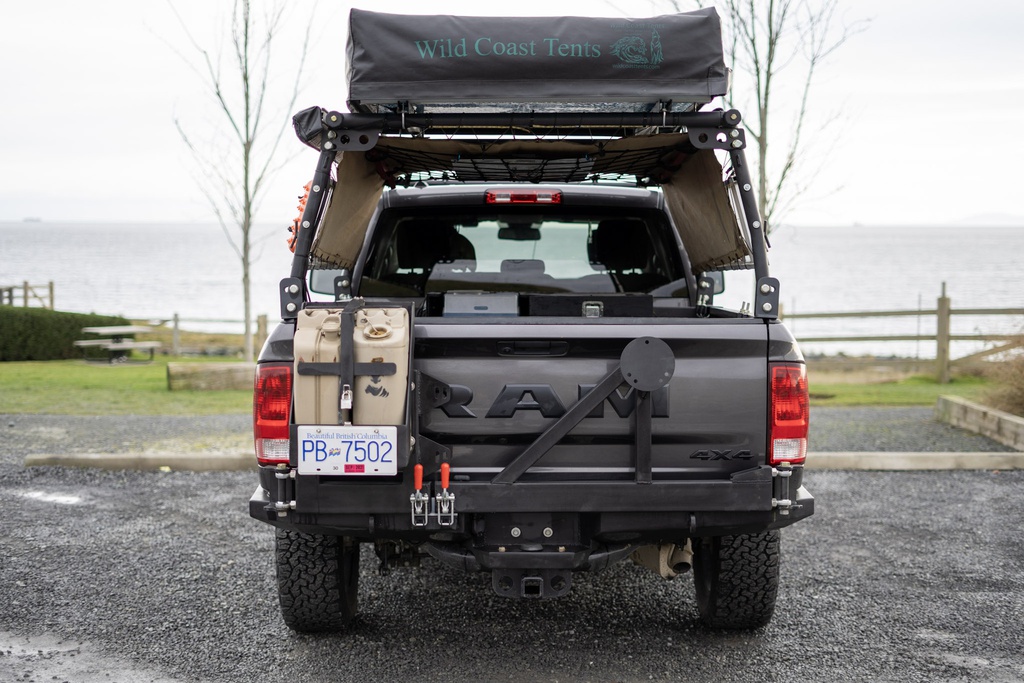

The optional swing out carriers come in either a single or dual sided configuration and are built to accept a tire up to 37" in diameter. Both carriers include mounting brackets for a hilift jack and other recovery items. The dual swing out includes the hilift mount as well as a lockable jerry can holder designed to fit two 20L NATO style jerry cans. These carriers feature heavy duty chromoly heim joint hinges, locking 2000lb toggle latches, T-handle spring pins, and a replaceable UHMW catch pad that provides secure, rattle free operation. The heim joints in conjunction with the toggle latch provide tons of adjustability, allowing for easy assembly and guaranteed alignment of the carrier latch. The single swing out add-on weighs 34lbs and the dual swing out add-on with gas can holder weighs 77lbs.
DIY Weld-together kit - This bumper arrives as precision CNC-laser cut pieces that you then weld together (detailed assembly instructions included)

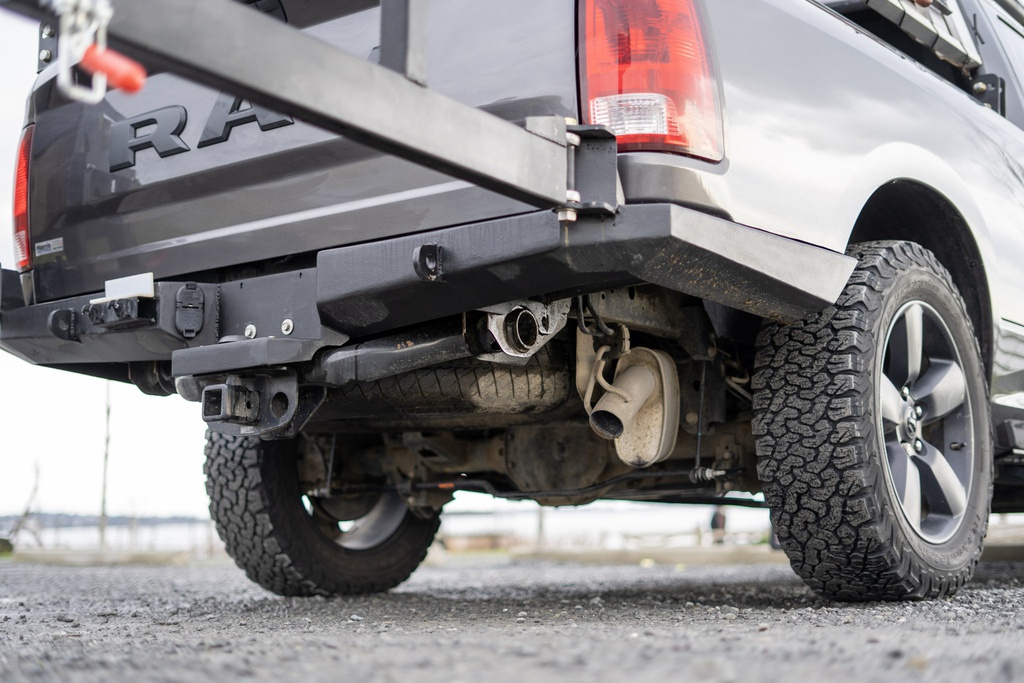

Compatible with Factory Hitch Receiver to maintain full towing capacity
Slim profile is engineered to provide maximum departure angles and complement the factory body lines

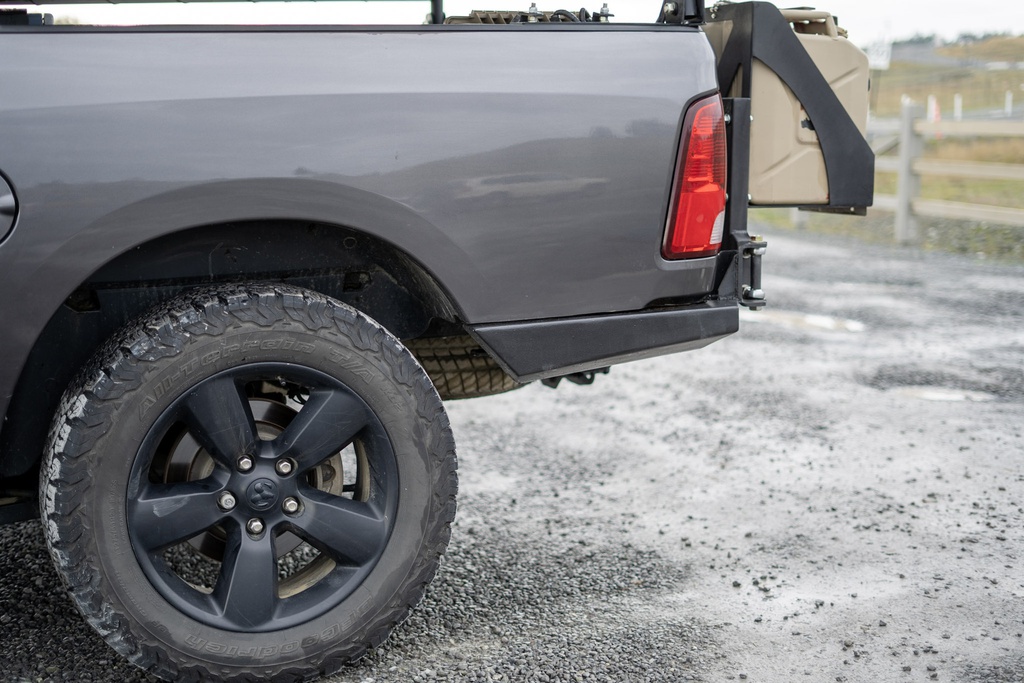

Wrap-around side wings maximize protection and ground clearance (Cutting of factory bedsides required)
Heavy duty 3/16" plate steel construction for maximum offroad strength and durability
Optional 1/4" 5052 aluminum construction for a lightweight yet very durable overlanding setup (47lb weight savings)
Optional recessed 2" hitch receiver for a clean look and further clearance gains (While the hitch is very well reinforced, we cannot rate it for on-road towing due to the DIY welding nature of this kit)
Mounts directly to frame using 9 factory mounting points for unbeatable strength
Reinforced 9/16" thick clevis mounts allow the use of 3/4" D-Rings and pull directly off of the frame for confident recoveries of heavily loaded vehicles
All kits ship as clean, bare metal that is ready to weld out of the box - the Nitrogen laser cutting technology means no cutting edge oxidation and thus easier and stronger welds
Optional Single and Dual Swing out carriers with spare tire mount, hilift jack mount and locking dual NATO can holder (dual swing out only)
Note : Optional LED lights include adjustable mounting tabs to mount the lights either on the swing outs or on top of the bumper.
4th Gen Dodge Ram 1500 High Clearance Rear Bumper Kit
Dodge Ram 1500 and 1500 Classic Dodge
AUD$ 1,011.72ID product: 1640
This is a high clearance DIY weld-together plate bumper kit for the 4th gen (2009-2018) Dodge Ram 1500. This bumper is very unique in that it incorporates the factory hitch receiver, full wrap-around protection and the best departure angle on the market. It does all of this while still maintaining the factory trailer plug and spare tire location! By cutting the factory bedsides up to the bottom of the tail lights, this bumper replaces the most vulnerable part of the truck's bed with low profile plate side wings that can take a beating.
When we set out to design this bumper, we wanted to create something that packed as much functionality as possible while still looking great and complementing the lines of the 4th gen (2009-2018) Dodge Ram 1500. The low profile wrap-around design and optional side hoops mean that this bumper will take your Ram's offroad performance to new levels. The sloping rear profile and optional recessed hitch receiver further increase clearance and provide a smooth surface to slide over obstacles. These features make a very noticeable difference during deep ditch crossing and steep obstacle climbs where other aftermarket bumpers with bulky rear profiles will hang up and impede progress on the trail. Simply put, this bumper allows you to forget about departure angle and substantially improves the offroad capability of your Ram!
To maintain the full towing capacity of the vehicle, we designed this bumper to be fully compatible with the factory hitch receiver. Alternatively, if you prefer to ditch the factory hitch receiver, this bumper is also available with an integrated hitch receiver that provides even more ground clearance gains.
To finish things off nicely, this bumper comes pre-cut with holes for the factory trailer wiring plug, license plate, and spare tire lowering mechanism. Simply pop them out of your factory bumper and add them to your new Coastal Offroad bumper without any wiring extensions or modifications required.
And of course, this feature-packed bumper is built from heavy duty 3/16" steel or 1/4" aluminum that provides excellent protection from rocks, trees and inattentive motorists while careful design work and the low profile design have resulted in weights of 93lbs and 46lbs for the steel and aluminum versions respectively. The bumper mounts to the vehicle with up to 9 factory mounting points. While this is certainly overkill, it ensures that impact and pulling forces are evenly distributed into your Ram's frame.
The optional swing out carriers come in either a single or dual sided configuration and are built to accept a tire up to 37" in diameter. Both carriers include mounting brackets for a hilift jack and other recovery items. The dual swing out includes the hilift mount as well as a lockable jerry can holder designed to fit two 20L NATO style jerry cans. These carriers feature heavy duty chromoly heim joint hinges, locking 2000lb toggle latches, T-handle spring pins, and a replaceable UHMW catch pad that provides secure, rattle free operation. The heim joints in conjunction with the toggle latch provide tons of adjustability, allowing for easy assembly and guaranteed alignment of the carrier latch. The single swing out add-on weighs 34lbs and the dual swing out add-on with gas can holder weighs 77lbs.
DIY Weld-together kit - This bumper arrives as precision CNC-laser cut pieces that you then weld together (detailed assembly instructions included)
Compatible with Factory Hitch Receiver to maintain full towing capacity
Slim profile is engineered to provide maximum departure angles and complement the factory body lines
Wrap-around side wings maximize protection and ground clearance (Cutting of factory bedsides required)
Heavy duty 3/16" plate steel construction for maximum offroad strength and durability
Optional 1/4" 5052 aluminum construction for a lightweight yet very durable overlanding setup (47lb weight savings)
Optional recessed 2" hitch receiver for a clean look and further clearance gains (While the hitch is very well reinforced, we cannot rate it for on-road towing due to the DIY welding nature of this kit)
Mounts directly to frame using 9 factory mounting points for unbeatable strength
Reinforced 9/16" thick clevis mounts allow the use of 3/4" D-Rings and pull directly off of the frame for confident recoveries of heavily loaded vehicles
All kits ship as clean, bare metal that is ready to weld out of the box - the Nitrogen laser cutting technology means no cutting edge oxidation and thus easier and stronger welds
Optional Single and Dual Swing out carriers with spare tire mount, hilift jack mount and locking dual NATO can holder (dual swing out only)
Note : Optional LED lights include adjustable mounting tabs to mount the lights either on the swing outs or on top of the bumper.
