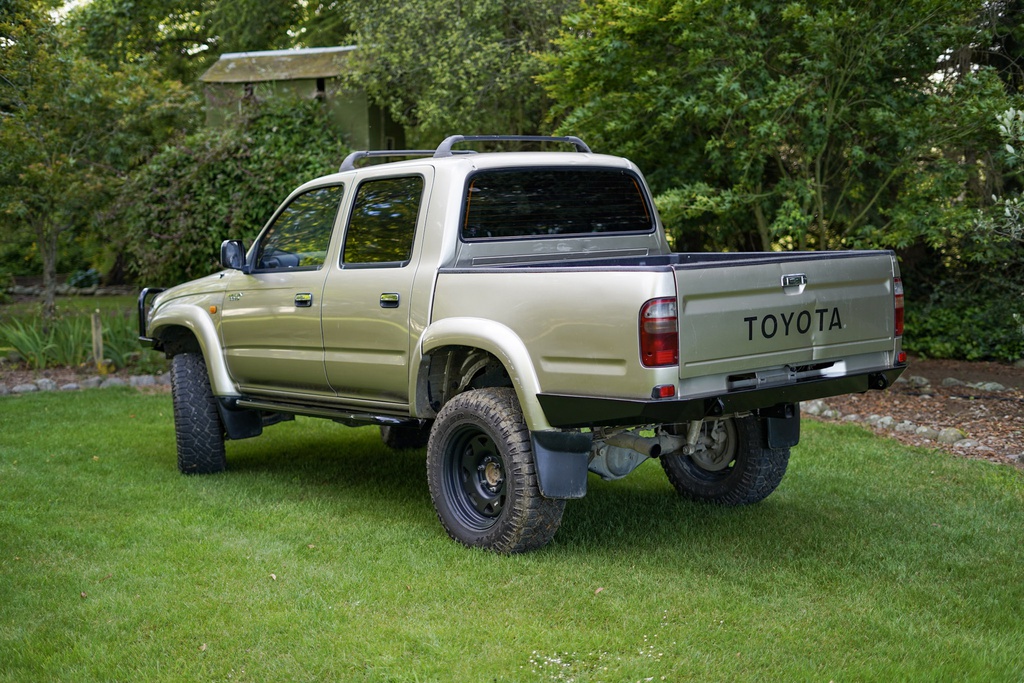

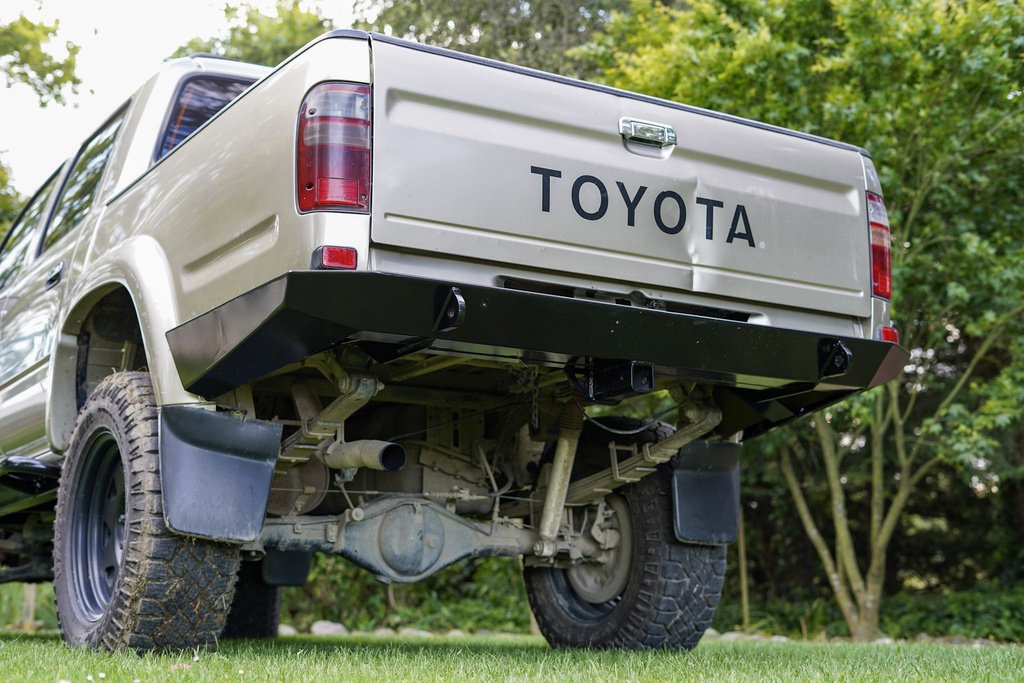

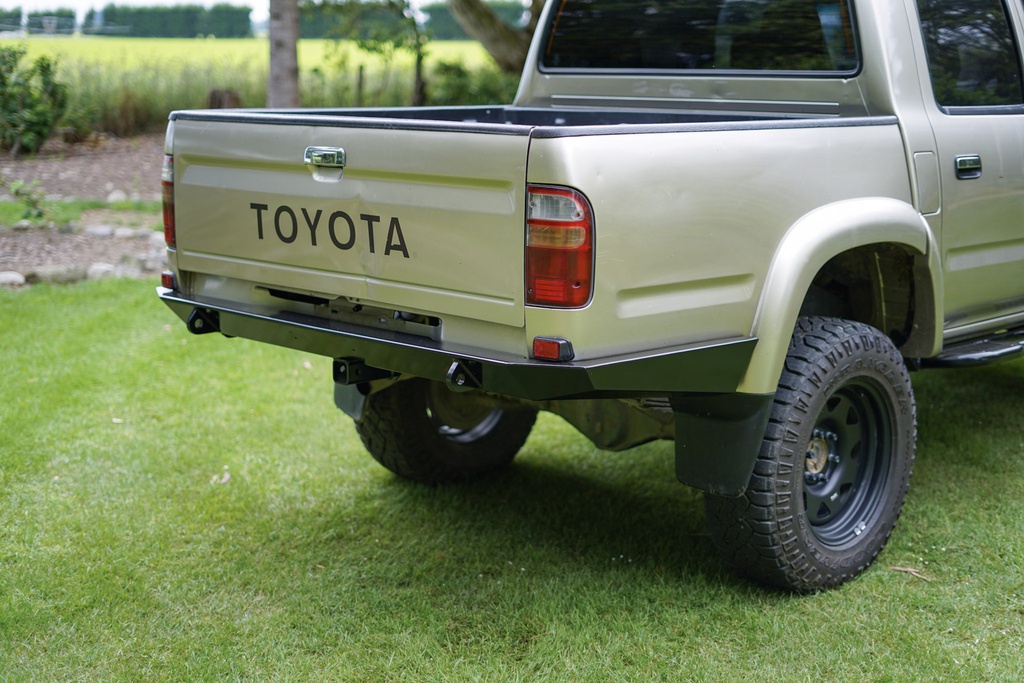

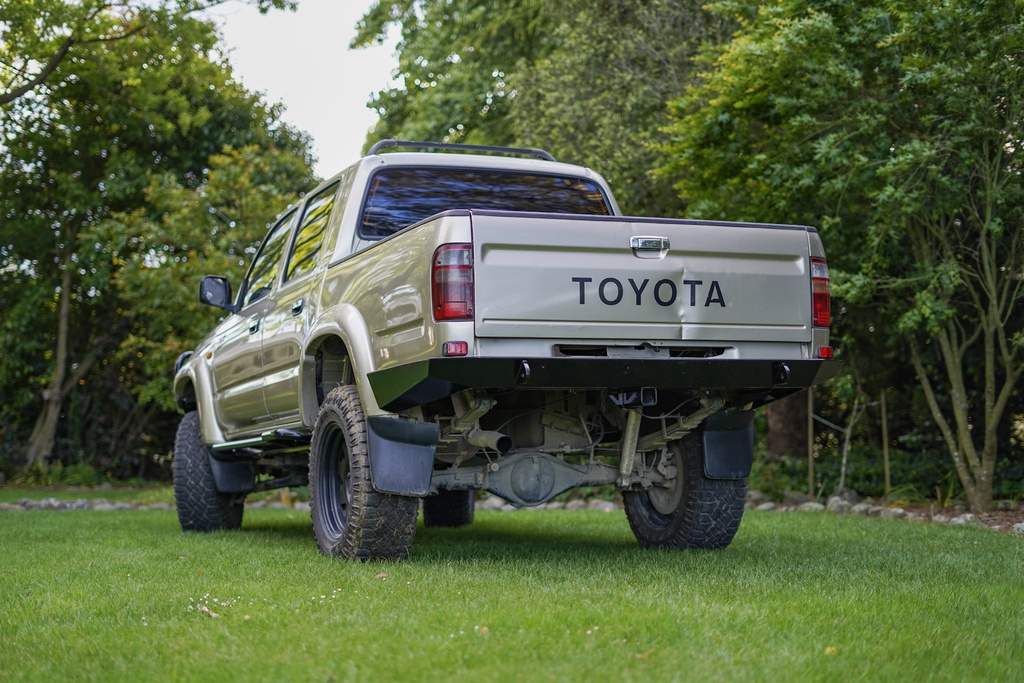

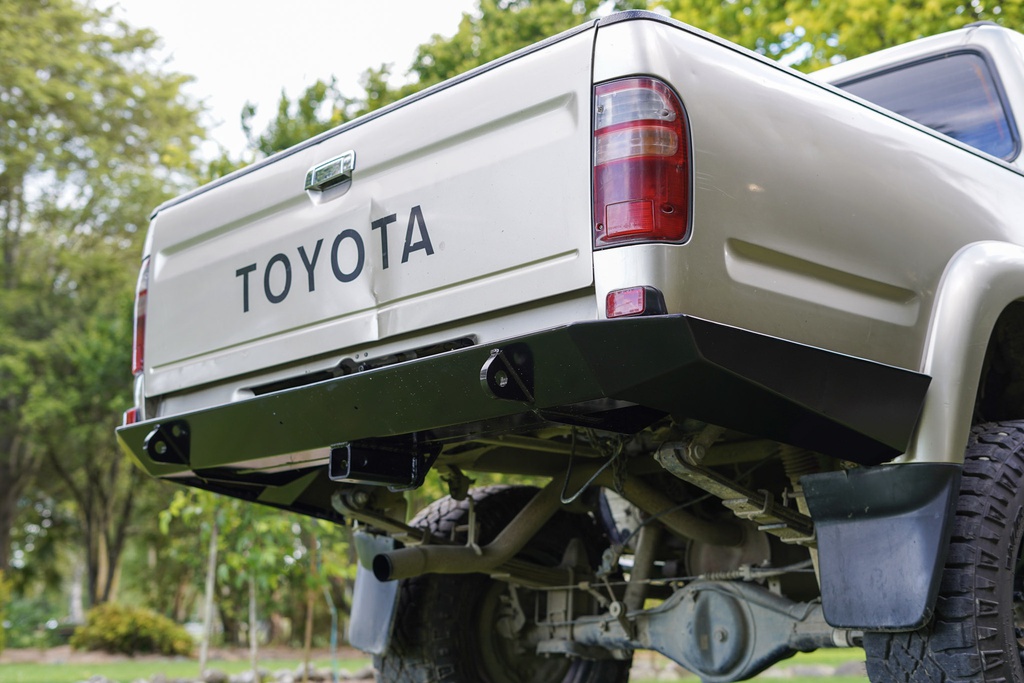

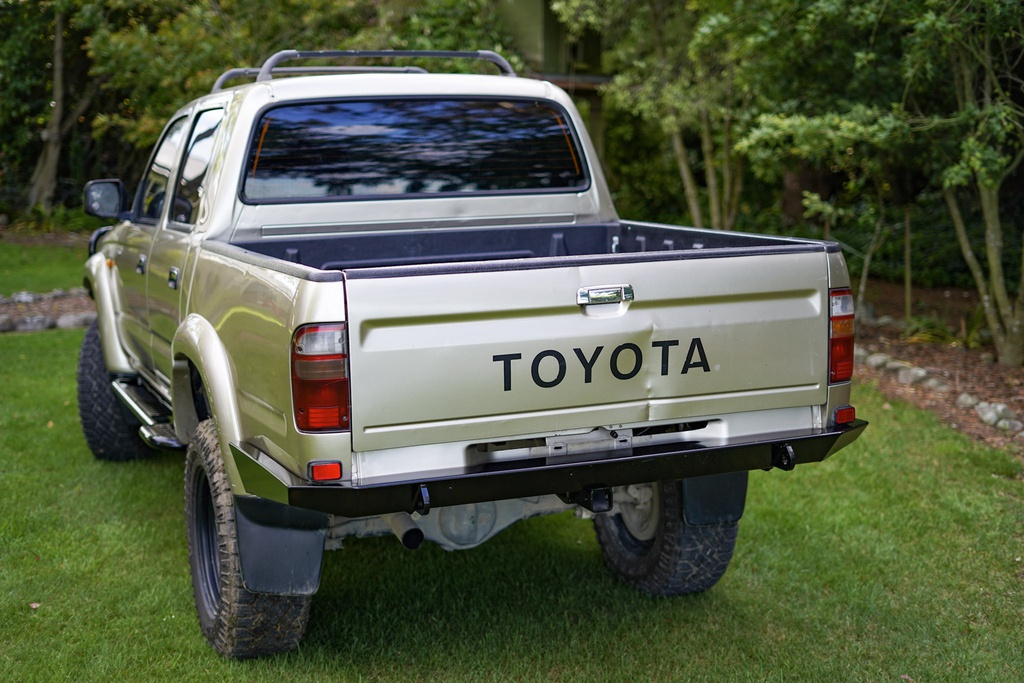

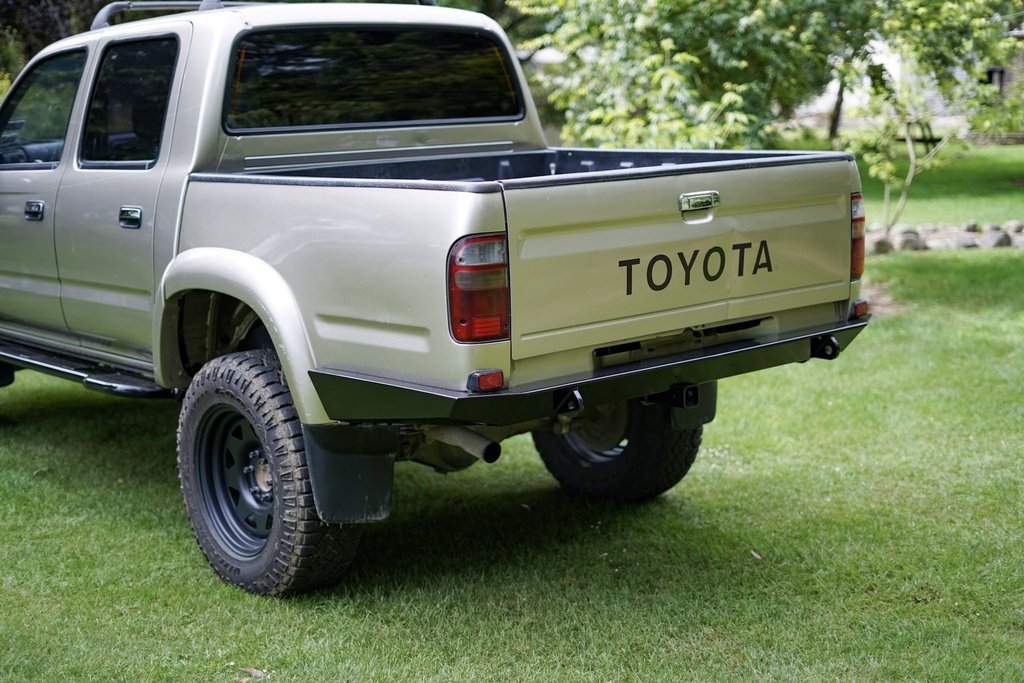

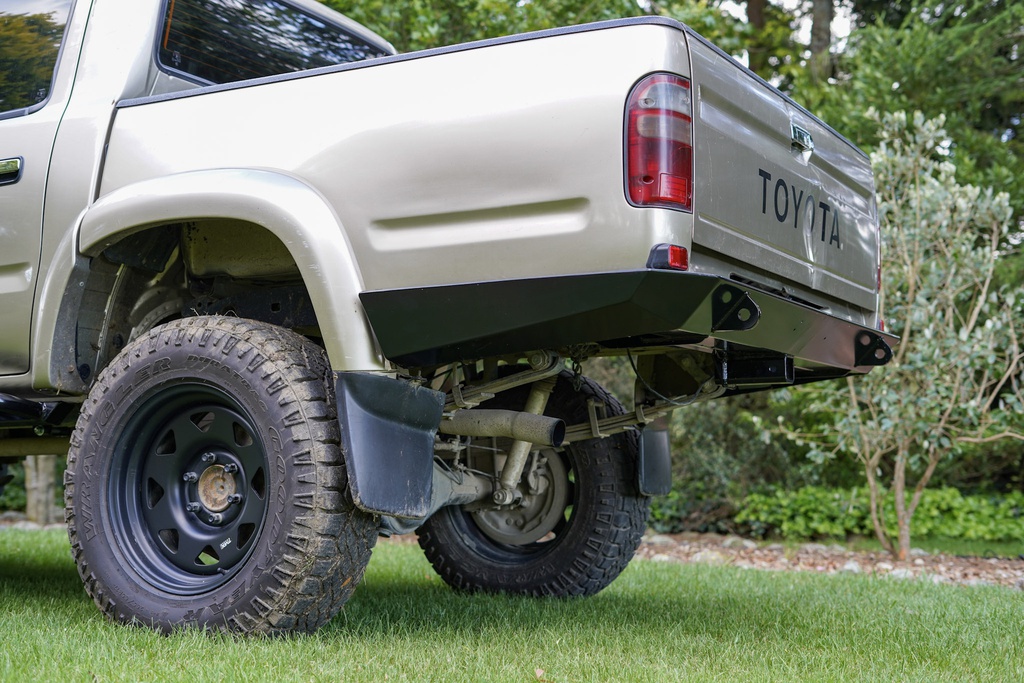

6th Gen Hilux High Clearance Rear Bumper Kit

Toyota Hilux

Toyota

Toyota Toyota Hilux CO107346

ID product: 11433

AUD$ 1,010.68

Choose
your variation

  • Body Lift Adjustment (NOT suspension lift)
      Choose an option
    • 1" Body Lift

      The 1" body lift option is only for if you have a 1" body lift installed on your vehicle. If you have any type of suspension lift (coilovers, new shocks and coils, spacer lifts, leveling kits, etc) you will want to select the "no body lift" option.

      Price: + AUD$ 38.64

    • 2" Body Lift

      The 2" body lift option is only for if you have a 2" body lift installed on your vehicle. If you have any type of suspension lift (coilovers, new shocks and coils, spacer lifts, leveling kits, etc) you will want to select the "no body lift" option.

      Price: + AUD$ 78.49

    • 3" Body Lift

      The 3" body lift option is only for if you have a 3" body lift installed on your vehicle. If you have any type of suspension lift (coilovers, new shocks and coils, spacer lifts, leveling kits, etc) you will want to select the "no body lift" option.

      Price: + AUD$ 102.64

  • Cree LED Lights
      Choose an option
    • Two 24W Cree LED Pod Lights

      Includes two 24W 2300 Lumen CREE LED Lights with a spot/flood combo beam pattern and great adjustability. Simply splice them into your existing factory fog light wiring for an easy install that keeps your factory fog light switch

      Price: + AUD$ 106.26

    • Two 40W Cree LED Pod Lights

      Includes two 40W 3800 Lumen CREE LED Lights with a spot beam pattern and great adjustability. Simply splice them into your existing factory fog light wiring for an easy install that keeps your factory fog light switch

      Price: + AUD$ 143.69

    • Two 24W Cree LED Pod Lights with Full Wiring Harness and Switch

      Includes two 24W 2300 Lumen CREE LED Lights with a spot/flood combo beam pattern and great adjustability. Includes full wiring harness with switch, relay and industry-standard DT connectors

      Price: + AUD$ 150.94

    • Two 40W Cree LED Pod Lights with Full Wiring Harness and Switch

      Includes two 40W 3800 Lumen CREE LED Lights with a spot beam pattern and great adjustability. Includes full wiring harness with switch, relay and industry-standard DT connectors

      Price: + AUD$ 190.79

  • Material
      Choose an option
    • Steel

      Our steel bumpers are constructed out of 3/16” thick P&O hot rolled steel, NOT cheaper mild steel. Compared to aluminum, steel provides high strength and durability and is easier to weld. It also comes in at a pricepoint much lower than aluminum

      Price: + AUD$ 0.00

    • Aluminum

      Our aluminum bumpers are constructed out of ¼” thick 5052 aluminum. Aluminum provides great corrosion resistance and substantial weight savings over steel. While it is still very strong and durable, it will sustain dents and scratches easier than steel if you like to play hard in the rocks

      Price: + AUD$ 1,322.21

  • Rear Quarter Protection Hoops
      Choose an option
    • No

      If you select this option, your bumper will not come with any rear quarter hoops

      Price: + AUD$ 0.00

    • Yes

      This option adds 1.66x0.125" wall CNC-bent round tubing rear quater hoops to your rear bumper. These provide functional protection to the vulnerable rear quarter panels of your vehicle. They can also be used to mount additional lights or act as a step for accessing roof racks.

      Price: + AUD$ 132.83

  • Recessed 2" Receiver
  • Swing Out Carrier
      Choose an option
    • Dual Swing Out Carrier with Dual Gas Can Holder

      This option gives you two swing arms with space to mount a full size spare tire, hilift jack, and two 20L NATO gas cans. The gas can holder is lockable and is included with this option. The swing out arms use a 2/3 – 1/3 split to maximize gear-mounting options. Please see our "Rear Swing Out" FAQ section for more details on our Swing Out product options.

      Price: + AUD$ 1,334.29

    • Single Swing Out Carrier

      This option gives you a single swing arm with space to mount a full size spare tire and tabs suitable for mounting a hilift jack and other recovery gear. This swing arm spans roughly 2/3 of the width of the rear hatch/ tailgate. This option does not include our dual gas can holder.

      Price: + AUD$ 784.88

  • 3/4" Recovery Shackle (Pair)
      Choose an option
    • No

      Omits the pair of 3/4" recovery shackles. Your bumper will still come with built in attachment points for the recovery shackles of your choice.

      Price: + AUD$ 0.00

    • Yes

      Adds a pair of 3/4" Recovery shackles. These shackles have a 7/8" diameter pin, black powder coat finish, and rubber isolators to eliminate noise and protect your other recovery equipment

      Price: + AUD$ 47.09

AUD$ 1,010.68 AUD$ 1,010.68 1010.6800000000001 AUD

CAD$ 837.00

Add to Cart
"6th Gen Hilux High Clearance Rear Bumper Kit" has been added to your cart.
description

The profile of this bumper has been designed with maximum ground clearance and approach angles put first. The bumper sits as high and tight to the front of the 6th Generation 1997-2004 Toyota Hilux, while the angled lower faces will smoothly slide over obstacles and ensure you do not get hung up on the trail. The side wings of this bumper wrap around to the front wheel wells and tie directly into the main frame mounting plates for true offroad protection. These side wings will take a serious hit without flexing or deflecting into the vehicle body. We know that most Toyota Hilux owners want to run oversized tires and more aggressive wheel offsets. This can create interference issues with the stock front bumper. We have thought ahead and specifically designed these bumper side wings to easily clear 37" tires. This bumper uses a total of 10 factory mounting points to solidly mount it to the frame. While this is certainly overkill, this distributes impact and winching forces evenly across your frame and makes for one of the strongest mounting interfaces of any bumper on the market.

We finished this bumper off with integrated light buckets for surface mount LED pod lights (custom light cut outs available by request), an integrated winch mount to accept all standard 8-12k lb winches with removable solenoids, and heavy duty 9/16" (15mm) thick recovery points that are placed directly in line with the 6th gen Toyota Hilux frame to eliminate any leveraging effects. These recovery points are formed by laser cut steel plates that pass through the bumper shell and bolt directly to the Toyota Hilux frame as part of the bumper's main mounting brackets. The recovery points then get welded to the in and outside of the bumper shell. These factors all combine to form recovery points that minimize stress on your Toyota Hilux frame and are essentially indestructible! What could make this bumper even better? The low profile design has resulted in very reasonable weights of 81.6 lbs (37.1 kg) for the steel bumper and 40.3 lbs (18.3 kg) for the aluminum version. Considering that this bumper replaces your factory bumper and associated components (23.1lbs (10.5kg)), the resulting weight increase to your Toyota Hilux is negligible at best. This minimizes added stress on your vehicle, maintains precious payload capacity, and allows you to keep your factory suspension if desired.

•DIY Weld-together kit - This bumper arrives as precision CNC-laser cut and bent pieces that you then weld together (detailed assembly instructions included)
•CNC-bent plates greatly reduces amount of welding and grinding required by you and makes for a cleaner finished product
•NO drilling, cutting or welding of the vehicle required - this bumper can be installed and removed from your 6th Generation 1997-2004 Toyota Hilux without a trace that it was ever there!
•Low profile design is engineered to provide maximum ground clearance and complement the factory body lines - bumper protrudes less than 4" (100mm) from the vehicle body in the center.
•Fits 4 door and extended cab Models
•Heavy duty 3/16" (5mm) plate steel construction for maximum offroad strength and durability
•Optional 1/4" 5052 aluminum for a lightweight yet very durable overlanding setup (41.3lb weight savings)

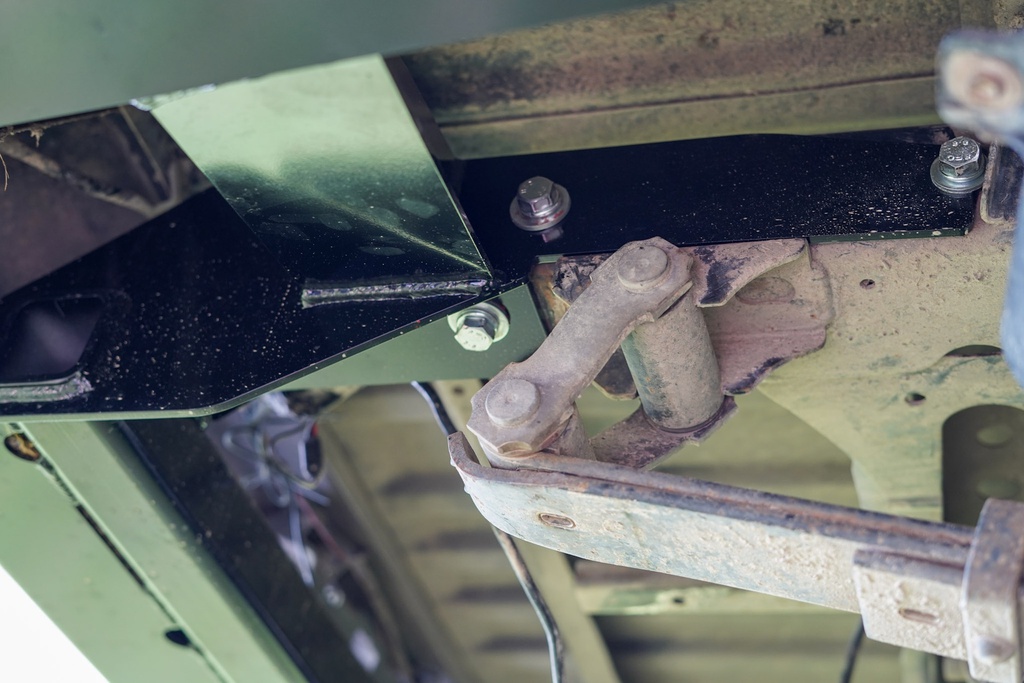

•Bolts directly to frame using a total of 10 factory mounting points
•Protected winch mount fits all standard 8000-12,000lb winches with removable solenoids
•Reinforced 9/16" (15mm) thick clevis mounts allow the use of 3/4" D-Rings and pull directly off of the frame for confident recoveries of heavily loaded vehicles
•Four integrated LED pod mounts – included slotted mounting tabs give tons of adjustment to fit a variety of lights
•Integrated license plate mount
•Optional heavy duty grill and headlight tubing hoops for added protection
•Center-only bumper section is available by special request for those who would like to build their own hybrid tube bumper, please send us an email for more info!

Read more
additionnal information
Body Lift Adjustment (NOT suspension lift)
None | 1" Body Lift | 2" Body Lift | 3" Body Lift
Cree LED Lights
None | Two 24W Cree LED Pod Lights | Two 40W Cree LED Pod Lights | Two 24W Cree LED Pod Lights with Full Wiring Harness and Switch | Two 40W Cree LED Pod Lights with Full Wiring Harness and Switch
Material
Aluminum (+1095) | Steel
Rear Quarter Protection Hoops
No | Yes
Recessed 2" Receiver
Yes(+65) | No
Swing Out Carrier
Dual Swing Out Carrier with Dual Gas Can Holder | None | Single Swing Out Carrier
3/4" Recovery Shackle (Pair)
No | Yes
bumper weight

Steel base bumper weight (includes hitch receiver and crossmember): 113.9 lbs (51.8 kg)

Aluminum base bumper weight (includes hitch receiver and crossmember): 55.7 lbs (25.3 kg)


Factory Bumper + Hitch Receiver weight removed: 99 lbs (45kg)
