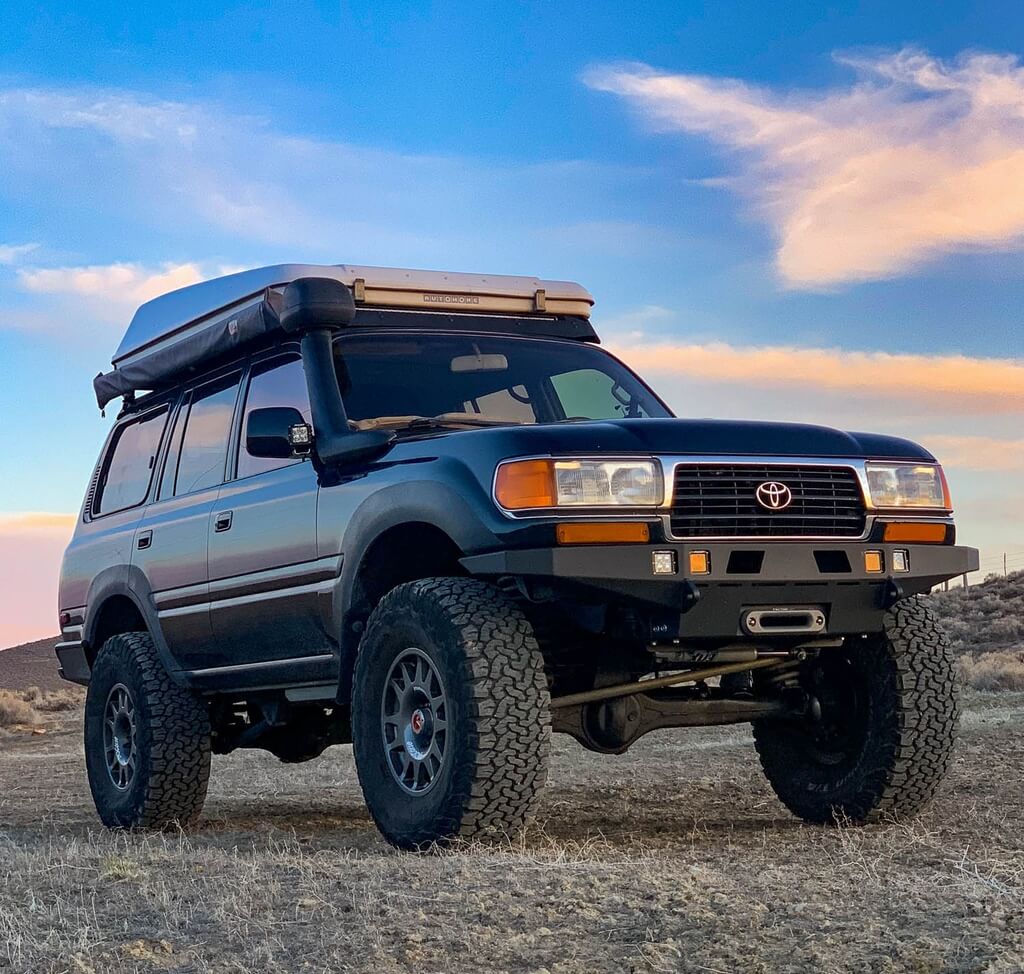

80 Series Land Cruiser High Clearance Front Bumper Kit

    This is a high clearance DIY weld-together winch bumper kit for the 80 Series Toyota Land Cruiser. It features a bolt-on design, protected winch mount, and one of the best approach angles of any bumper on the market. This bumper allows you to forget about approach angle and substantially improves the offroad capability of your Land Cruiser! It offers excellent protection from rocks, trees and animal strikes and has been kept to a weight of 72lbs through careful design work. And unlike many other bumpers on the market, absolutely no modification of the vehicle body or frame is required and the vehicle can be easily returned back to stock if desired.
    The main section of this bumper is CNC-bent out of a single piece of  3/16" P&O Steel. This greatly reduces the amount of welding and grinding required by you and makes for a cleaner finished product. If you are paying to have the bumper assembled by a welding shop, this significantly lowers the cost.

The profile of this bumper has been designed with maximum ground clearance and approach angles put first. The bumper sits as high and tight to the front of the 80 Series Land Cruiser as possible, while the angled lower faces will smoothly slide over obstacles and ensure you do not get hung up on the trail. The side wings of this bumper wrap around to the front wheel wells and tie directly into the main frame mounting plates for true offroad protection. These side wings will take a serious hit without flexing or deflecting into the vehicle body. We know that most Land Cruiser owners want to run oversized tires and more aggressive wheel offsets. This can create interference issues with the stock front bumper. We have thought ahead and specifically designed these bumper side wings to easily clear 37" tires.

We finished this bumper off with integrated light buckets for surface mount LED pod lights (custom light cut outs available by request), an integrated winch mount to accept all standard 8-12k lb winches with removable solenoids, and heavy duty 9/16" recovery points that are placed directly in line with the Land Cruiser frame to eliminate any leveraging effects. These recovery points are formed by laser cut steel plates that pass through the bumper shell and bolt directly to the Land Cruiser frame as part of the bumper's main mounting brackets. The recovery points then get welded to the in and outside of the bumper shell. These factors all combine to form recovery points that minimize stress on your Land Cruiser frame and are essentially indestructible! What could make this bumper even better? The low profile design has resulted in very reasonable weights of 72lbs for the steel bumper and 35lbs for the aluminum version. Considering that this bumper replaces your factory bumper and associated components, the resulting weight increase to your Land Cruiser is minimal. This minimizes added stress on your vehicle, maintains precious payload capacity, and allows you to keep your factory suspension if desired.

• DIY Weld-together kit - This bumper arrives as precision CNC-laser cut and bent pieces that you then weld together (detailed assembly instructions included)

• CNC-bent plates greatly reduces amount of welding and grinding required by you and makes for a cleaner finished product

• NO Drilling, cutting or welding of the actual vehicle required - this bumper can be installed and removed from your Land Cruiser without a trace that it was ever there!

• Low profile design is engineered to provide maximum ground clearance and complement the factory body lines - bumper protrudes only 3" from center of grill!

• Heavy duty 3/16" plate steel construction for maximum offroad strength and durability

• Optional 1/4" 5052 aluminum for a lightweight yet very durable overlanding setup (37lb weight savings)

• Bolts directly to frame using a total of 12 factory mounting points - no drilling required

• Protected winch mount fits all standard 8000-12,000lb winches with removable solenoids

• Reinforced 9/16" thick clevis mounts allow the use of 3/4" D-Rings and pull directly off of the frame for confident recoveries of heavily loaded vehicles

• Four integrated LED pod mounts – included slotted mounting tabs give tons of adjustment to fit a variety of lights

• Integrated license plate mount

• Optional heavy duty grill and headlight tubing hoops for added protection

• Center-only bumper shown in some of the photos is available by special request, please send us an email for more info!
