90 Series Land Cruiser High Clearance Front Bumper Kit

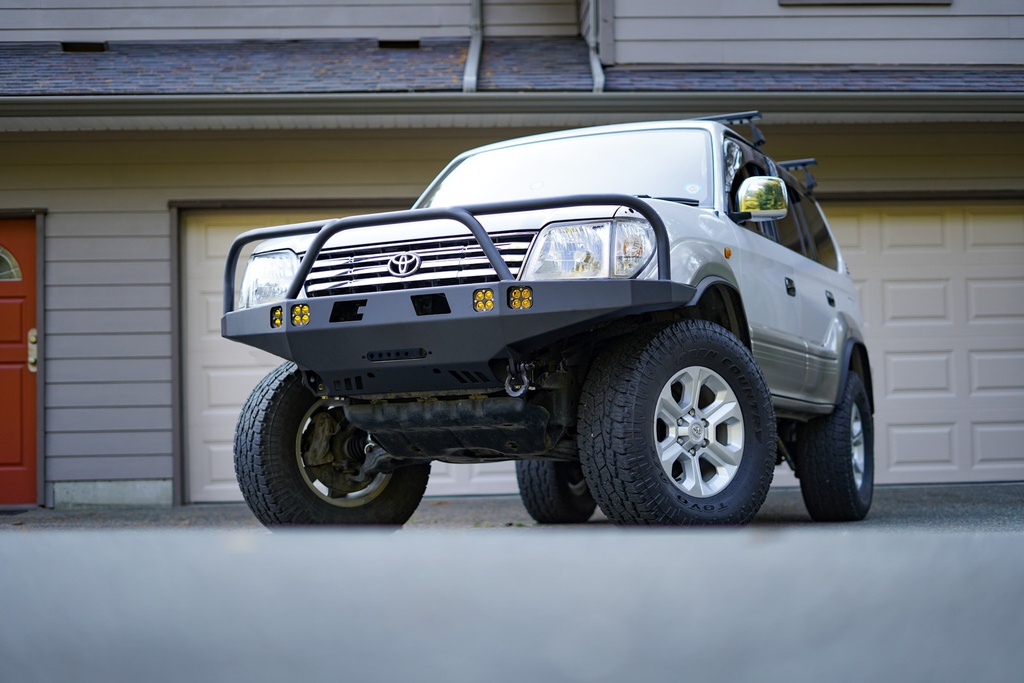

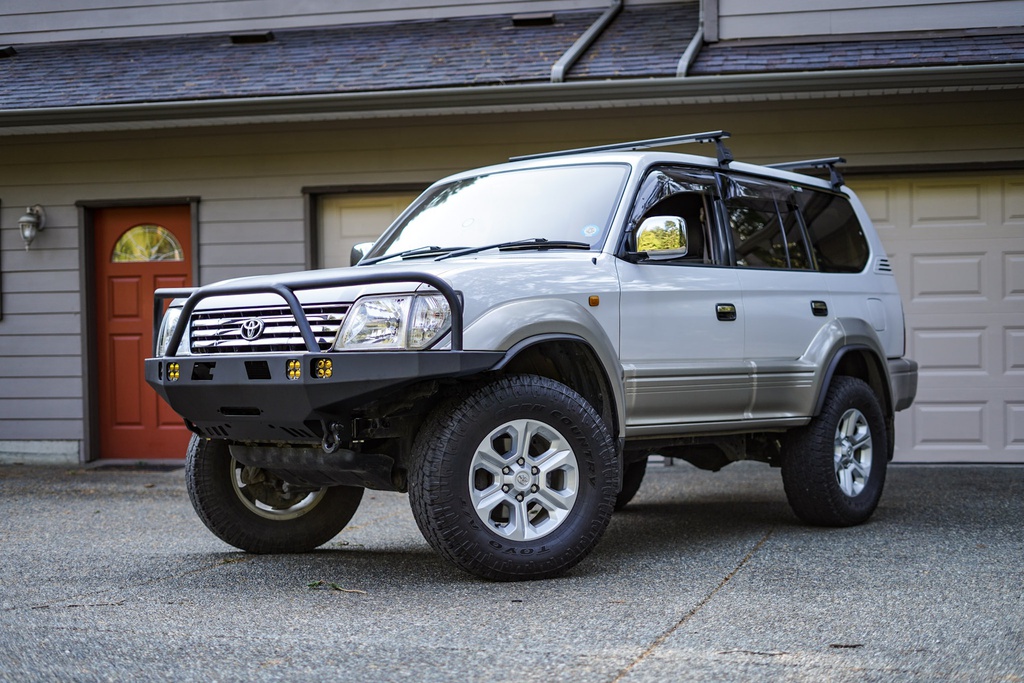

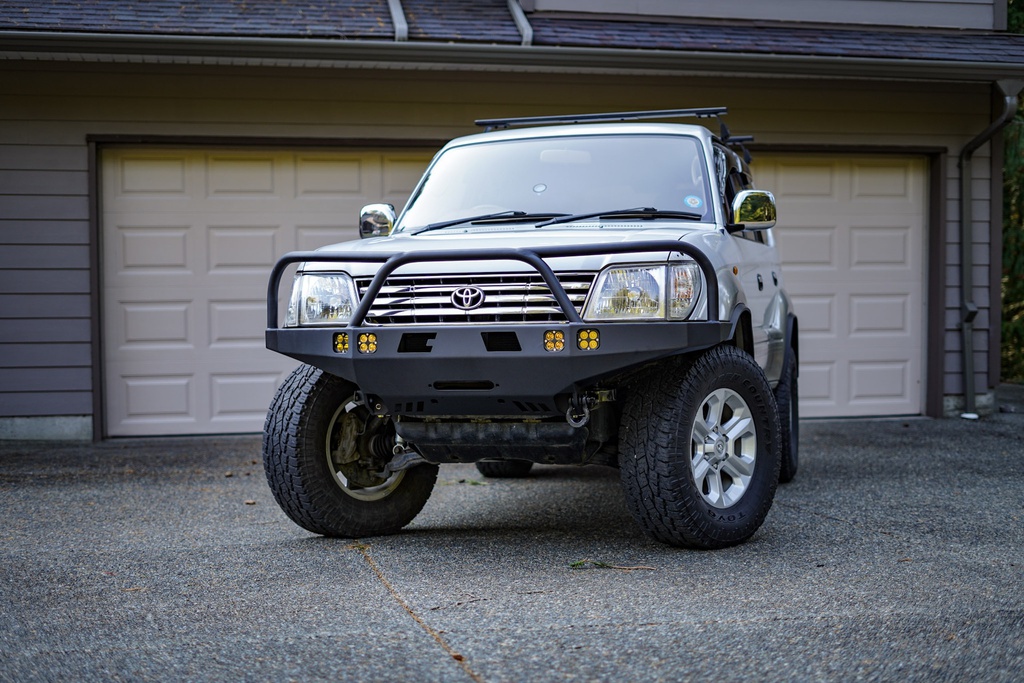

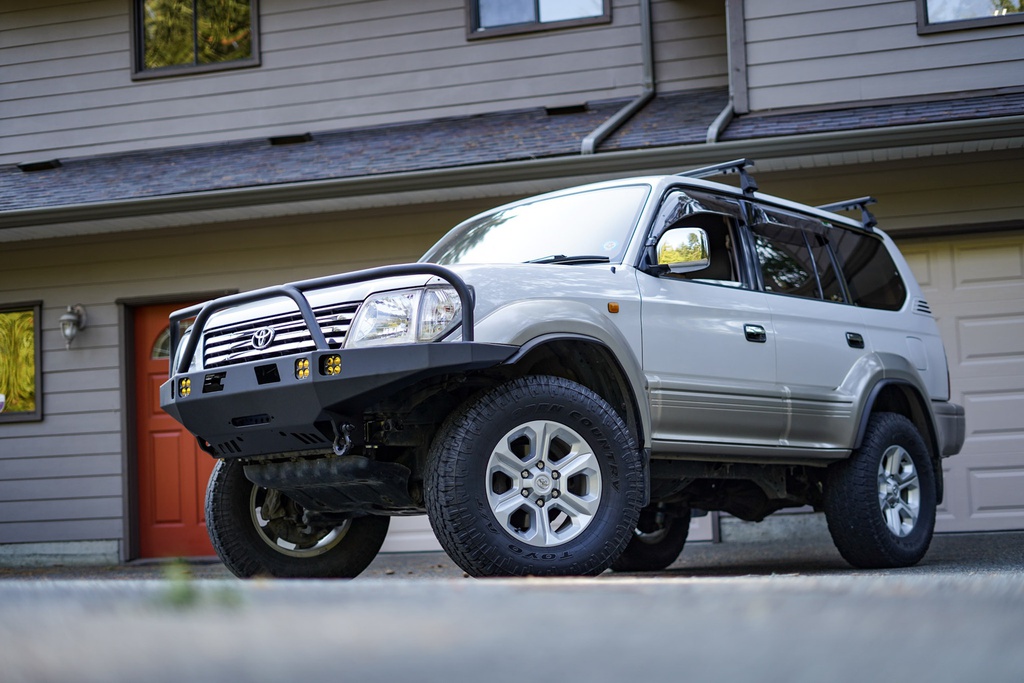

The profile of this bumper has been designed with maximum ground clearance and approach angles put first. The bumper sits as high and tight to the front of the 90 Series Land Cruiser Prado (1996-2002) as possible, while the angled lower faces will smoothly slide over obstacles and ensure you do not get hung up on the trail. The side wings of this bumper wrap around to the front wheel wells and tie directly into the main frame mounting plates for true offroad protection. These side wings will take a serious hit without flexing or deflecting into the vehicle body. We know that most Land Cruiser owners want to run oversized tires and more aggressive wheel offsets. This can create interference issues with the stock front bumper. We have thought ahead and specifically designed these bumper side wings to easily clear 35" tires.

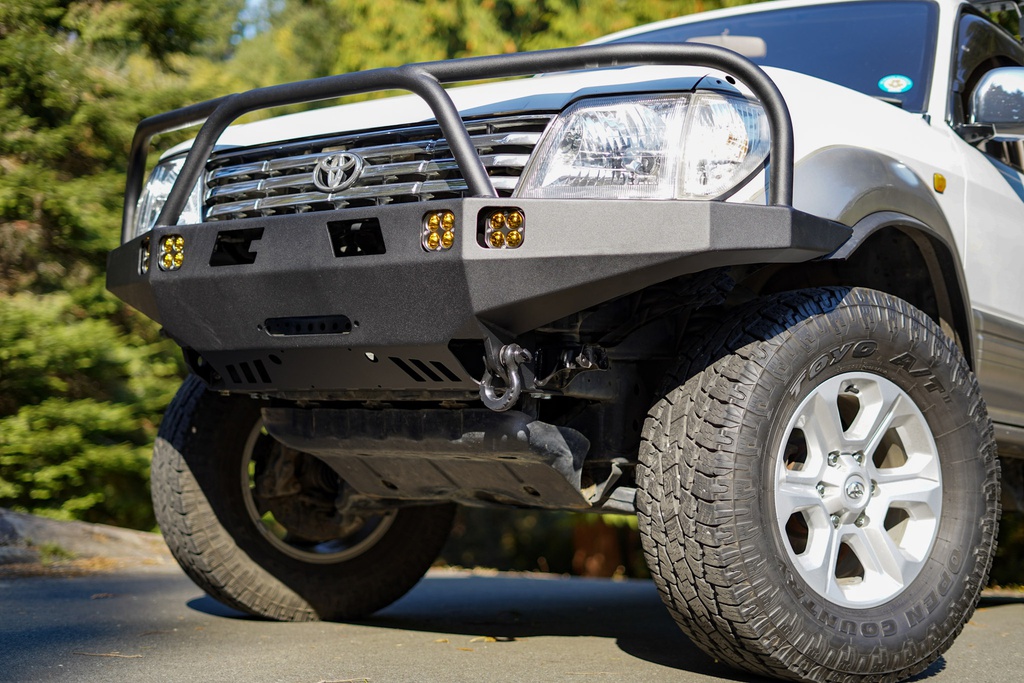

We finished this bumper off with four integrated light buckets for surface mount LED pod lights (custom light cut outs available by request), an integrated winch mount to accept all standard 8-12k lb winches with removable solenoids, and heavy duty 9/16" recovery points that are placed directly in line with the 90 Series frame to eliminate any leveraging effects. These recovery points are formed by laser cut steel plates that pass through the bumper shell and tie directly into the 90 Series frame as part of the bumper's main mounting brackets. The recovery points then get welded to the in and outside of the bumper shell. These factors all combine to form recovery points that minimize stress on your 90 Series frame and are essentially indestructible! What could make this bumper even better? The low profile design has resulted in very reasonable weights of 86lbs for the steel bumper and 42lbs for the aluminum version. Considering that this bumper replaces your factory bumper and associated components, the resulting weight increase to your 90 Series is minimal (55lbs for steel bumper, 11lbs for aluminum bumper). This minimizes added stress on your vehicle, maintains precious payload capacity, and allows you to keep your factory suspension if desired.

•DIY Weld-together kit - This bumper arrives as precision CNC-laser cut pieces that you then weld together (detailed assembly instructions included)

•CNC-bent plates greatly reduces amount of welding and grinding required by you and makes for a cleaner finished product

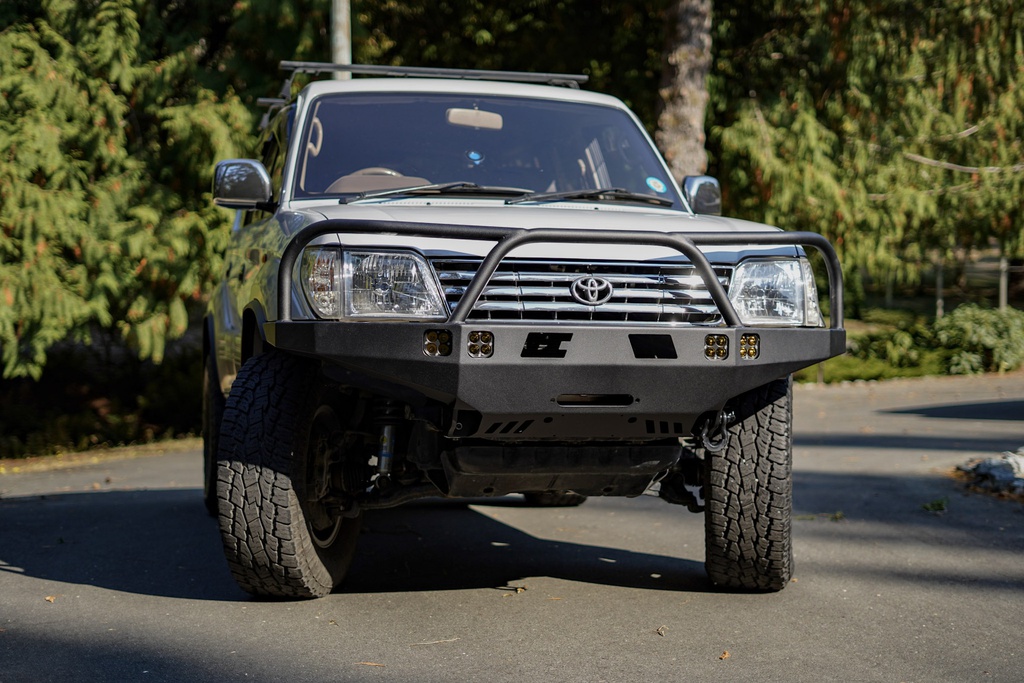

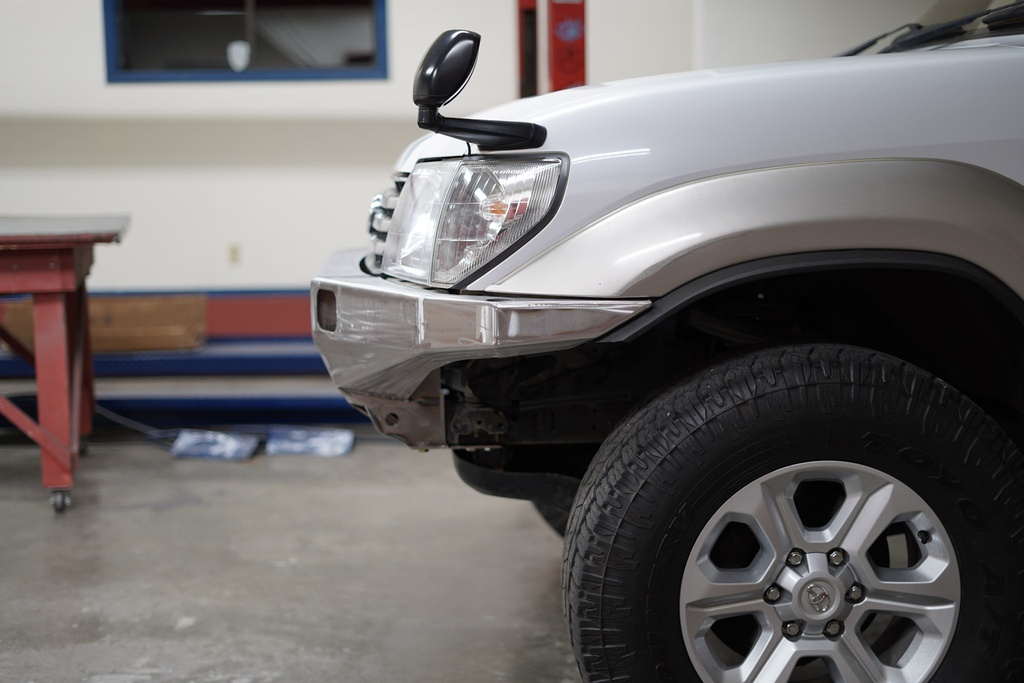

• Low profile design is engineered to provide maximum ground clearance and complement the factory body lines - this bumper protrudes less than 4" from the center of the grill!

• Heavy duty 3/16" plate steel construction for maximum offroad strength and durability

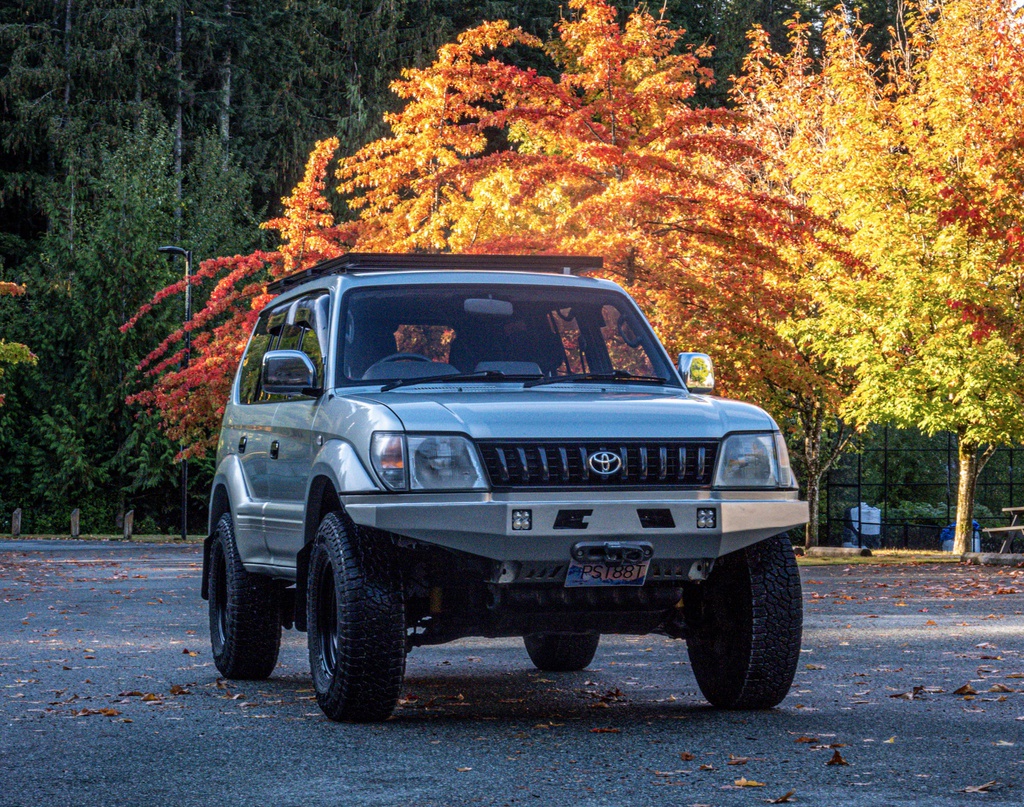

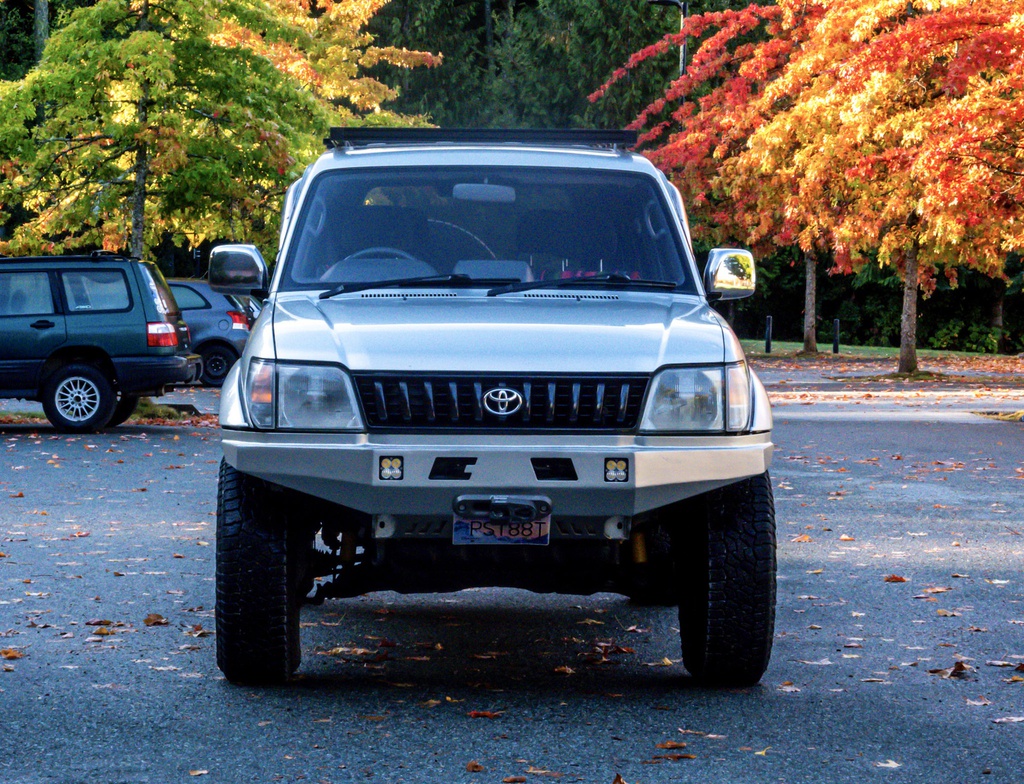

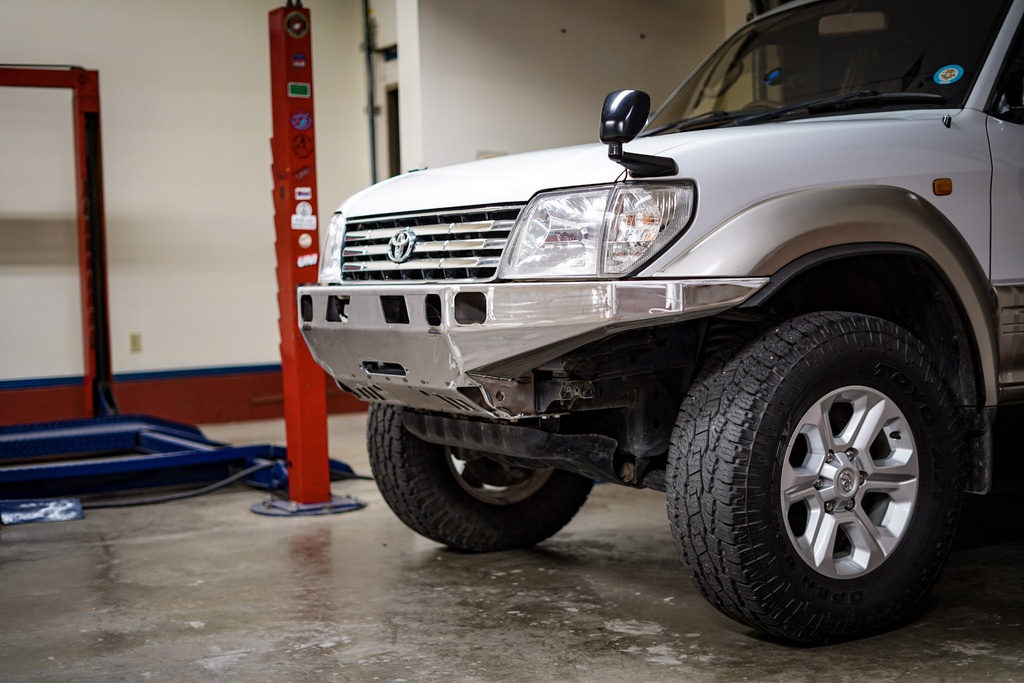

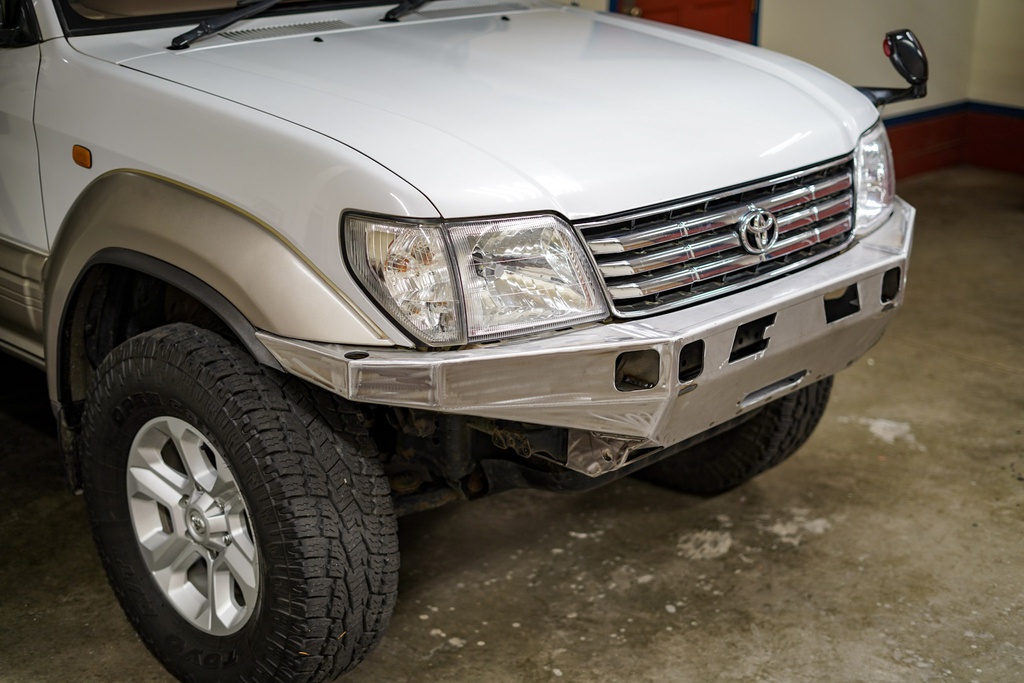

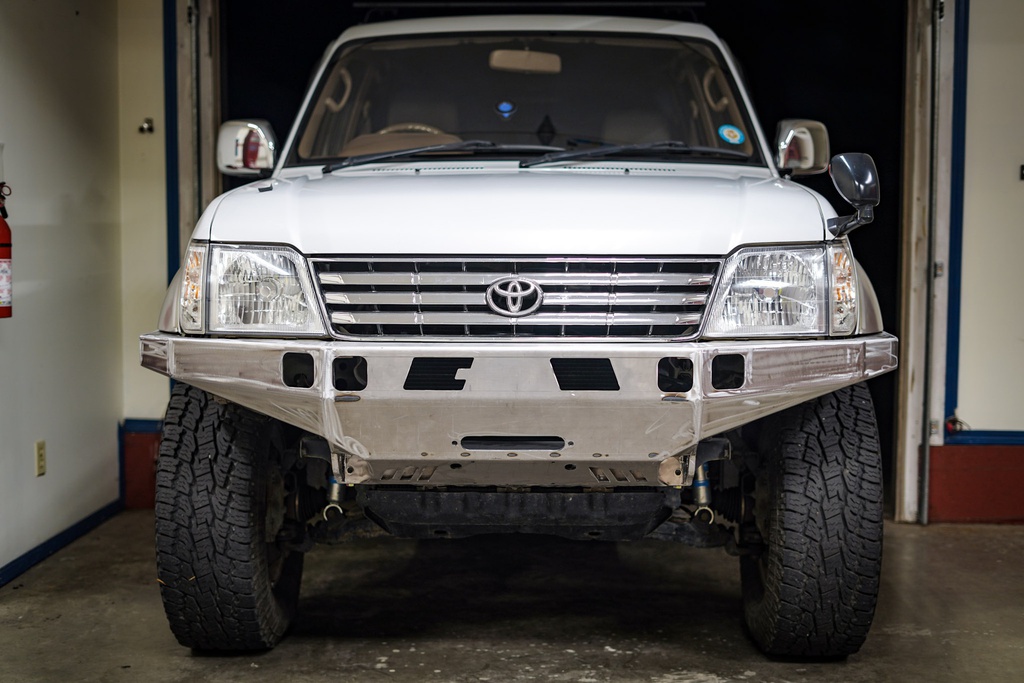

• Optional 1/4" 5052 aluminum for a lightweight yet very durable overlanding setup (44lb weight savings)

• Bolts directly to frame using a total of 8 mounting points

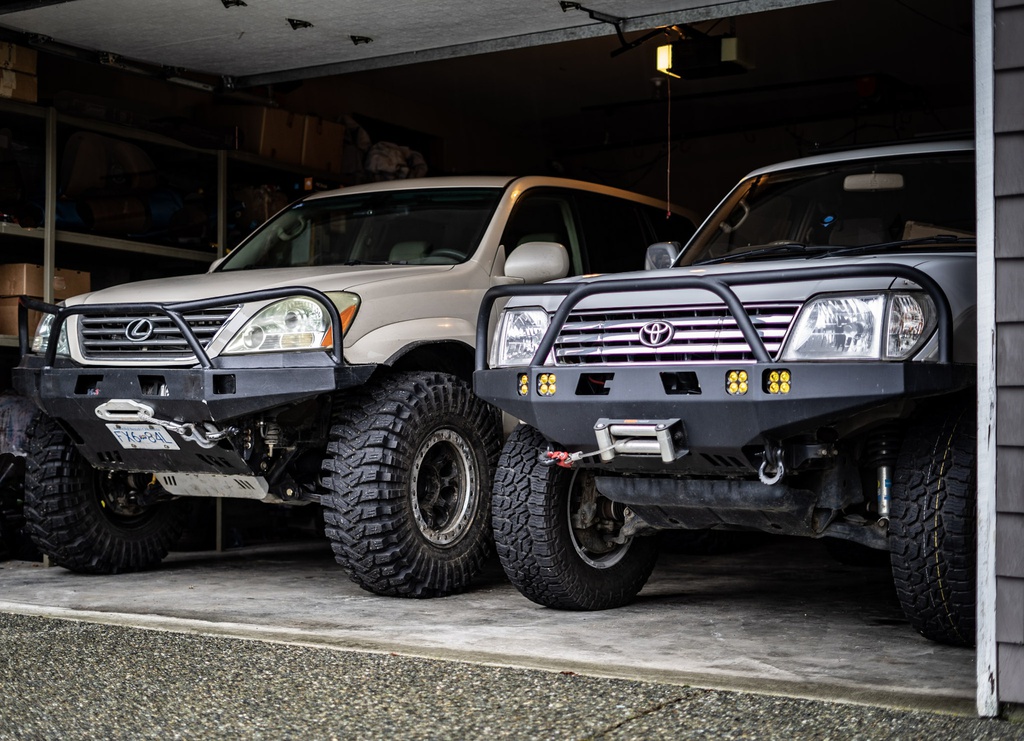

•Protected winch mount fits all standard 8000-12,000lb winches with removable solenoids

•Integrated 9/16" thick clevis mounts allow the use of 3/4" D-Rings and pull directly off of the frame for confident recoveries of heavily loaded vehicles

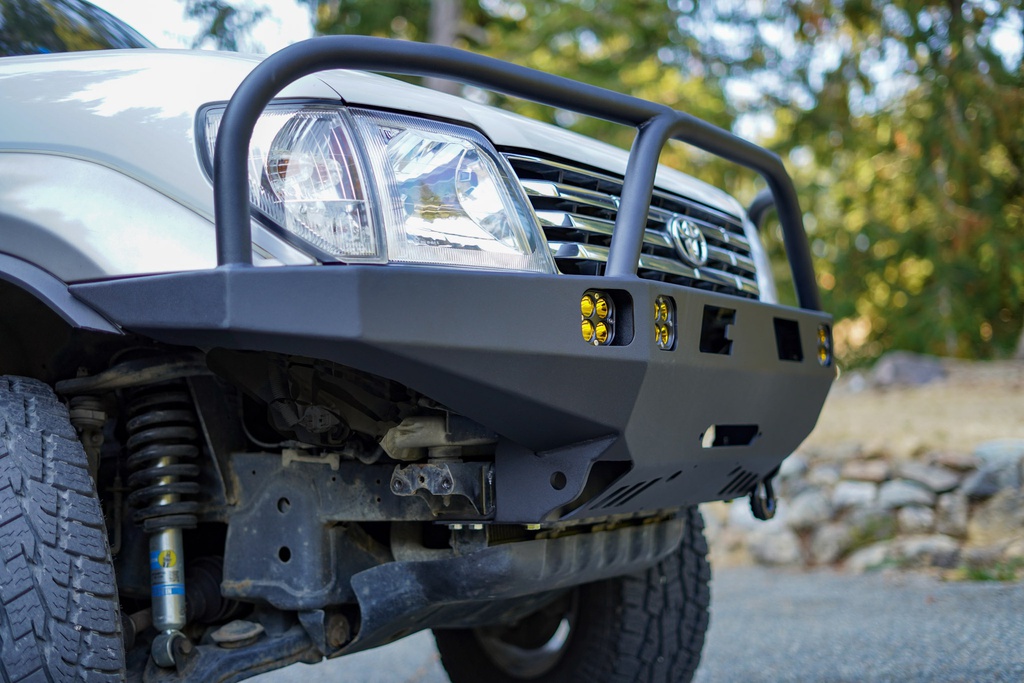

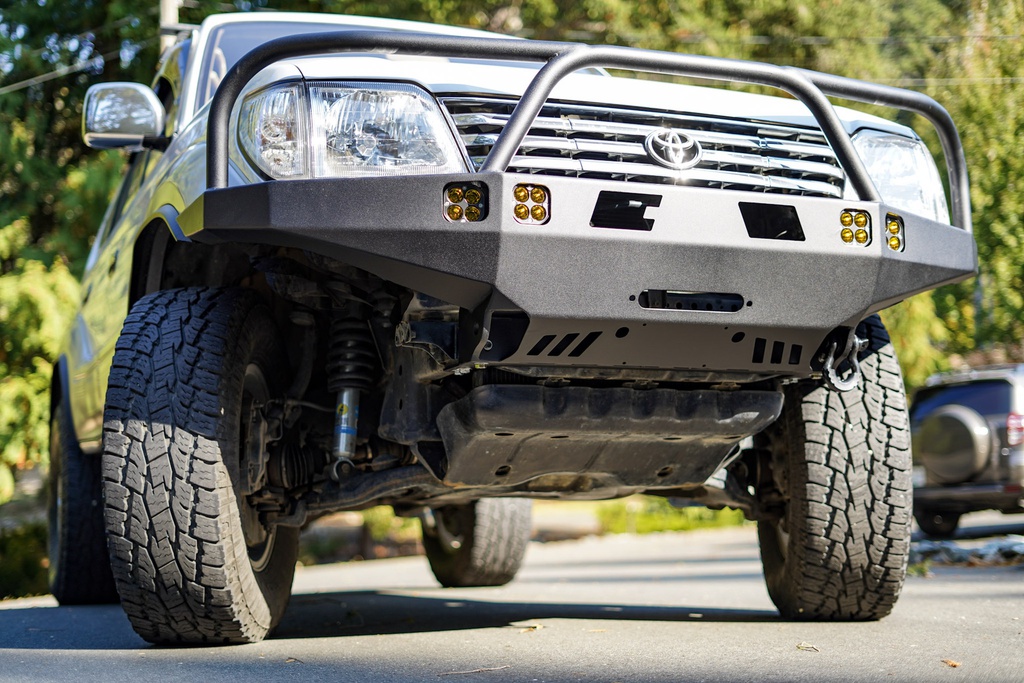

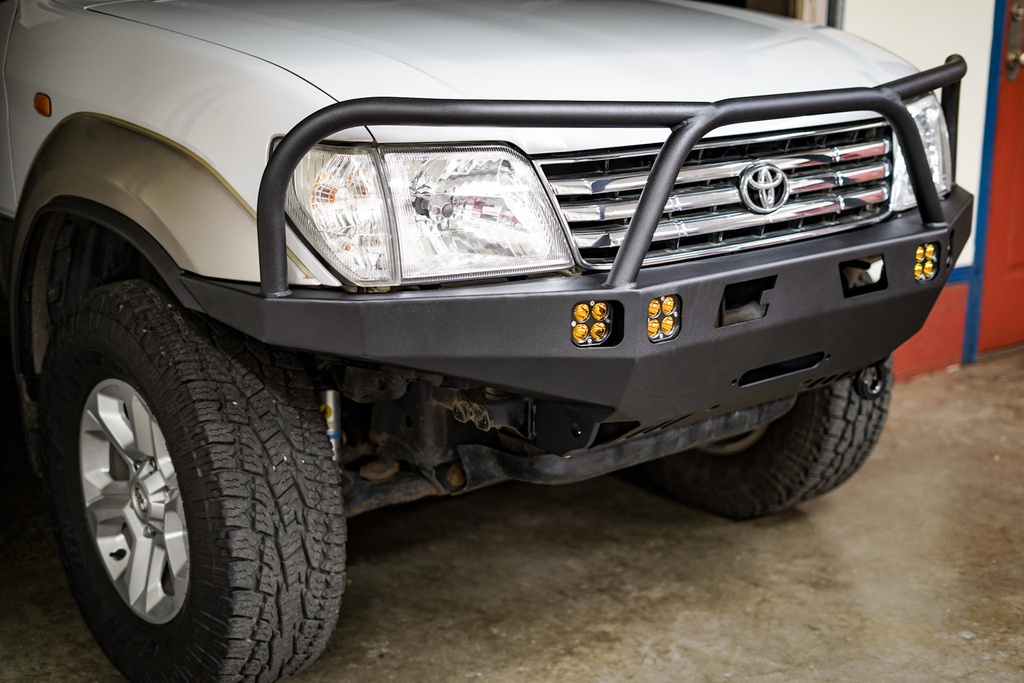

•Four integrated LED pod mounts – included slotted mounting tabs give tons of adjustment to fit a variety of lights

• Integrated license plate mount

• Integrated turn signal cut outs

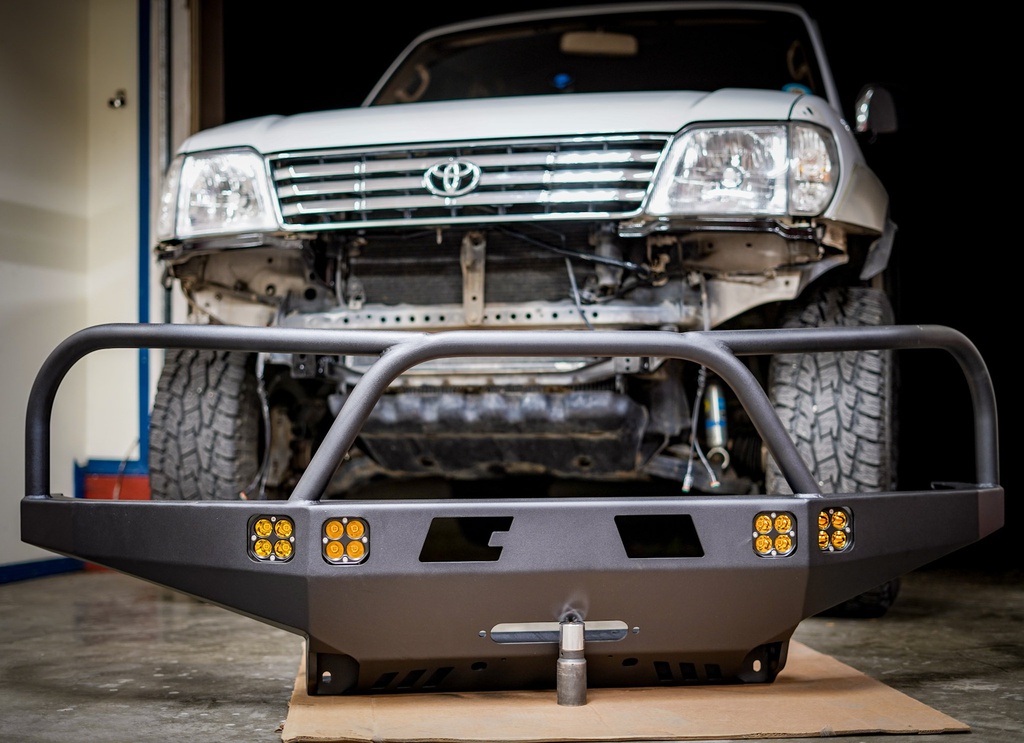

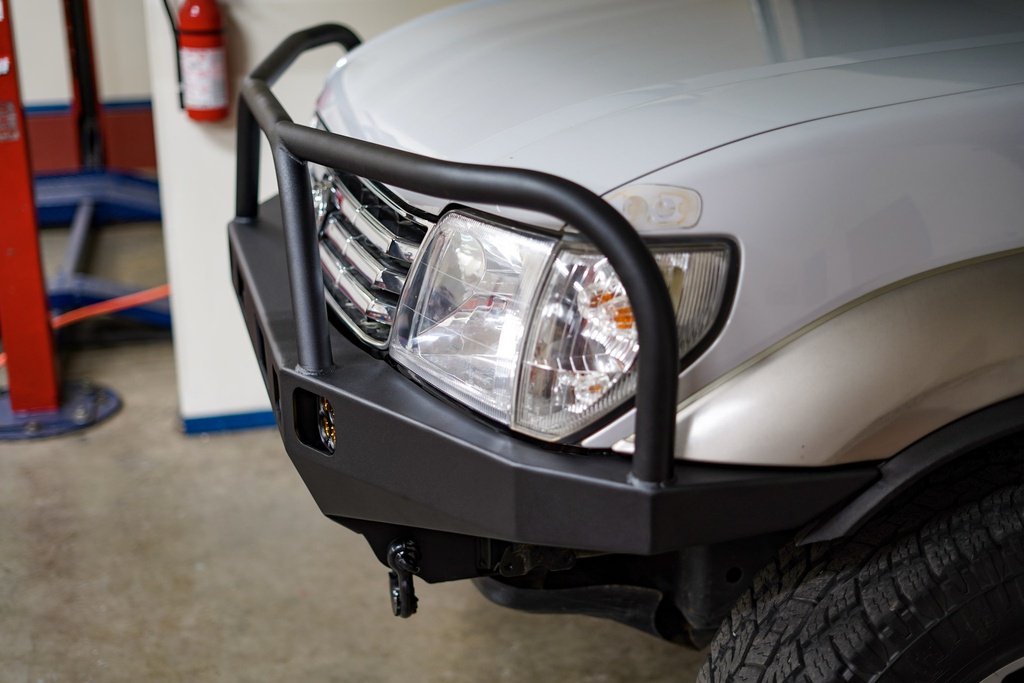

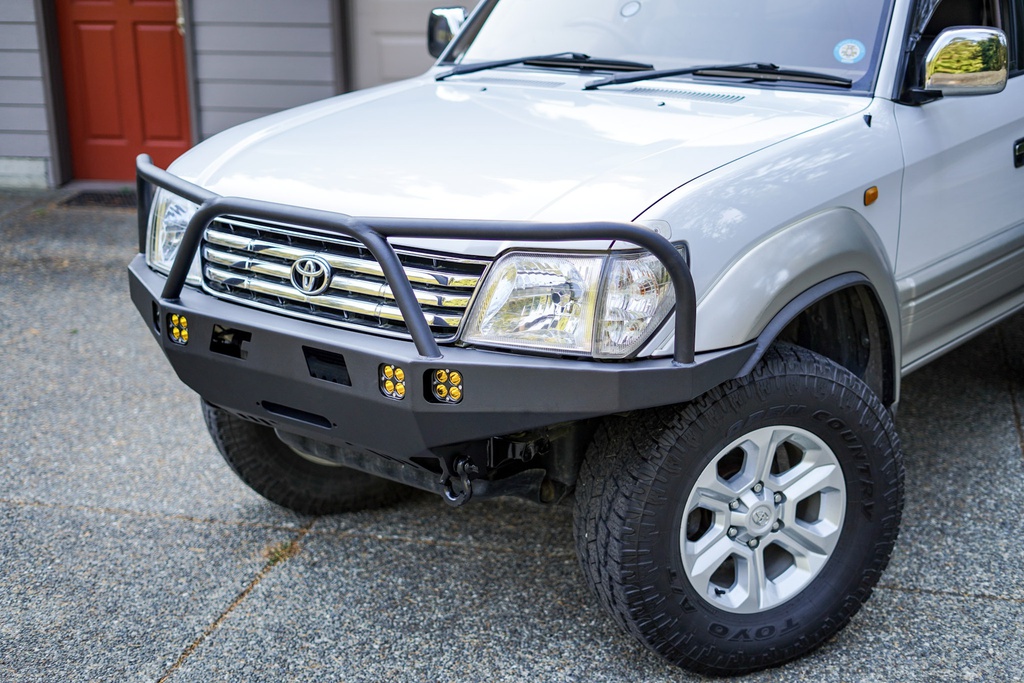

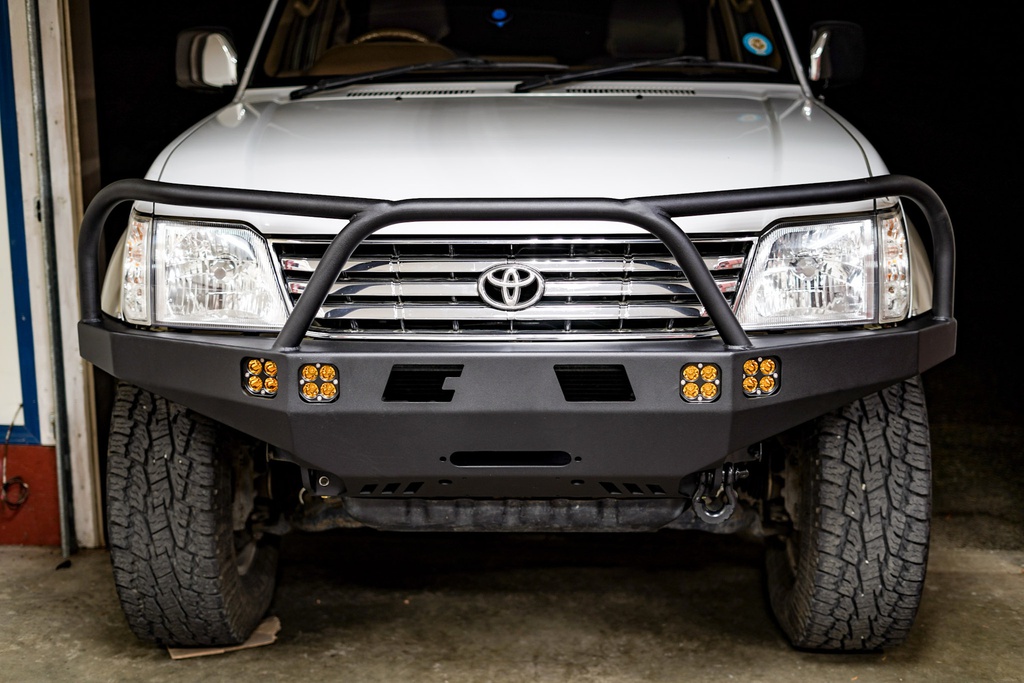

• Optional heavy duty 0.120" wall grill and headlight tubing for added protection

•The bumper center section can be ordered on its own by special request if you would like to make your own hybrid tubing side wings (Please email us for details)
