FJ Cruiser High Clearance Rear Bumper Kit

***We have one brand new welded and powder coated display model for sale for $1399CAD. This unit was carefully installed on the FJ for these photos and then removed right away. It's a base bumper but we can also add any of the options of your choice. Local pickup only.

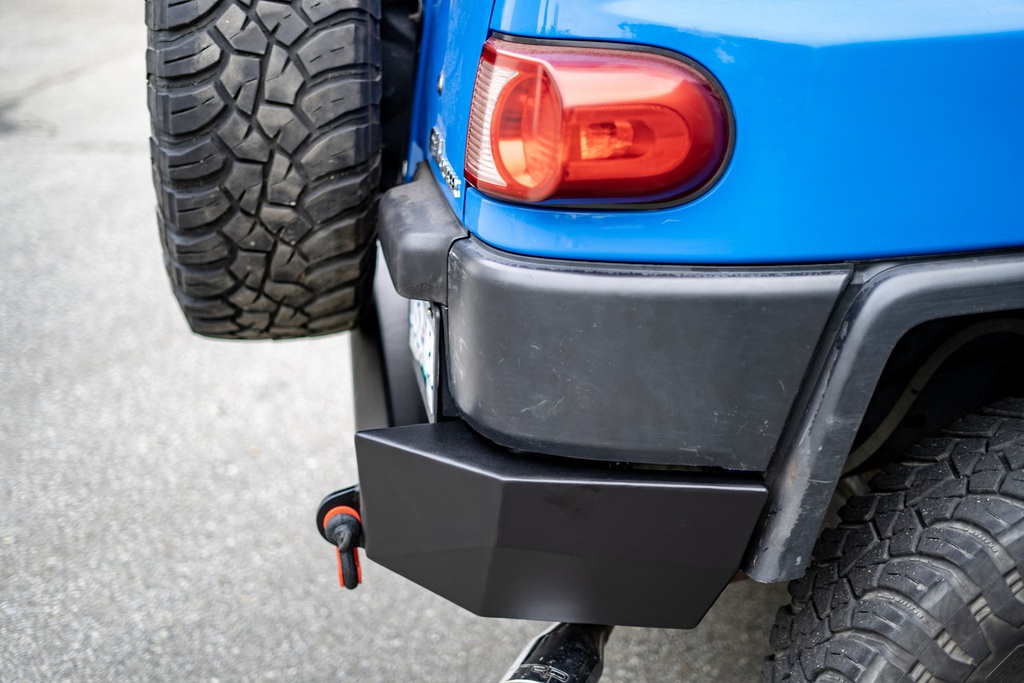

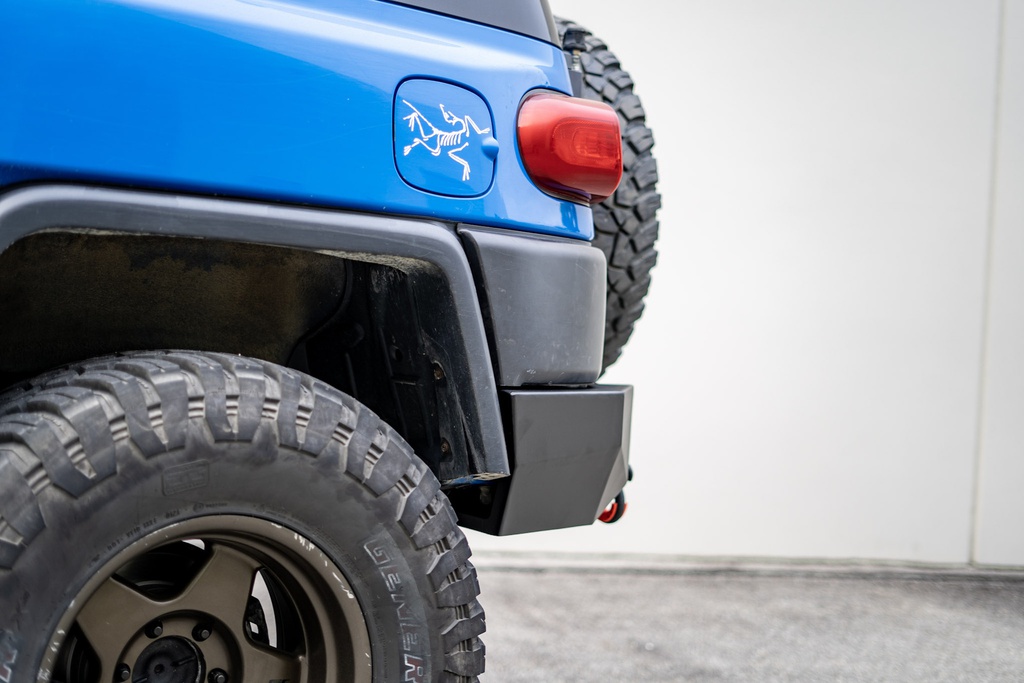

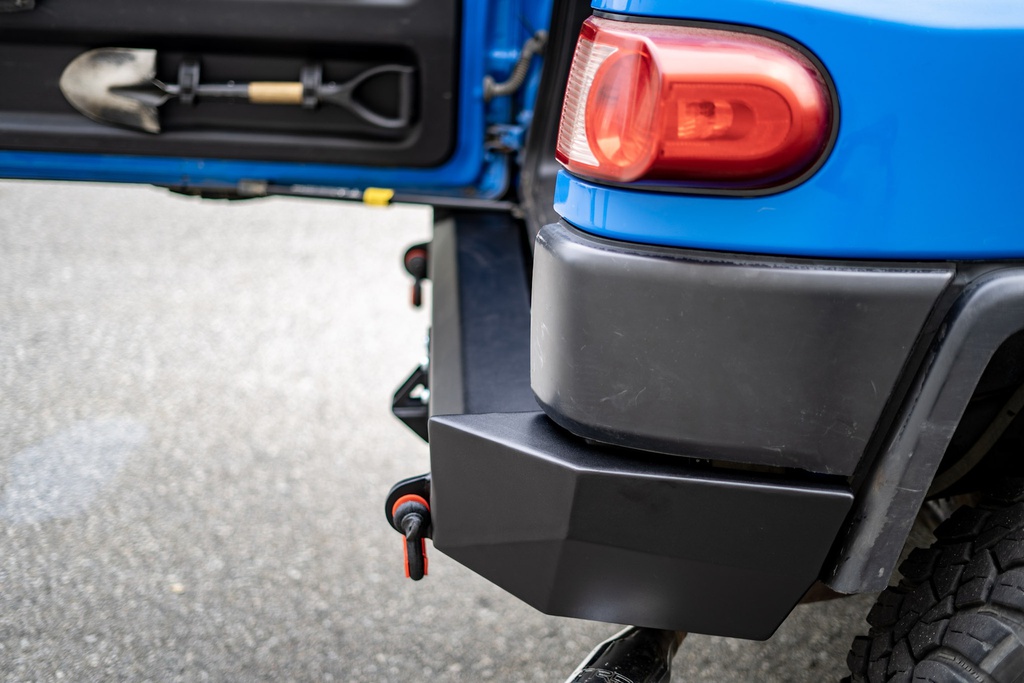

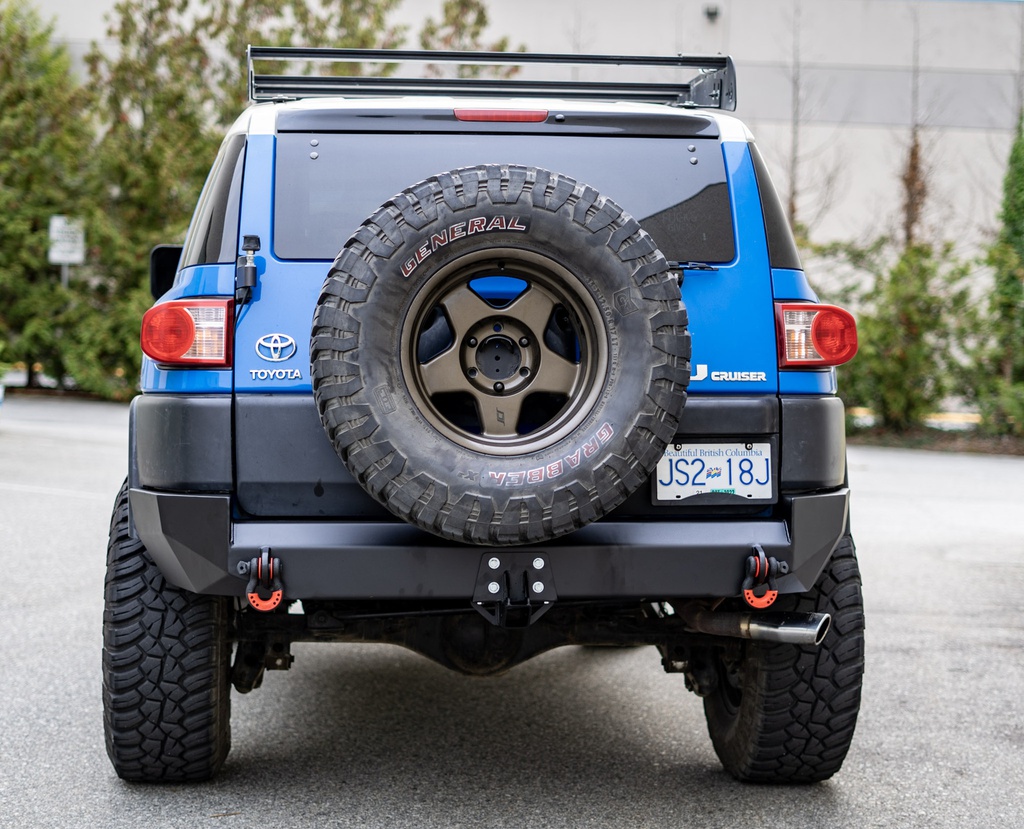

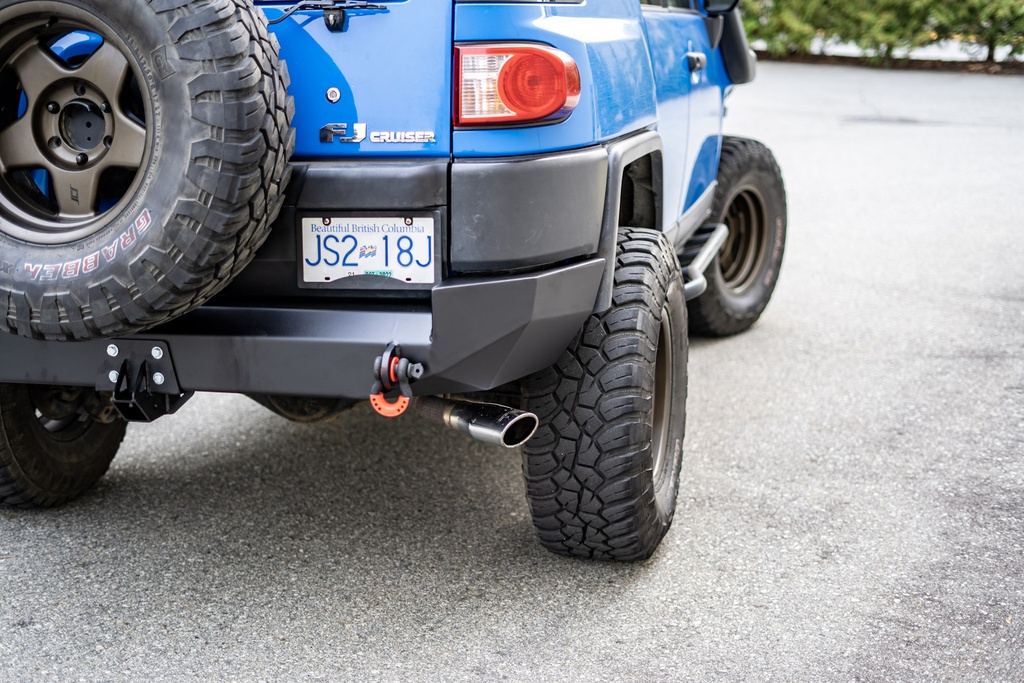

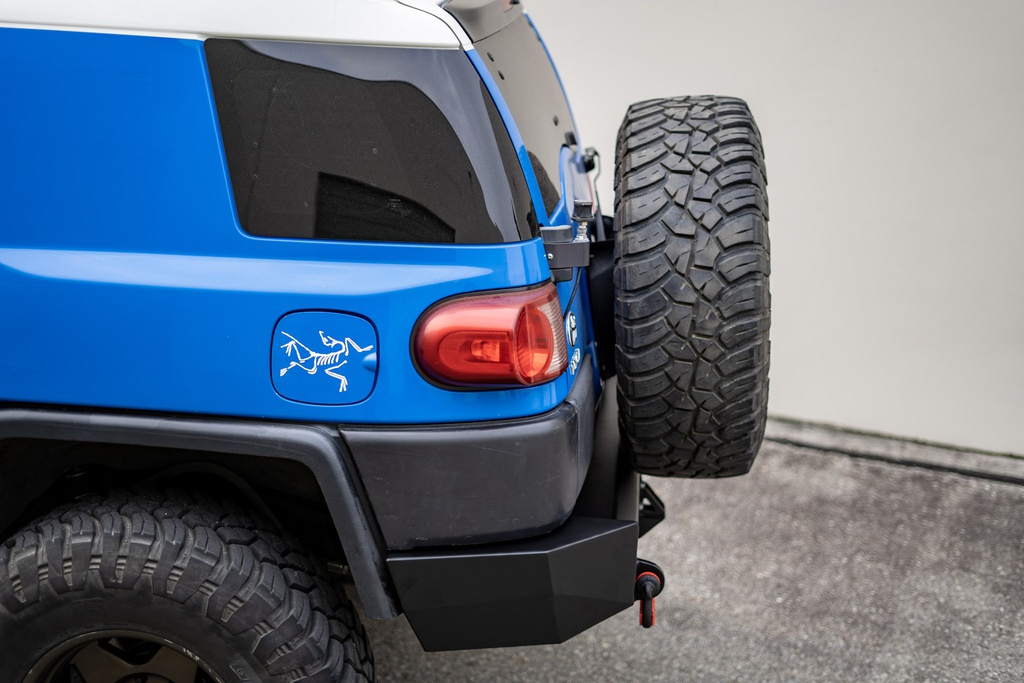

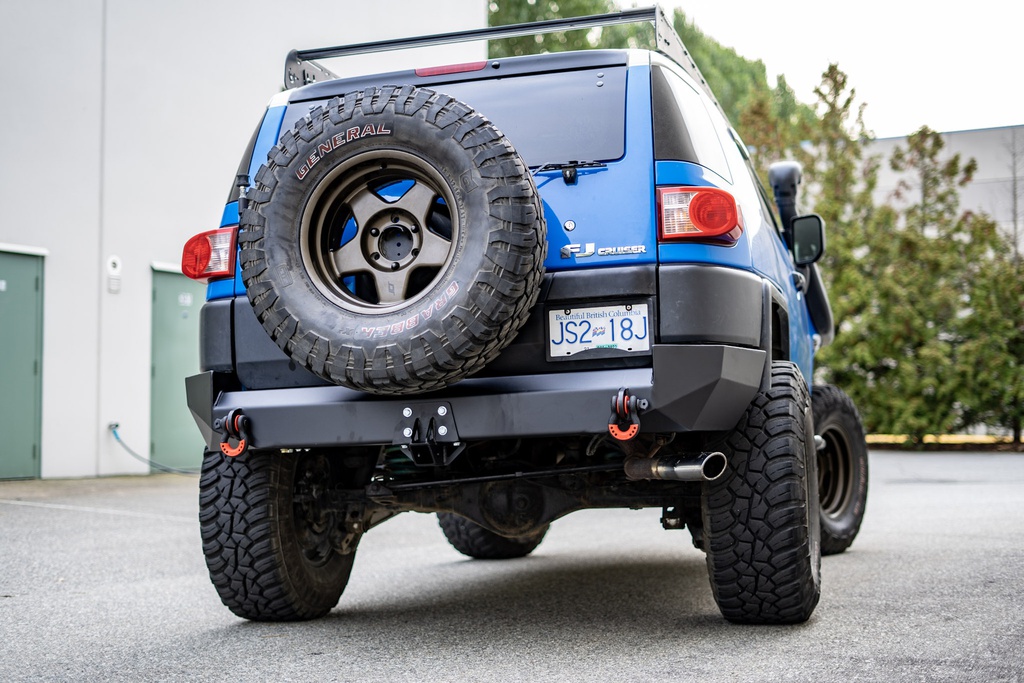

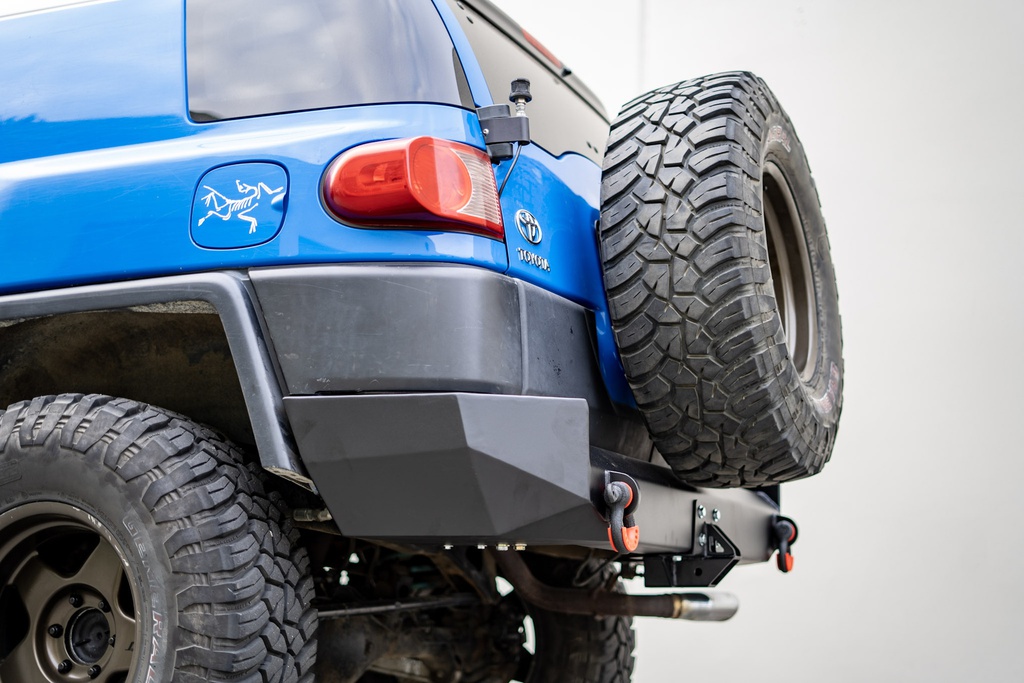

The profile of this bumper has been designed with maximum ground clearance and departure angles put first. The bumper sits as high and tight to the rear frame crossmember of the 2007-2014 FJ Cruiser as possible, while the angled side wing faces will smoothly slide over obstacles and ensure you do not get hung up on the trail. The side wings of this bumper provide un-interrupted plate protection that wraps underneath the vehicle and into the vehicle frame. These side wings will take a serious hit without flexing or deflecting into the vehicle body. We know that many Toyota FJ Cruiser owners want to run oversized tires, which often create interference and rubbing issues with the stock bumper. We have thought ahead and specifically designed these bumper side wings to clear 35" tires.

The main section of this bumper is CNC-bent out of a single piece of  3/16" P&O Steel. This greatly reduces the amount of welding and grinding required by you and makes for a cleaner finished product. If you are paying to have the bumper assembled by a welding shop, this significantly lowers the cost.

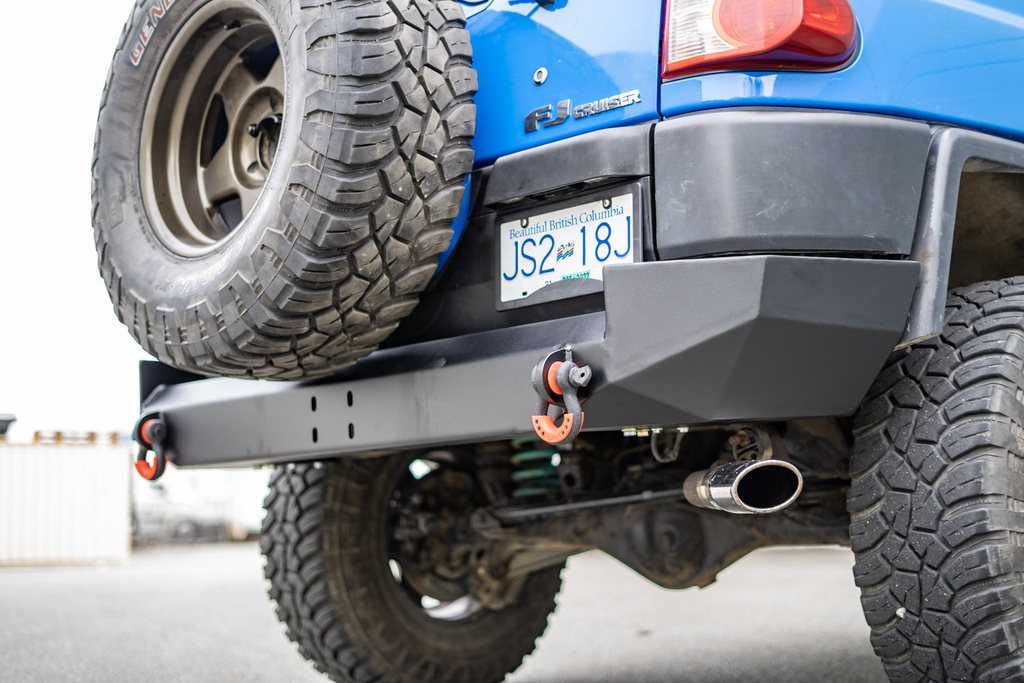

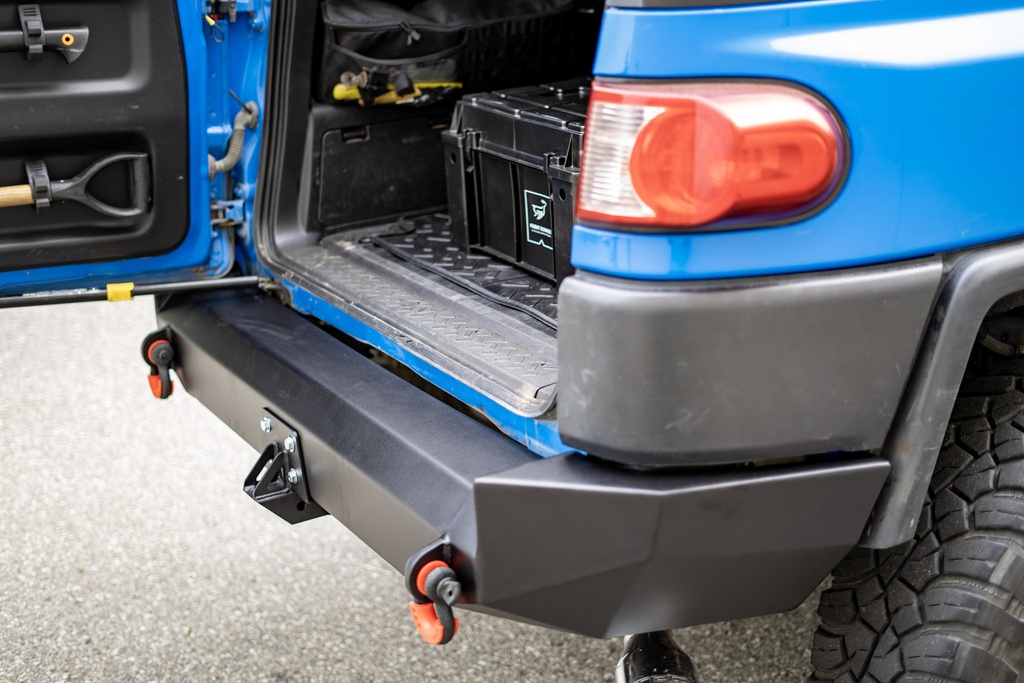

We finished this bumper off with optional single and dual swing out carriers, a high clearance hitch receiver, LED pod lights, and heavy duty 9/16" recovery points that are placed directly in line with the Toyota FJ Cruiser frame to eliminate any leveraging effects. These recovery points are formed out of laser cut steel plates that pass through the bumper shell and tie directly into the bumper's main mounting points on the FJ Cruiser frame. The recovery points then get welded to the in and outside of the bumper shell. These factors all combine to form recovery points that minimize stress on your FJ Cruiser frame and provide reliable recoveries of heavily loaded vehicles in the worst of offroad situations. What could make this bumper even better? The low profile design has resulted in very reasonable weights of 98lbs for the steel bumper and 49lbs for the aluminum version. Considering that this bumper replaces your factory bumper, hitch receiver and associated components, the resulting weight increase to your FJ Cruiser is surprisingly minimal. This reduces added stress on your vehicle, maintains precious payload capacity, and allows you to keep your factory suspension if desired.

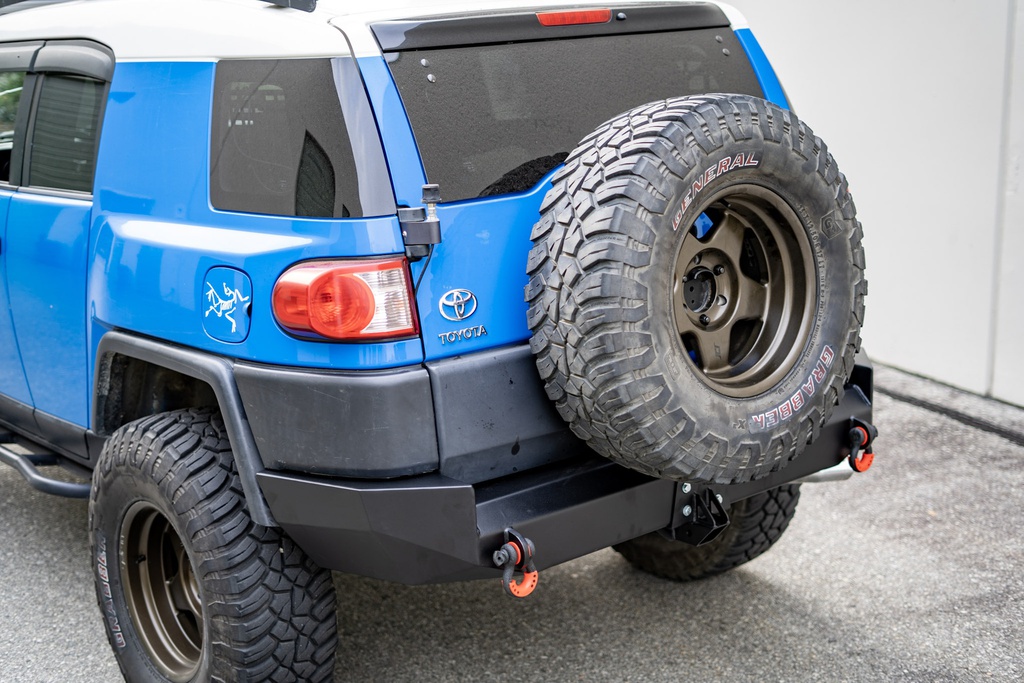

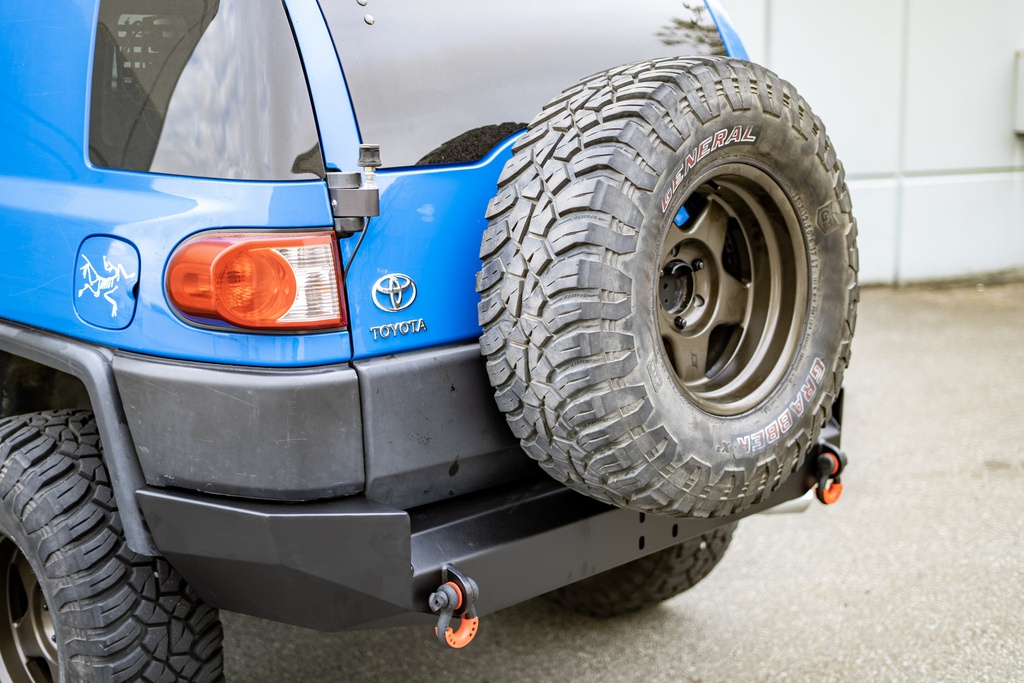

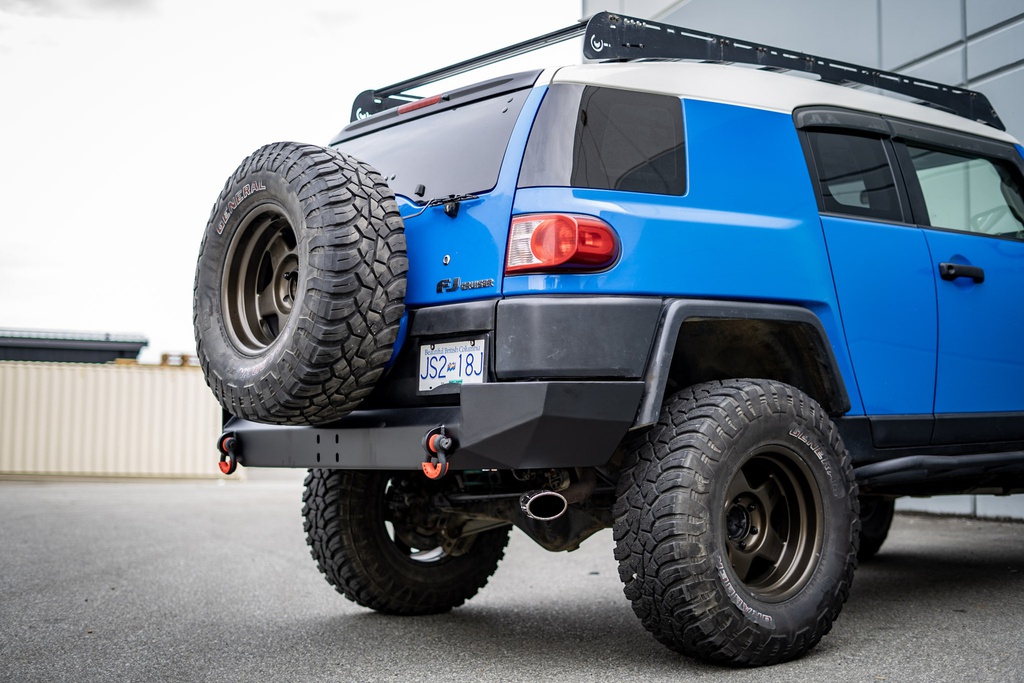

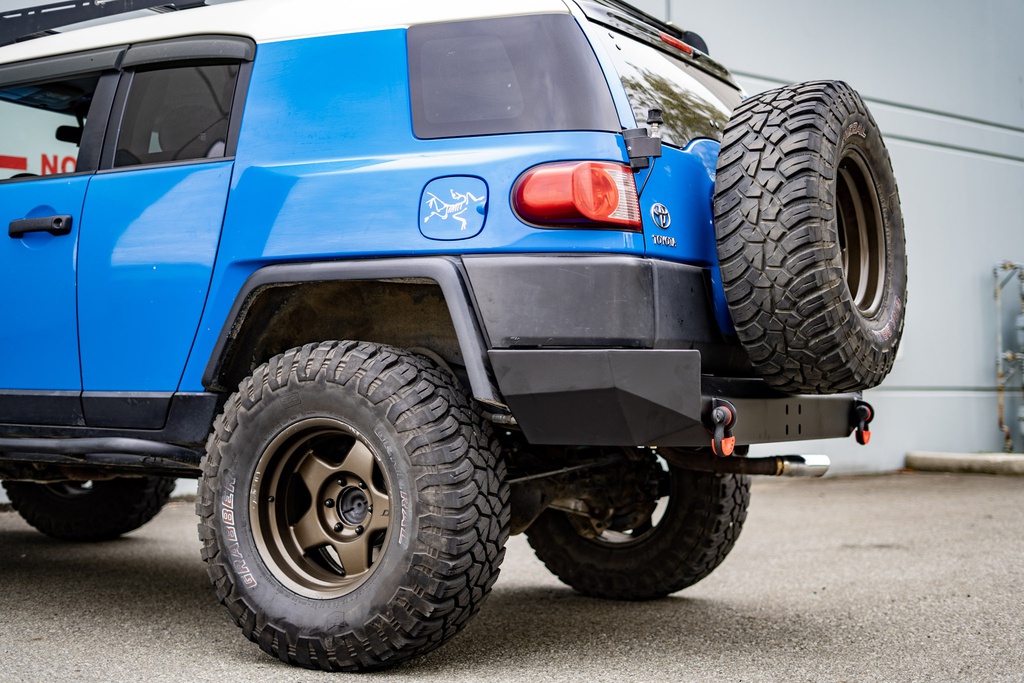

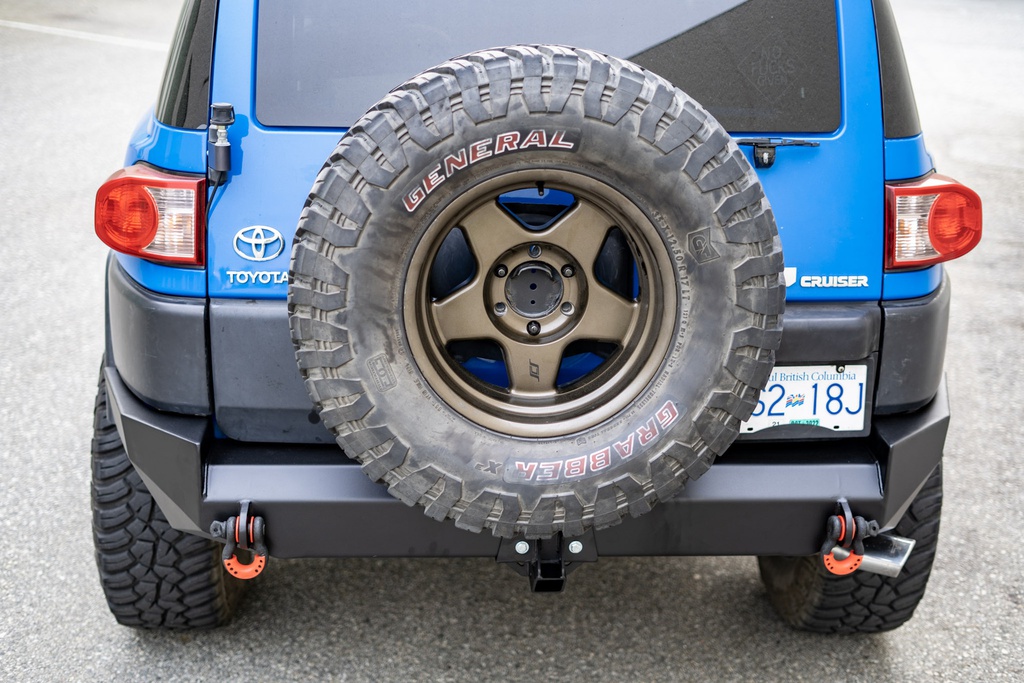

We know that so many FJ owners have saggy rear doors that no longer close properly due the weight of an oversized spare (including this FJ pictured here!). So we made this bumper available with our swing out carrier options, allowing you to move the weight of your spare tire and other gear off of the rear door and directly onto the frame instead. The swing out tire carrier comes in either a single or dual sided configuration and is built to accept a tire up to 37" in diameter! Both carriers include mounting brackets for a hilift jack and other recovery items. The dual swing out includes the hilift mount as well as a lockable jerry can holder designed to fit two 20L NATO style jerry cans. These carriers feature heavy duty chromoly heim joint hinges, 2000lb toggle latches, T-handle spring pins, and a replaceable UHMW catch pad that provides secure, rattle free operation. The heim joints in conjunction with the toggle latch provide tons of adjustability, allowing for easy assembly and guaranteed alignment of the carrier latch. The single swing out add-on weighs 34lbs and the dual swing out add-on with gas can holder weighs 77lbs.

Don’t want to lose your factory parking sensor system? No problem. This bumper kit can be ordered with CNC-cut tabs for each of the 2 factory parking sensors. Simply pop the sensors into this replacement bumper, route the factory harness through the internal ports, and plug it back into the vehicle. The factory wiring harness is easily removed from the stock bumper and transferred to the Coastal Offroad bumper with no modifications needed.

•DIY Weld-together kit - This bumper arrives as precision CNC-laser cut and bent pieces that you then weld together (detailed assembly instructions included)

•CNC-bent plates greatly reduces amount of welding and grinding required by you and makes for a cleaner finished product

• Slim profile is engineered to provide maximum ground clearance and complement the factory body lines - trimming of stock plastic bumper required

• Heavy duty 3/16" plate steel construction for maximum offroad strength and durability

• Optional 1/4" 5052 aluminum construction for a lightweight yet very durable overlanding setup (49lb weight savings over steel version)

•Optional 2" hitch receiver is tapered for a clean look and further clearance gains (While the hitch is very well reinforced, we cannot rate it for on-road towing due to the DIY welding nature of this kit)

• Mounts directly to frame using 14 factory mounting points - no drilling required.

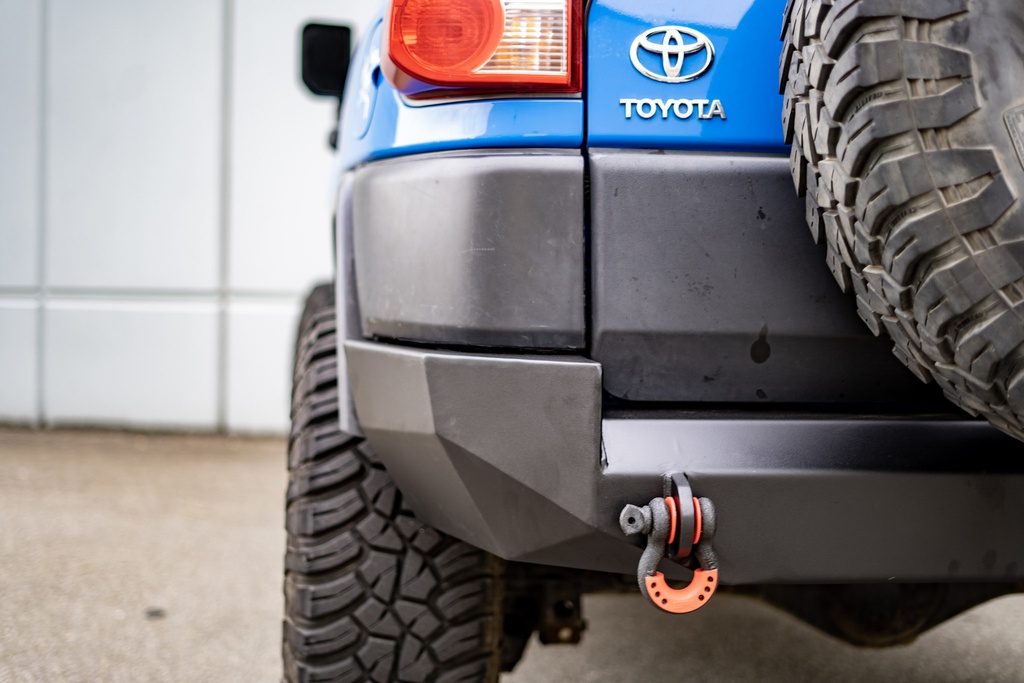

•Reinforced 9/16" thick clevis mounts allow the use of 3/4" D-Rings and pull directly off of the frame for confident recoveries of heavily loaded vehicles

•All kits ship as clean, bare metal that is ready to weld out of the box - the Nitrogen laser cutting technology means no cutting edge oxidation and thus easier and stronger welds

•Optional Single and Dual Swing out carriers with spare tire mount, hilift jack mount and locking dual NATO can holder (dual swing out only)

LED Light Option: Due to the low profile of this bumper, we cannot fit the optional lights inside the bumper. Instead, the LED light option includes adjustable CNC laser cut tabs to mount the lights either on the swing outs or on top of the bumper.
