Lexus GX460 High Clearance Front Bumper Kit

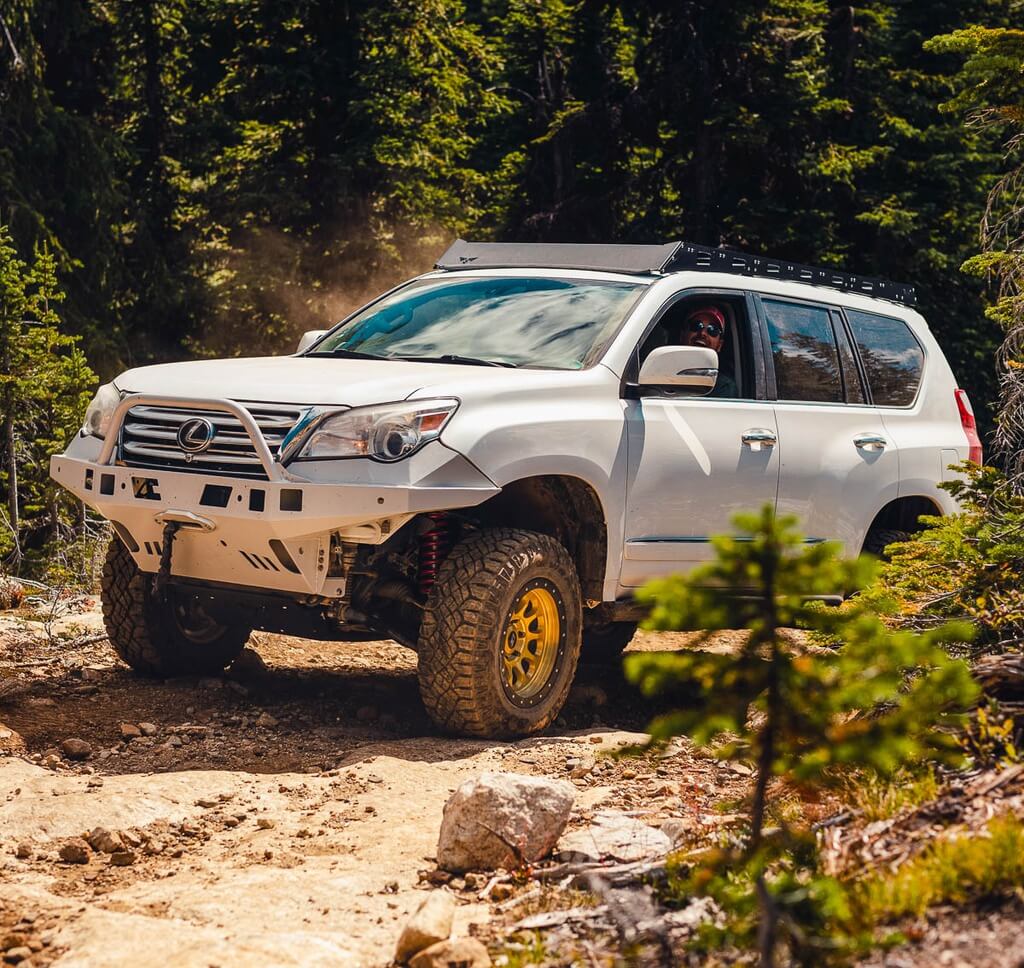

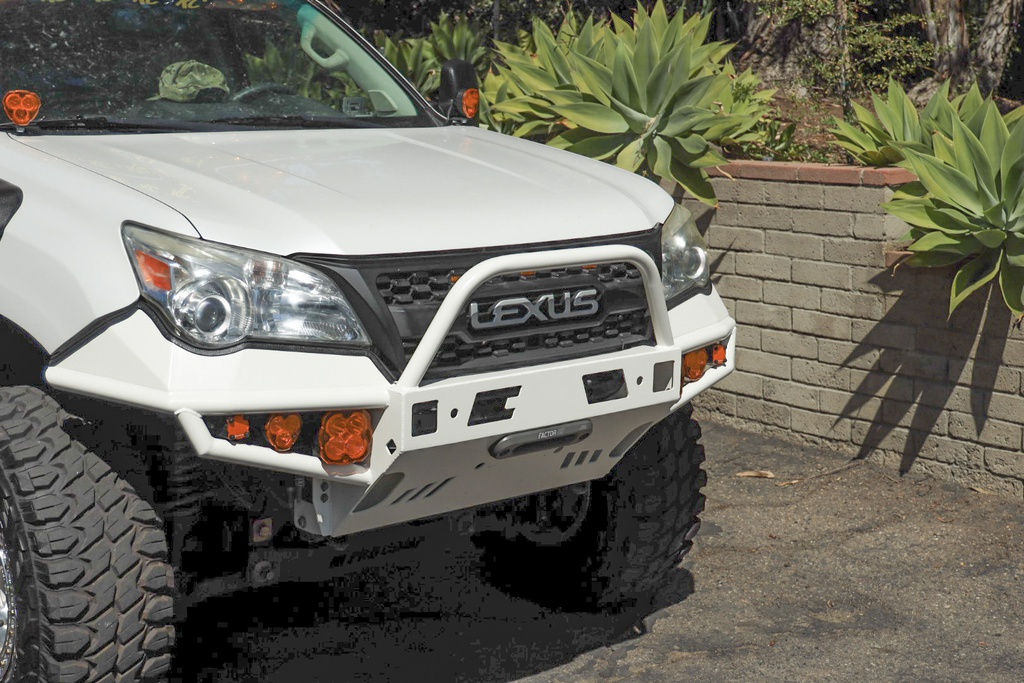

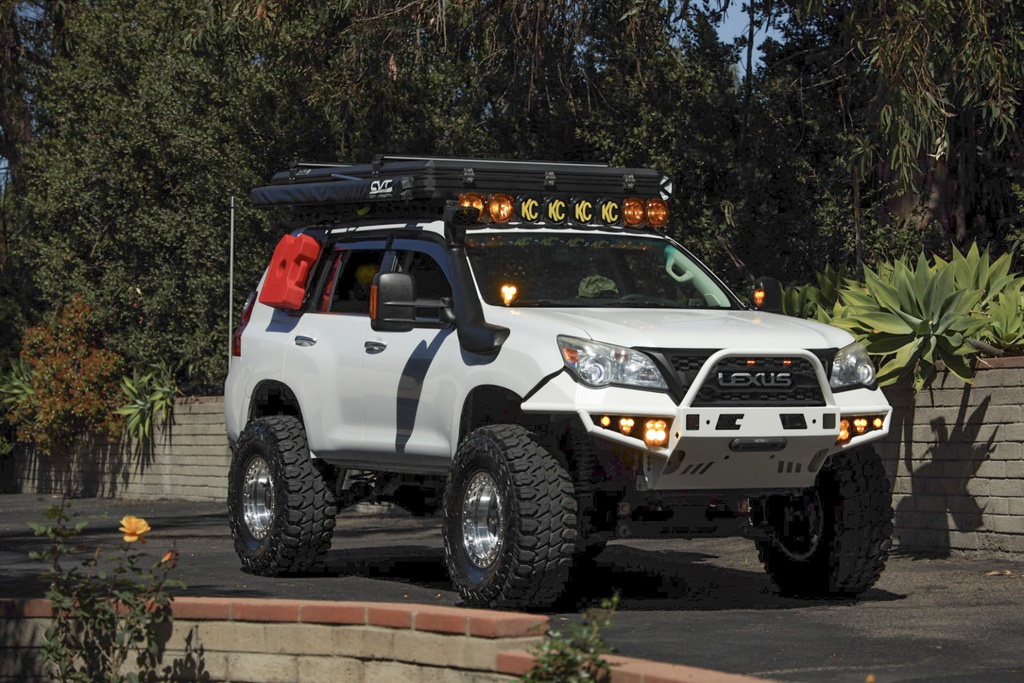

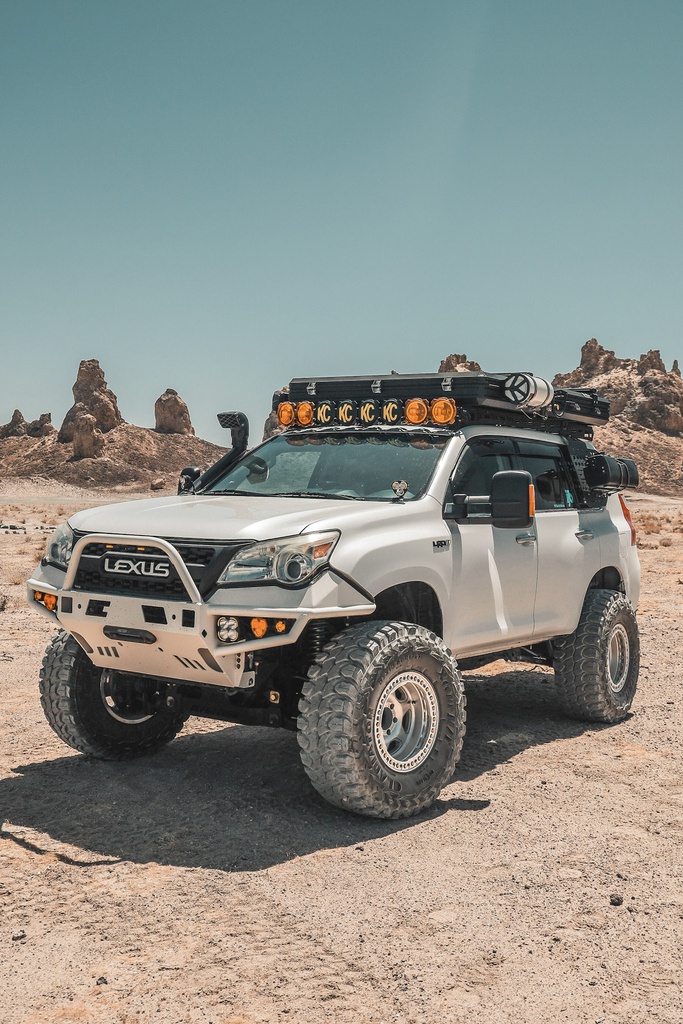

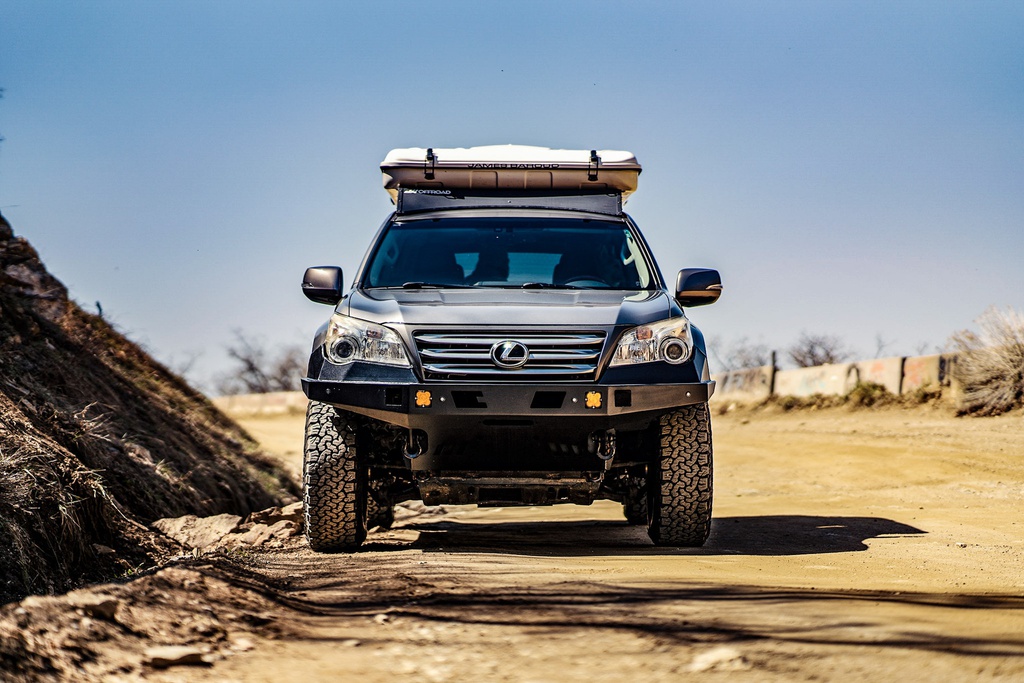

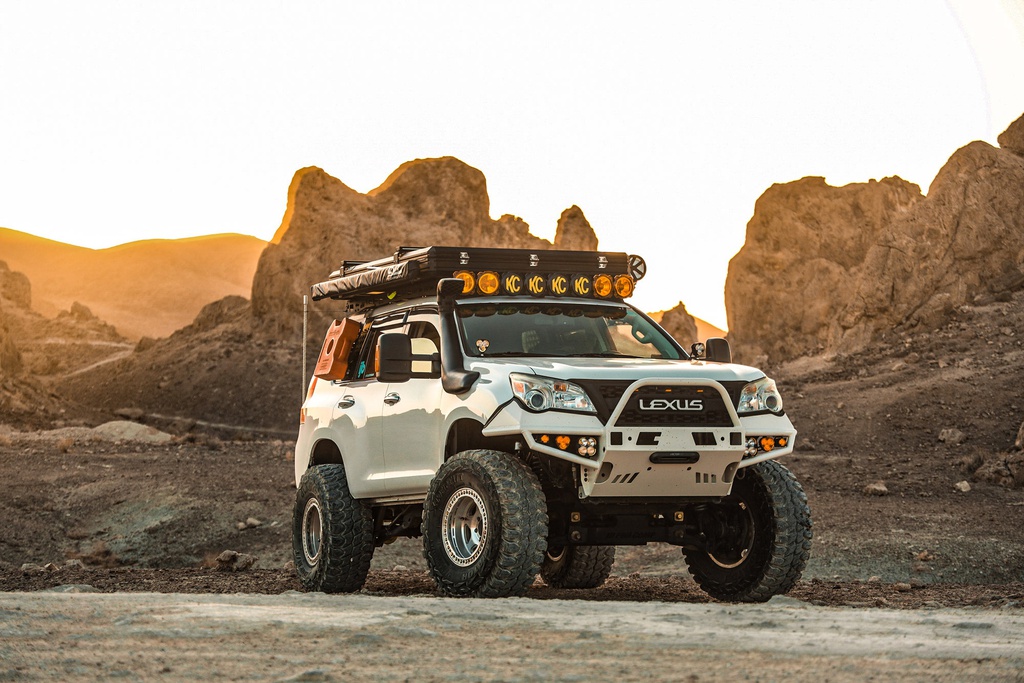

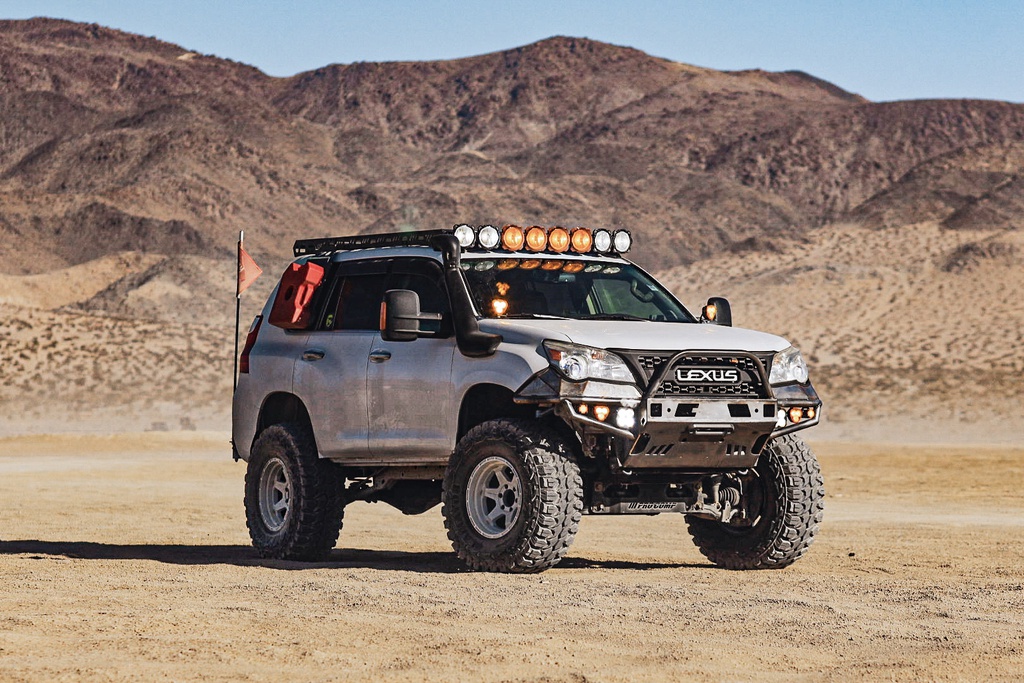

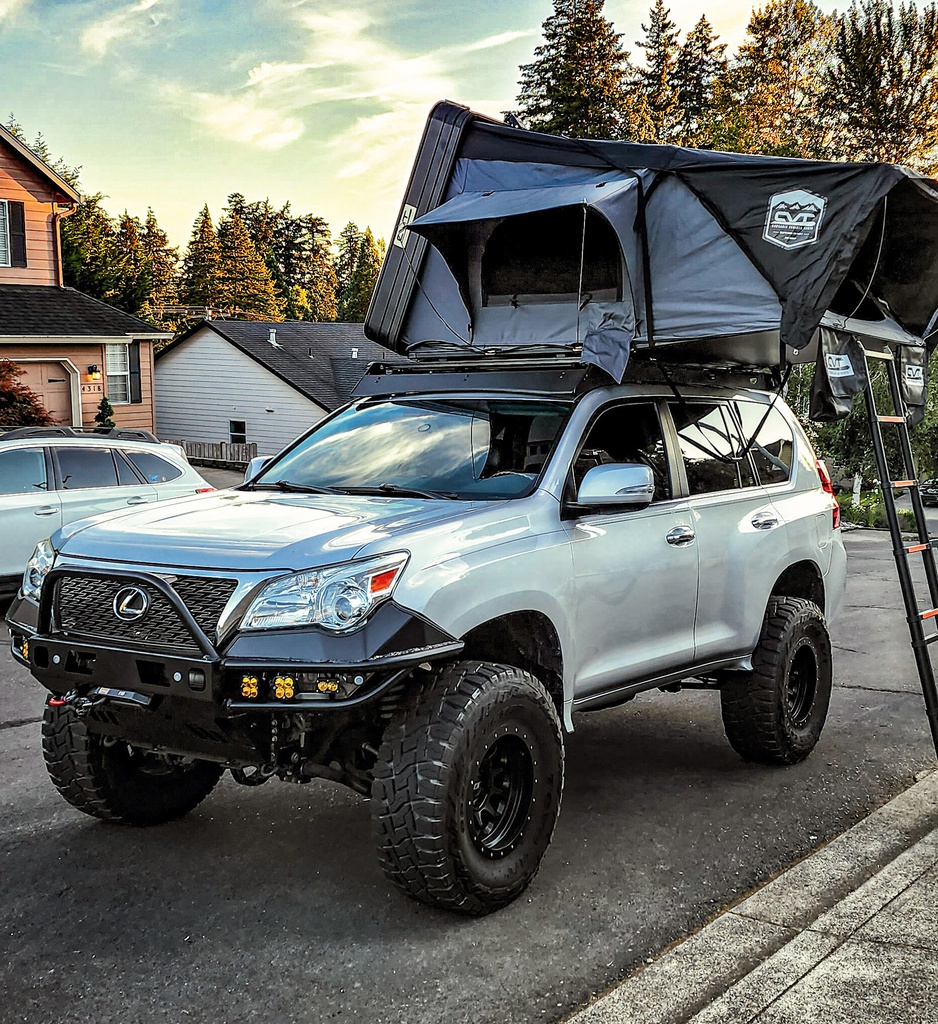

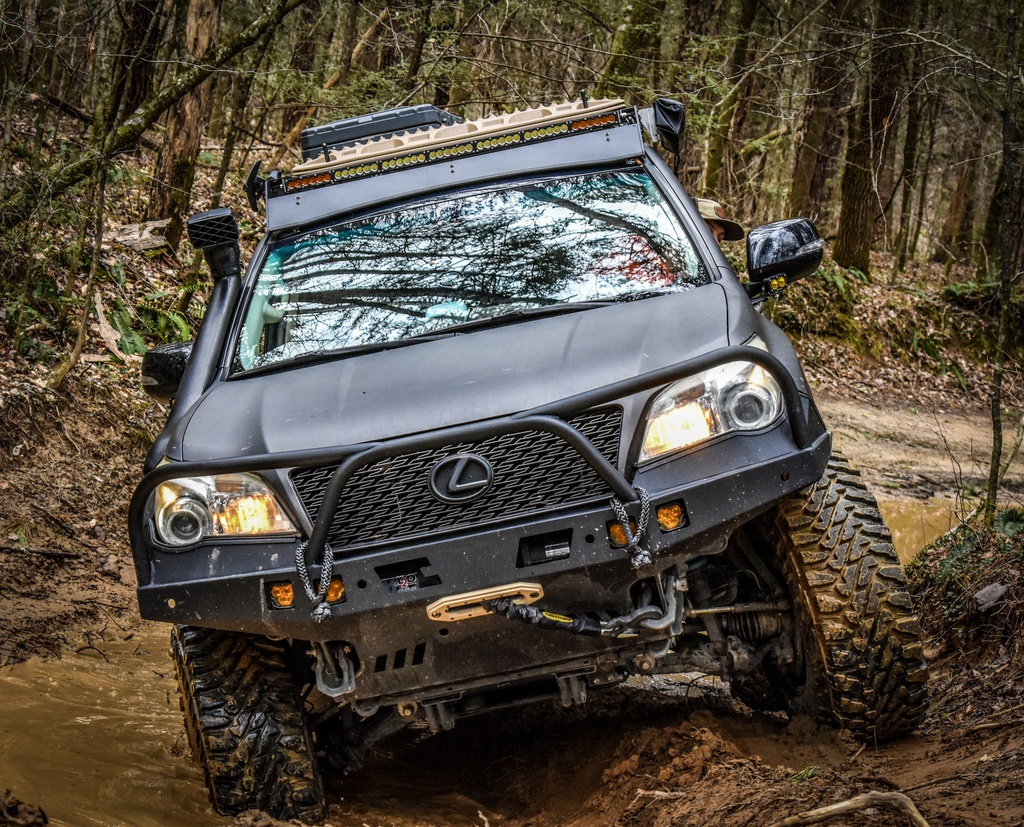

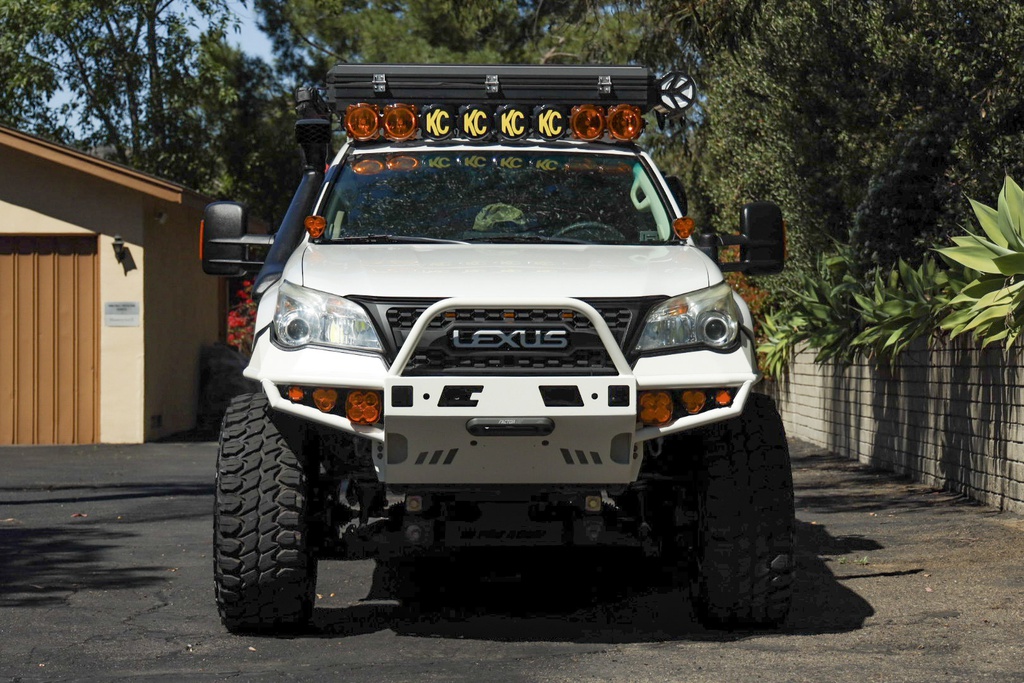

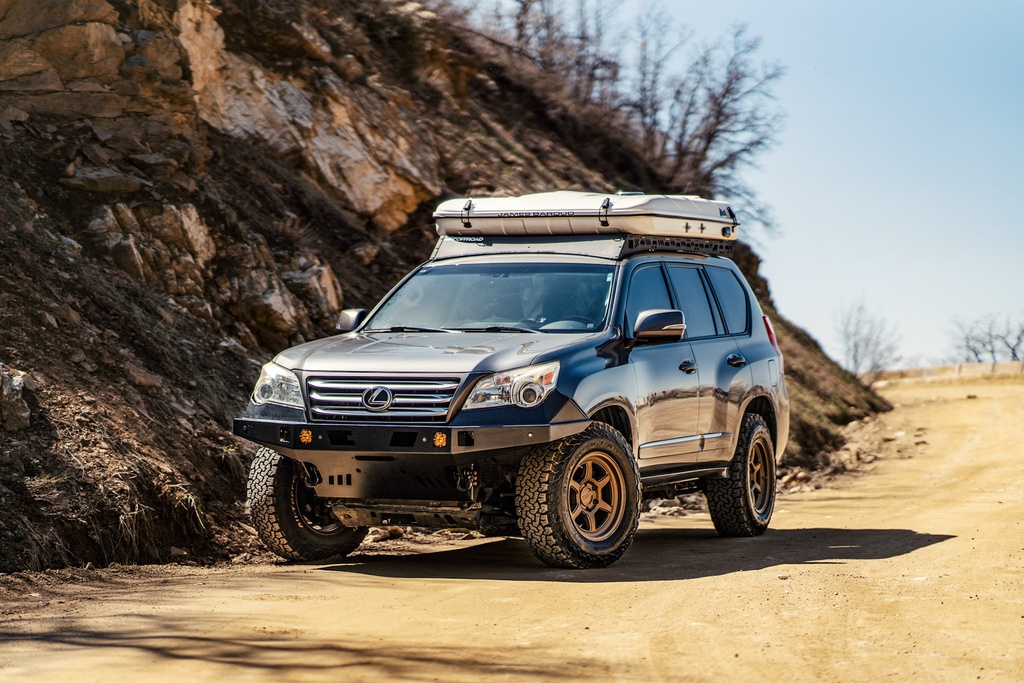

    This is a high clearance DIY weld-together bumper kit for the 2010-2013 Lexus GX460. It features a bolt-on design, protected winch mount, and one of the best approach angles of any bumper on the market. This bumper allows you to forget about approach angle and substantially improves the offroad capability of your GX460. It offers excellent protection from trail obstacles, animal strikes and distracted drivers and has been kept to a very reasonable weight of 121lbs (steel version) through careful design work. This weight is especially noteworthy considering that this bumper provides full coverage from the bottom of the headlights down to the front frame crossmember where the factory skid plate starts. This means that no trimming of the factory bumper is required and that you get full uninterrupted protection for the front end of your GX when paired with either stock or aftermarket skid plates. This bumper will not fit the 2014-2020 GX460 front end but we plan to offer a dedicated 2014 version in 2022!

    The profile of this bumper has been designed with maximum ground clearance and approach angles put first. The bumper sits as high and tight to the front of the Lexus GX460 as possible, while the angled lower faces will smoothly slide over obstacles and ensure you do not get hung up on the trail. The side wings of this bumper wrap around to the front wheel wells and tie directly into the main frame mounting plates for true offroad protection. These side wings will take a serious hit without flexing or deflecting into the vehicle body. We know that most Lexus GX460 owners want to run oversized tires and more aggressive wheel offsets. This can create interference issues with the stock front bumper. We have thought ahead and specifically designed these bumper side wings to easily clear 35" tires.

The main section of this bumper is CNC-bent out of a single piece of  3/16" P&O Steel. This greatly reduces the amount of welding and grinding required by you and makes for a cleaner finished product. If you are paying to have the bumper assembled by a welding shop, this significantly lowers the cost.

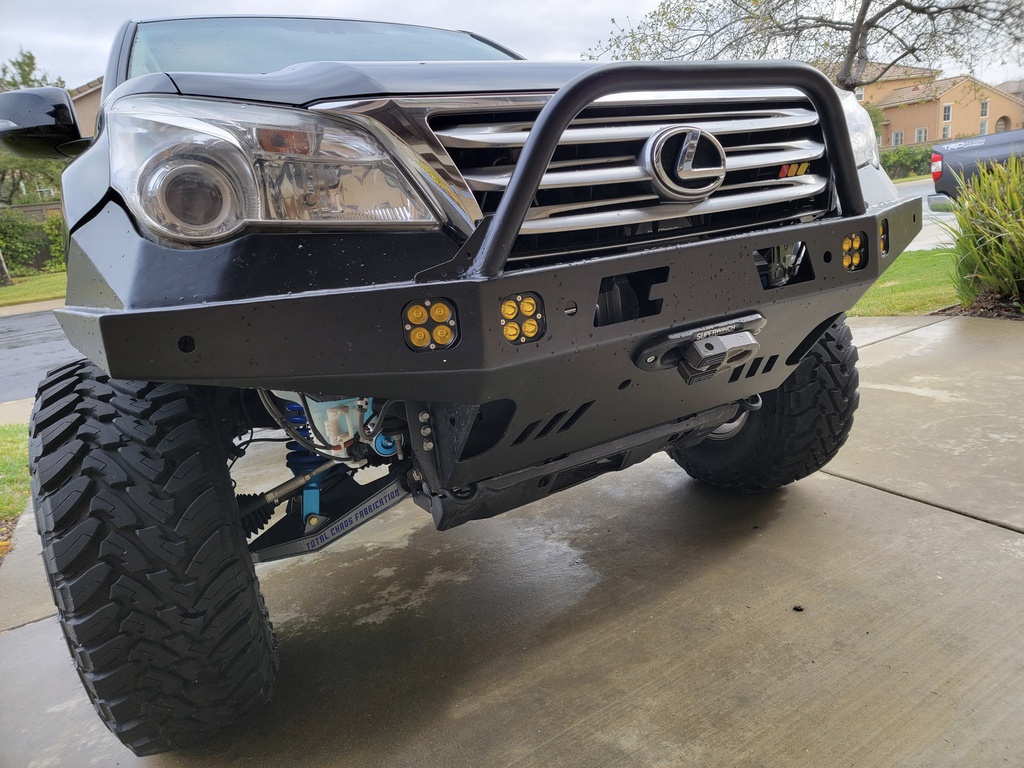

We finished this bumper off with four integrated light buckets for surface mount LED pod lights (custom light cut outs available by request, such as a light bar version), an integrated winch mount to accept all standard 8-12k lb winches with removable solenoids, and heavy duty 9/16" recovery points that are placed directly in line with the Lexus GX460 frame to eliminate any leveraging effects. These recovery points are formed by laser cut steel plates that pass through the bumper shell and tie directly into the Lexus GX460 frame as part of the bumper's main mounting brackets. The recovery points then get welded to the in and outside of the bumper shell. These factors all combine to form recovery points that minimize stress on your Lexus GX460 frame and provide reliable recoveries of heavily loaded vehicles in the worst of offroad situations. What could make this bumper even better? The low profile design has resulted in very reasonable weights of 121lbs for the steel bumper and 60lbs for the aluminum version. Considering that this bumper replaces your factory bumper and associated components, the resulting weight increase to your Lexus GX460 is surprisingly minimal. This reduces added stress on your vehicle, maintains precious payload capacity, and allows you to keep your factory suspension if desired.

Don't want to lose your factory parking sensor system? No problem. This bumper kit comes with CNC-cut ports for each of the 4 factory parking sensors as well as internal routing ports for the factory wiring harness to pass through without any modification or extensions required. Simply pop the sensors into this replacement bumper, route the factory harness through the internal ports, and plug it back into the vehicle. The factory wiring harness is easily removed from the stock bumper and transferred to the Coastal Offroad bumper. This allow you to wire in our LED driving lights and your factory parking sensors right into the Coastal Offroad bumper using the factory wiring harness, thus maintaining all of the factory switches on your steering column. When removing the Coastal Offroad bumper from the vehicle, all wiring is then conveniently disconnected all at once via the factory plugs located behind the vehicle grill.

• DIY Weld-together kit - This bumper arrives as precision CNC-laser cut and bent pieces that you then weld together (detailed assembly instructions included)

• NO Drilling, cutting or welding of the actual vehicle required - this bumper can be installed and removed from your GX460 without a trace that it was ever there.

• CNC-bent plates greatly reduces amount of welding and grinding required by you and makes for a cleaner finished product

• Maintains Factory Parking Sensors

• Low profile design is engineered to provide maximum ground clearance and complement the factory body lines - this bumper protrudes less than 2" from the center of the grill!

• Heavy duty 3/16" plate steel construction for maximum offroad strength and durability

• Optional 1/4" 5052 aluminum for a lightweight yet very durable overlanding setup (61lb weight savings)

• Bolts directly to frame using a total of 10 factory mounting points - no drilling required

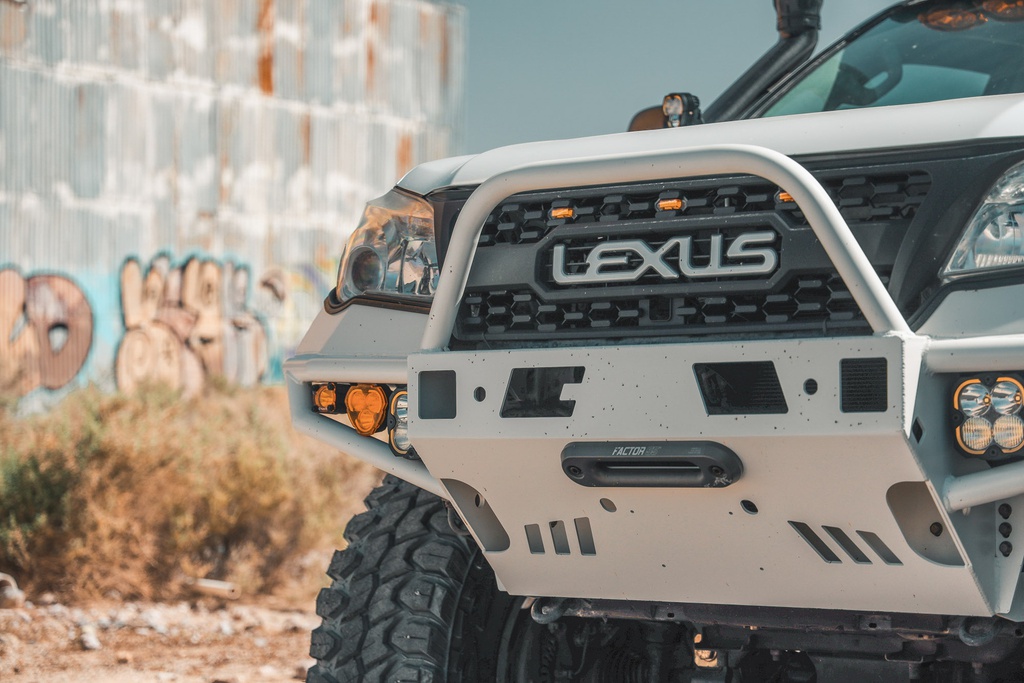

• Protected winch mount fits all standard 8000-12,000lb winches with removable solenoids

• Integrated 9/16" thick clevis mounts allow the use of 3/4" D-Rings and pull directly off of the frame for confident recoveries of heavily loaded vehicles

• Four Integrated LED pod mounts – slotted mounting tabs give tons of adjustment to fit a wide variety of surface mount pod lights

• Integrated license plate mount

• Optional heavy duty grill and headlight tubing for added protection
