Mitsubishi L400 Series 1 Delica High Clearance Front Bumper Kit

Mitsubishi Delica L400 S1

Mitsubishi

Mitsubishi Mitsubishi Delica L400 S1 CO14993

ID product: 1705

AUD$ 1,038.02

Choose
your variation

  • Cree LED Lights
      Choose an option
    • Two 24W Cree LED Pod Lights

      Includes two 24W 2300 Lumen CREE LED Lights with a spot/flood combo beam pattern and great adjustability. Simply splice them into your existing factory fog light wiring for an easy install that keeps your factory fog light switch

      Price: + AUD$ 106.26

    • Two 40W Cree LED Pod Lights

      Includes two 40W 3800 Lumen CREE LED Lights with a spot beam pattern and great adjustability. Simply splice them into your existing factory fog light wiring for an easy install that keeps your factory fog light switch

      Price: + AUD$ 143.69

    • Two 24W Cree LED Pod Lights with Full Wiring Harness and Switch

      Includes two 24W 2300 Lumen CREE LED Lights with a spot/flood combo beam pattern and great adjustability. Includes full wiring harness with switch, relay and industry-standard DT connectors

      Price: + AUD$ 150.94

    • Four 24W Cree LED Pod Lights

      Includes four 24W 2300 Lumen CREE LED Lights with a spot/flood combo beam pattern and great adjustability. Simply splice them into your existing factory fog light wiring for an easy install that keeps your factory fog light switch

      Price: + AUD$ 181.13

    • Two 40W Cree LED Pod Lights with Full Wiring Harness and Switch

      Includes two 40W 3800 Lumen CREE LED Lights with a spot beam pattern and great adjustability. Includes full wiring harness with switch, relay and industry-standard DT connectors

      Price: + AUD$ 190.79

    • Four 24W Cree LED Pod Lights with Full Wiring Harness and Switch

      Includes four 24W 2300 Lumen CREE LED Lights with a spot/flood combo beam pattern and great adjustability. Includes full wiring harness with switch, relay and industry-standard DT connectors

      Price: + AUD$ 253.58

    • Four 40W Cree LED Pod Lights

      Includes four 40W 3800 Lumen CREE LED Lights with a spot beam pattern and great adjustability. Simply splice them into your existing factory fog light wiring for an easy install that keeps your factory fog light switch

      Price: + AUD$ 253.58

    • Four 40W Cree LED Pod Lights with Full Wiring Harness and Switch

      Includes four 40W 3800 Lumen CREE LED Lights with a spot beam pattern and great adjustability. Includes full wiring harness with switch, relay and industry-standard DT connectors

      Price: + AUD$ 329.65

  • Material
      Choose an option
    • Steel

      Our steel bumpers are constructed out of 3/16” thick P&O hot rolled steel, NOT cheaper mild steel. Compared to aluminum, steel provides high strength and durability and is easier to weld. It also comes in at a pricepoint much lower than aluminum

      Price: + AUD$ 0.00

    • Aluminum

      Our aluminum bumpers are constructed out of ¼” thick 5052 aluminum. Aluminum provides great corrosion resistance and substantial weight savings over steel. While it is still very strong and durable, it will sustain dents and scratches easier than steel if you like to play hard in the rocks

      Price: + AUD$ 1,322.21

  • Tubing
      Choose an option
    • No

      This gives you a clean, flat-top plate bumper with no tubing hoops in front of the grill or headlights.

      Price: + AUD$ 0.00

    • Grill Tubing

      This gives you a single tubing hoop in front of your grill. This is reinforced with CNC-cut gussets at its base for higher strength and a smoother transition between the bumper and tubing. This option does not include tubing hoops to go around your headlights.

      Price: + AUD$ 94.19

    • Full Height Grill and Headlight Tubing

      This gives you 3 tubing hoops that go in front of the grill and the headlights. To go along with this option, round holes will be pre-cut into your plate bumper top plates for the headlight hoops to pass through. This makes for easier fitment and the ability to weld the tubing to the top and bottom surfaces of your bumper’s side wings for maximum strength. This option gives your vehicle the maximum level of protection from trail obstacles and animal strikes.

      Price: + AUD$ 195.62

  • 3/4" Recovery Shackle (Pair)
      Choose an option
    • No

      Omits the pair of 3/4" recovery shackles. Your bumper will still come with built in attachment points for the recovery shackles of your choice.

      Price: + AUD$ 0.00

    • Yes

      Adds a pair of 3/4" Recovery shackles. These shackles have a 7/8" diameter pin, black powder coat finish, and rubber isolators to eliminate noise and protect your other recovery equipment

      Price: + AUD$ 47.09

  • High Strength Engine/Radiator Skid Plate
      Choose an option
    • No

      Omits the heavy duty lower skid plate

      Price: + AUD$ 0.00

    • Yes

      Highly recommended option as it protects the most vulnerable area on the front of the vehicle. Adds a heavy duty lower skid plate that is fully CNC-bent into shape and only requires two very small 1″ long welds to complete it.

      Price: + AUD$ 289.80

AUD$ 1,038.02 AUD$ 1,038.02 1038.02 AUD

CAD$ 859.64

Add to Cart
"Mitsubishi L400 Series 1 Delica High Clearance Front Bumper Kit" has been added to your cart.
description

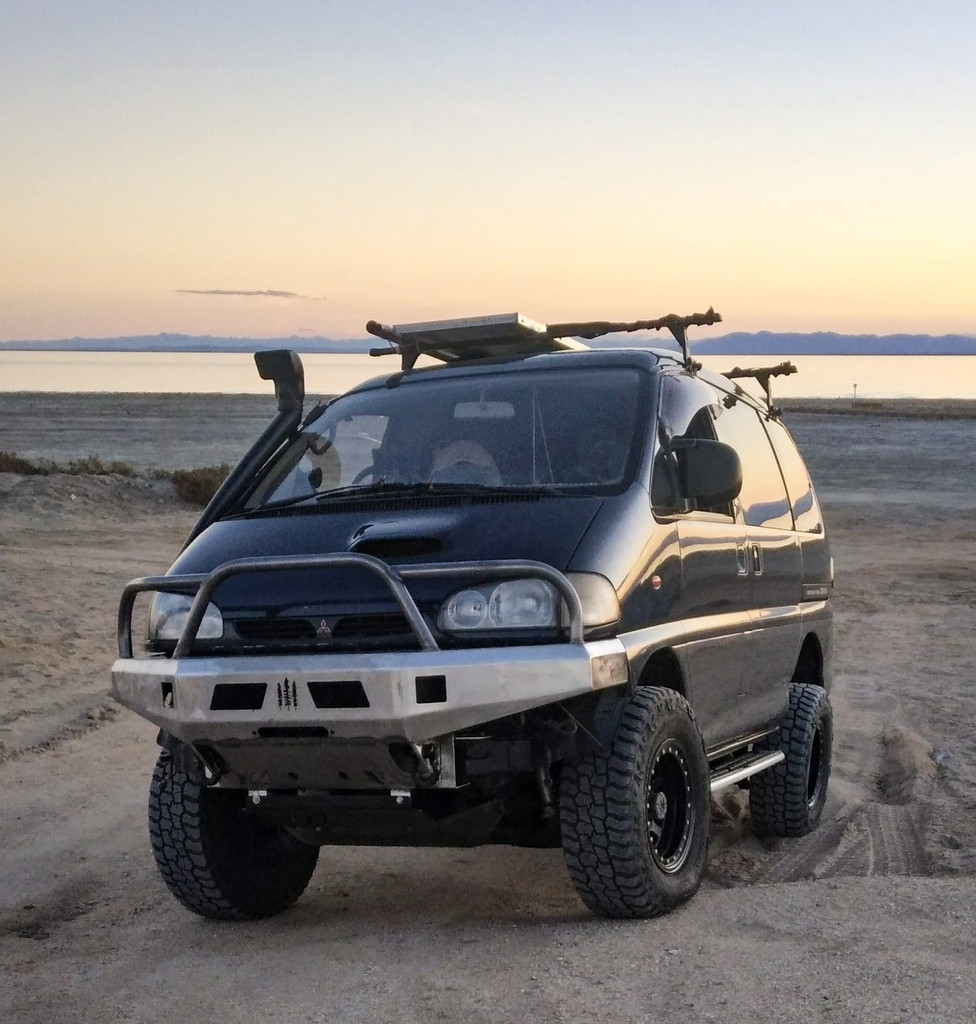

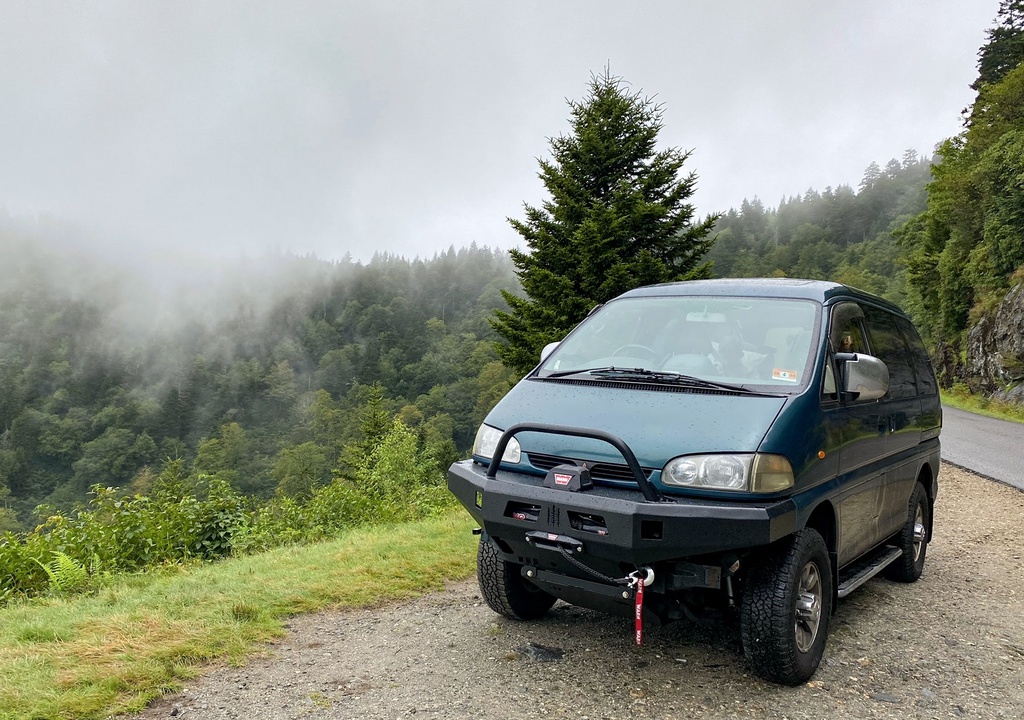

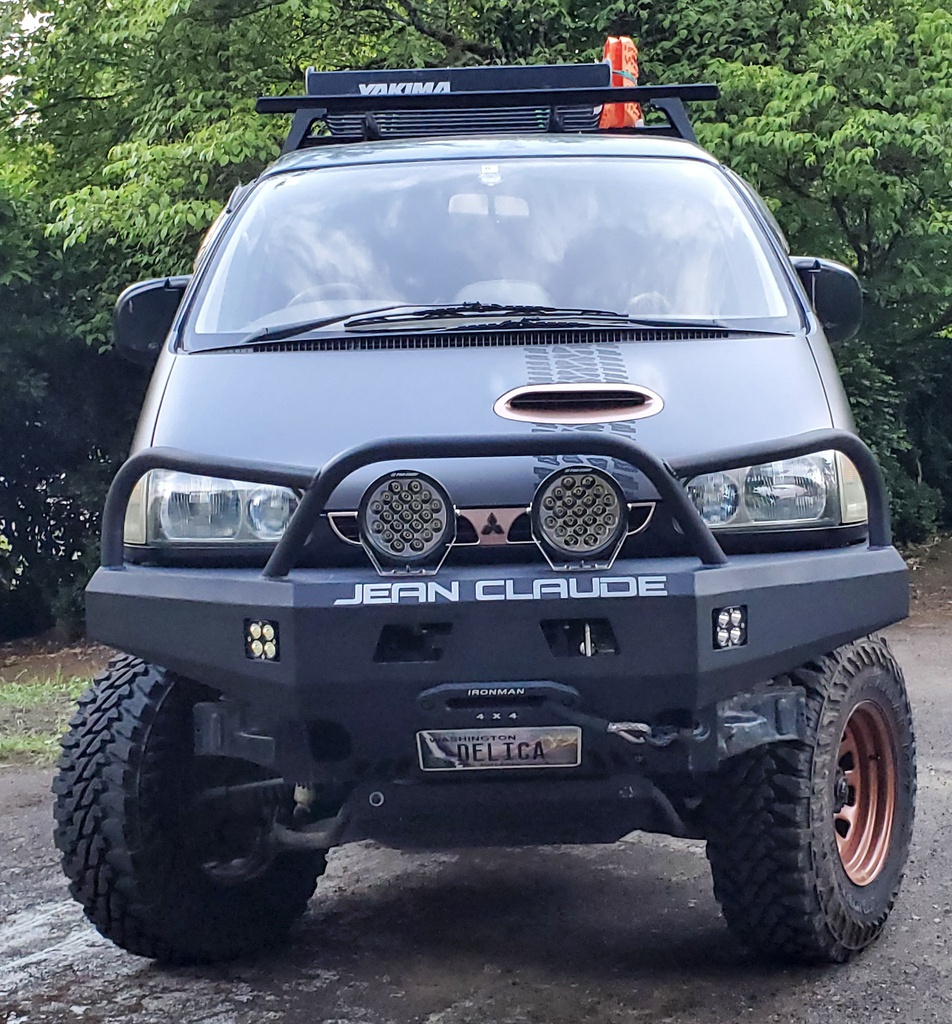

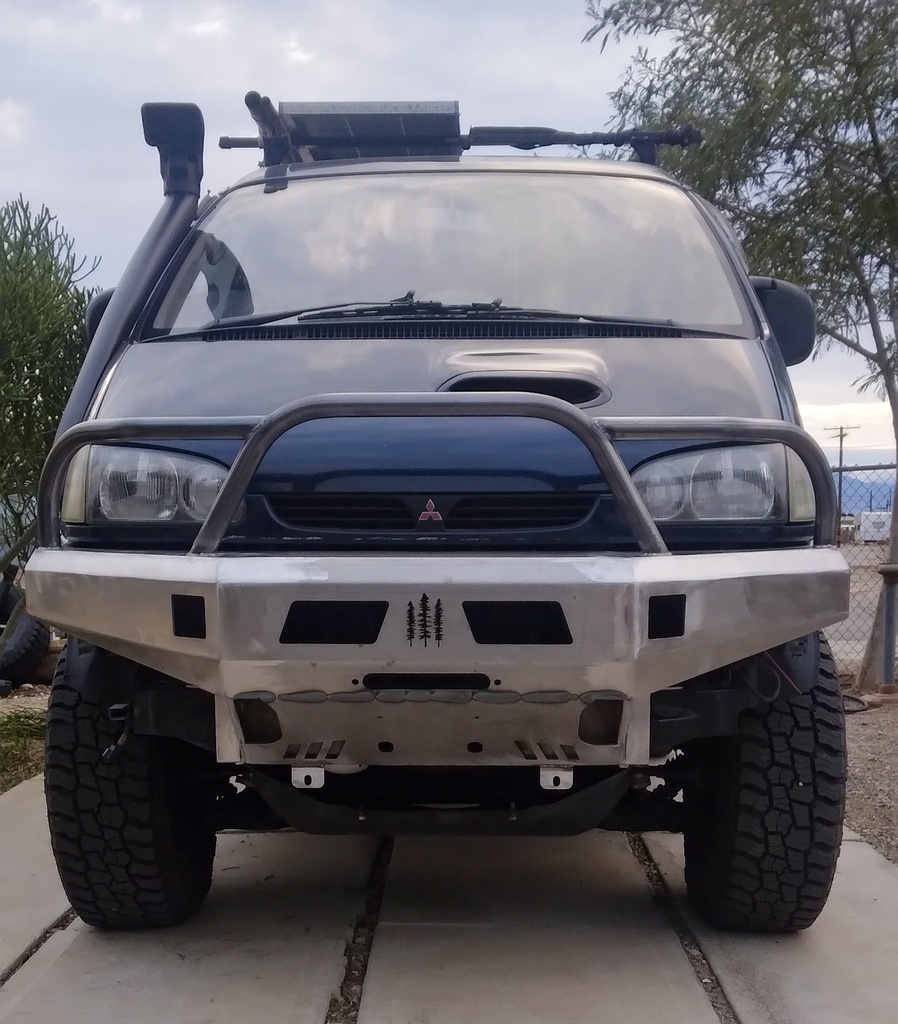

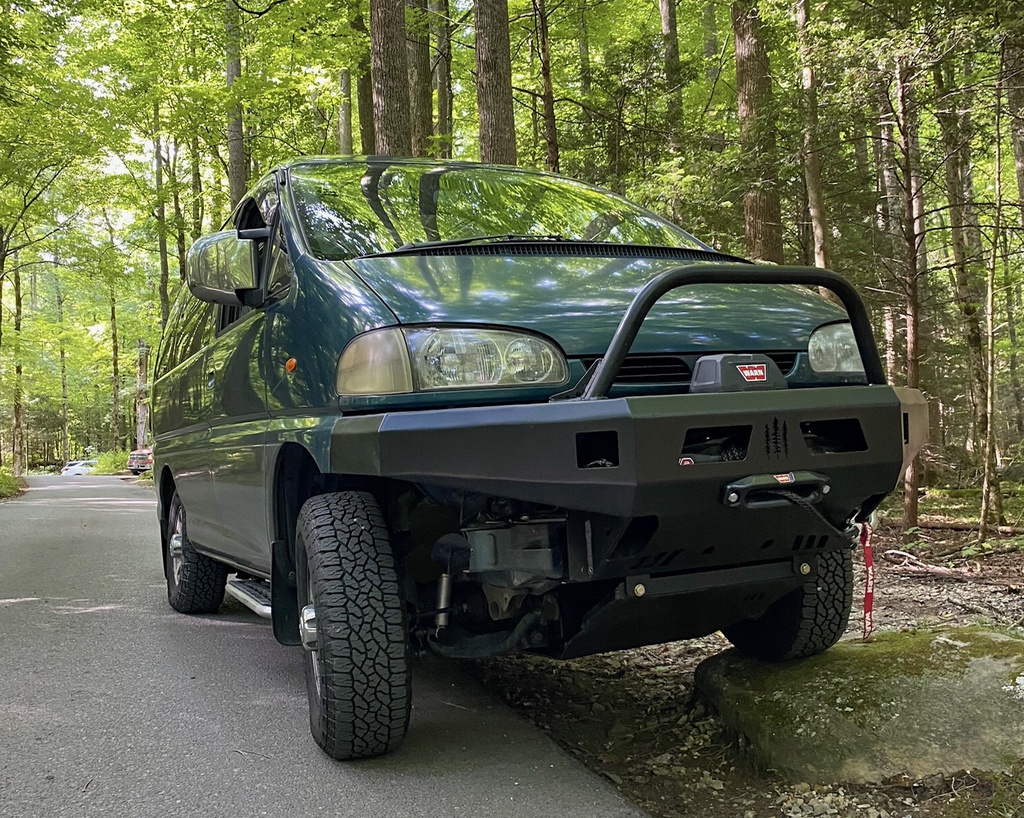

    This is a high clearance DIY weld-together winch bumper kit for the L400 Series 1 (1994- March,1997) Mitsubishi Delica. It features a bolt-on design, protected winch mount, and one of the best approach angles of any bumper on the market. This bumper allows you to forget about approach angle and substantially improves the offroad capability of your Delica. It offers excellent protection from trail obstacles, animal strikes and distracted drivers and has been kept to a weight of 106lbs through careful design work. Especially after factoring in the weight loss of removing your factory bumper and associated components, this bumper will not add a significant amount of weight to your Delica and can even be installed with the stock suspension! However, make no mistake - This bumper has been designed with hard offroad driving in mind and can take a serious beating without skipping a beat.

Due to the Delica van's unibody construction, the design of the mounting system is especially critical. If a thick steel bumper is poorly mounted to the vehicle unibody, no matter how strong the bumper is, it will simply punch through the unibody mounting points should an impact occur. Our mounting system uses a total of 10 bolts to spread forces evenly through the Delica's thin unibody frame structure, which substantially stiffens the bumper and protects the mounting interfaces.

The profile of this bumper has been designed with maximum ground clearance and approach angles put first. The bumper sits as high and tight to the front of the Mitsubishi Delica as possible, while the angled lower faces will smoothly slide over obstacles and ensure you do not get hung up on the trail. The side wings of this bumper wrap around to the front wheel wells and tie directly into the main frame mounting plates for true offroad protection. These side wings will take a serious hit without flexing or deflecting into the vehicle body. We know that many Mitsubishi Delica owners want to run oversized tires. We have thought ahead and specifically designed these bumper side wings to clear larger tires with ease. This bumper is also available with an optional lower skid plate that provides a smooth surface to slide across trail obstacles and protects your vulnerable engine bay parts.

The main section of this bumper is CNC-bent out of a single piece of  3/16″ P&O Steel. This greatly reduces the amount of welding and grinding required by you and makes for a cleaner finished product. If you are paying to have the bumper assembled by a welding shop, this significantly lowers the cost.

We finished this bumper off with integrated light buckets for surface mount LED pod lights (custom light cut outs available by request), an integrated winch mount to accept all standard 8-12k lb winches, and heavy duty 3/8" recovery points that are placed directly in line with the frame mounting points to eliminate any leveraging effects. These recovery points are formed by laser cut steel plates that pass through the bumper shell and bolt directly to the Delica's unibody frame as part of the bumper's main mounting brackets. The recovery points then get welded to the in and outside of the bumper shell. These factors all combine to form recovery points that minimize stress on your Delica's delicate unibody frame and are essentially indestructible! What could make this bumper even better? The low profile design has resulted in very reasonable weights of 106lbs for the steel bumper and 52lbs for the aluminum version. Considering that this bumper replaces your factory bumper cover and steel inner-bumper bar, the resulting weight increase to your Mitsubishi Delica is minimal. This minimizes added stress on your vehicle, maintains precious payload capacity, and allows you to keep your factory suspension if desired.


  • DIY Weld-together kit - This bumper arrives as precision CNC-laser cut and bent pieces that you then weld together (detailed assembly instructions included)

  • CNC-bent plates greatly reduces amount of welding and grinding required by you and makes for a cleaner finished product

  • Low profile design is engineered to provide maximum ground clearance and complement the factory body lines

  • Heavy duty 3/16" plate steel construction for maximum offroad strength and durability

  • Optional 1/4" 5052 aluminum for a lightweight yet very durable overlanding setup (54lb weight savings)

  • Bolts directly to unibody frame using a total of 10 mounting points

  • Protected winch mount fits all standard 8000-12,000lb winches with removable solenoids

  • Reinforced 3/8" thick clevis mounts allow the use of 3/4" D-Rings and pull directly off of the frame for confident recoveries of heavily loaded vehicles

  • Two integrated LED pod mounts – included slotted mounting tabs give tons of adjustment to fit a variety of lights

  • Integrated license plate mount

  • Integrated turn signal cut outs

  • Optional heavy duty grill and headlight tubing for added protection
